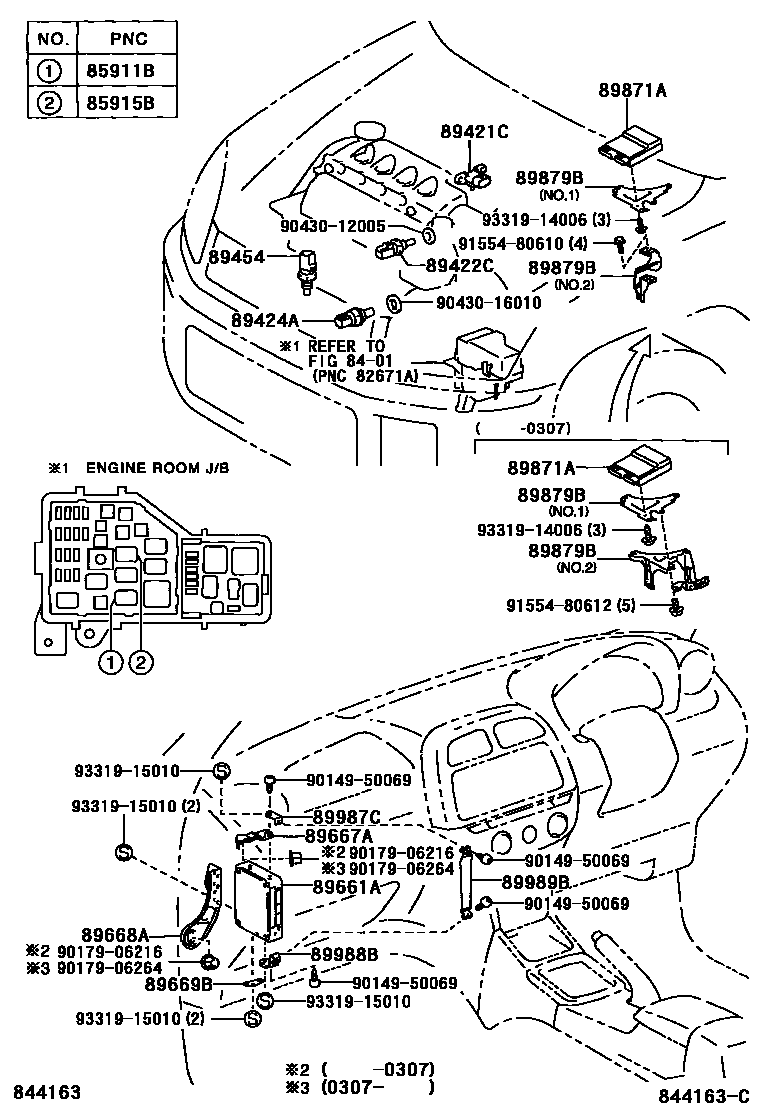

ELECTRONIC CONTROLED DIESEL (ECD)
8401
85911BRELAY, COMPUTER (FOR DIESEL TURBO)
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89454SENSOR, FUEL TEMPERATURE
89661ACOMPUTER, ENGINE CONTROL
PART NUMBER LABEL=89661-42780
PART NUMBER LABEL=89661-42B50
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3
89879BBRACKET, INJECTOR DRIVER
NO.1
NO.2
NO.1
NO.2
89987CBRACKET, COMPUTER, NO.1
89988BBRACKET, COMPUTER, NO.2
89989BBRACKET, COMPUTER, NO.3
9014950069
main90149-50069
9017906216
main90179-06216
9017906264
main90179-06264
9043012005
main90430-12005
9043016010
main90430-16010
9155480610
main91554-80610
9155480612
main91554-80612
9331914006
main93319-14006
9331915010
main93319-15010
25 parts on this diagram · 2 diagrams in section
