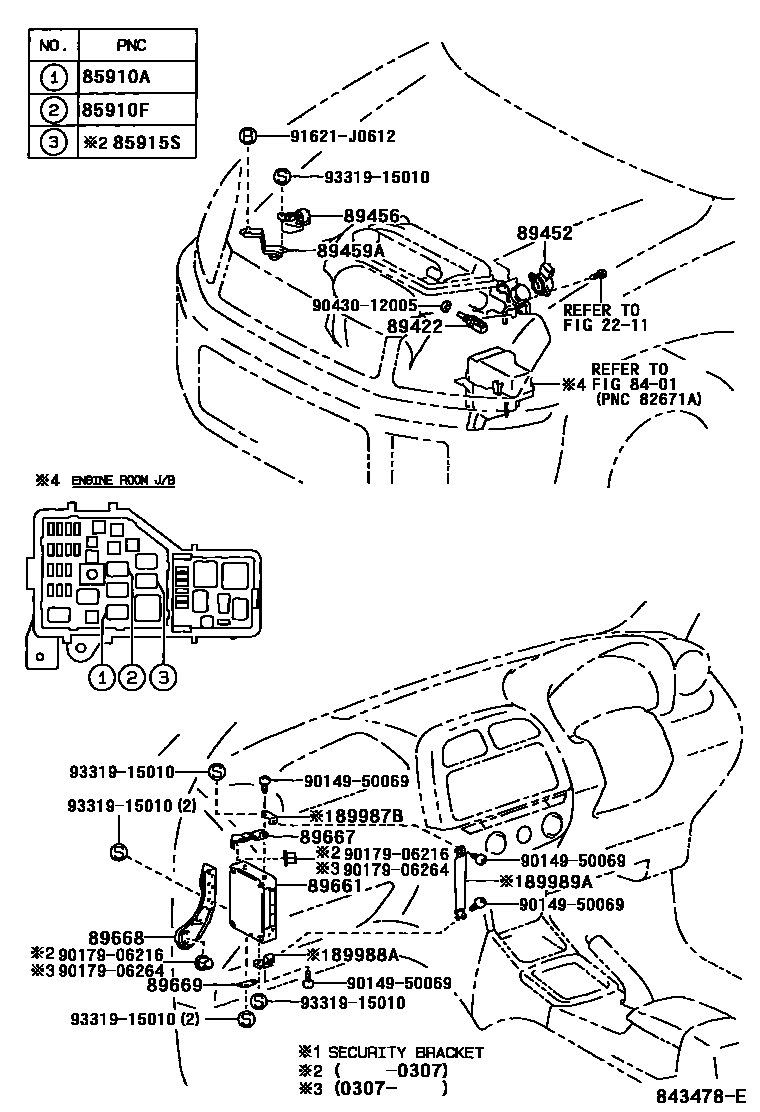

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

2211

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iACA2#,ZCA2#200005-200307

main90987-02027iACA2#,ZCA2#200307

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iACA2#,ZCA2#200005-200307

main90987-02027iACA2#,ZCA2#200307

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02012iACA2#..ARL,EUR,GCC200005-200307

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iACA2#..ARL,EUR,GCC200307

main89422-35010iACA2#,ZCA2#200005-200307

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZCA2#200005-200307

main89452-33030iACA2#200005-200307

89456RESISTOR, VARIABLE

main89456-30010iACA2#..GCC,GEN200008-200307

89459ABRACKET, VARIABLE RESISTOR

main89459-42020iACA2#..GCC,GEN200008-200307

89661COMPUTER, ENGINE CONTROL

main89661-42670iACA2#..MTM..EUR200005-200110

PART NUMBER LABEL=89661-42670

sub89661-42671

main89661-42671iACA2#..MTM..EUR200110-200202

PART NUMBER LABEL=89661-42671

sub89661-42672

main89661-42672iACA2#..MTM..EUR200202-200208

PART NUMBER LABEL=89661-42672

sub89661-42673

main89661-42673iACA2#..MTM..EUR200208-200307

PART NUMBER LABEL=89661-42673

main89661-42680iACA2#..ATM..EUR200005-200110

PART NUMBER LABEL=89661-42680

sub89661-42681

main89661-42681iACA2#..ATM..EUR200110-200202

PART NUMBER LABEL=89661-42681

sub89661-42682

main89661-42682iACA2#..ATM..EUR200202-200208

PART NUMBER LABEL=89661-42682

sub89661-42683

main89661-42683iACA2#..ATM..EUR200208-200307

PART NUMBER LABEL=89661-42683

main89661-42690iACA2#..MTM..ARL200005-200105

sub89661-42691

main89661-42691iACA2#..MTM..ARL200105-200208

sub89661-42692

main89661-42692iACA2#..MTM..ARL200208-200307

main89661-42700iACA2#..ATM..ARL200005-200105

sub89661-42701

main89661-42701iACA2#..ATM..ARL200105-200208

sub89661-42702

main89661-42702iACA2#..ATM..ARL200208-200307

main89661-42710iACA2#..MTM..GEN200201-200307

PART NUMBER LABEL=89661-42710

main89661-42710iACA2#..MTM..(GCC,GEN)200008-200201

main89661-42720iACA21..ATM..GEN200108-200307

PART NUMBER LABEL=89661-42720

main89661-42720iACA2#..ATM..(GCC,GEN)200008-200107

main89661-42730iZCA2#200005-200307

PART NUMBER LABEL=89661-42730

main89661-42750iACA2#..MTM..(EUR,GCC)200005-200209

PART NUMBER LABEL=89661-42750

sub89661-42751

main89661-42751iACA2#..LHD..MTM..GEN;ACA2#..MTM..(EUR,GCC)200209-200307

PART NUMBER LABEL=89661-42751

main89661-42760iACA2#..ATM..EUR200005-200209

PART NUMBER LABEL=89661-42760

sub89661-42761

main89661-42761iACA2#..ATM..(EUR,GCC)200209-200307

PART NUMBER LABEL=89661-42761

main89661-42770iZCA2#200005-200307

PART NUMBER LABEL=89661-42770

main89661-42A20iACA20,21..MTM..EUR200307-200401

PART NUMBER LABEL=89661-42A20

sub89661-42A21

main89661-42A21iACA20,21..MTM..EUR200401-200406

PART NUMBER LABEL=89661-42A21

sub89661-42A22

main89661-42A22iACA20,21..MTM..EUR200407

main89661-42A30iACA20,21..RHD..ATM..EUR200307-200406

PART NUMBER LABEL=89661-42A30

sub89661-42A31

main89661-42A31iACA20,21..RHD..ATM..EUR200407

main89661-42A40iACA20,21..MTM..(EUR,GCC)200307-200401

PART NUMBER LABEL=89661-42A40

sub89661-42A41

main89661-42A41iACA20,21..MTM..(EUR,GCC)200401

PART NUMBER LABEL=89661-42A41

main89661-42A50iACA20,21..ATM..(EUR,GCC)200307

PART NUMBER LABEL=89661-42A50

main89661-42B10iACA22,23..MTM200307-200406

PART NUMBER LABEL=89661-42B10

sub89661-42B11

main89661-42B11iACA22,23..MTM200407

PART NUMBER LABEL=89661-42B11

main89661-42B20iACA22,23..ATM200307-200406

PART NUMBER LABEL=89661-42B20

sub89661-42B21

main89661-42B21iACA22,23..ATM200407

PART NUMBER LABEL=89661-42B21

main89661-42B30iACA20,21..LHD..ATM..EUR200307-200406

PART NUMBER LABEL=89661-42B30

sub89661-42B31

main89661-42B31iACA20,21..LHD..ATM..EUR200407

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-42030iACA2#,ZCA2#..RHD200005-200307

main89667-42040iACA2#,ZCA2#..LHD200005-200307

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42030iACA2#,ZCA2#..RHD200005-200307

main89668-42040iACA2#,ZCA2#..LHD200005-200307

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-42040iACA2#,ZCA2#200005-200307

89987BBRACKET, COMPUTER, NO.1

main89987-42010iACA2#,ZCA2#..RHD..EUR200005-200307

89988ABRACKET, COMPUTER, NO.2

main89988-42010iACA2#..RHD..EUR200005-200307

main89988-42020iZCA2#..RHD200005-200307

main89988-42040iACA20,21..RHD..EUR200307

89989ABRACKET, COMPUTER, NO.3

main89989-42010iACA2#,ZCA2#..RHD..EUR200005-200307

main89989-42020iACA20,21..RHD..EUR200307

9014950069

main90149-50069

9017906216

main90179-06216

9017906264

main90179-06264

9043012005

main90430-12005

91621J0612

main91621-J0612

9331915010

main93319-15010

22 parts on this diagram · 4 diagrams in section
