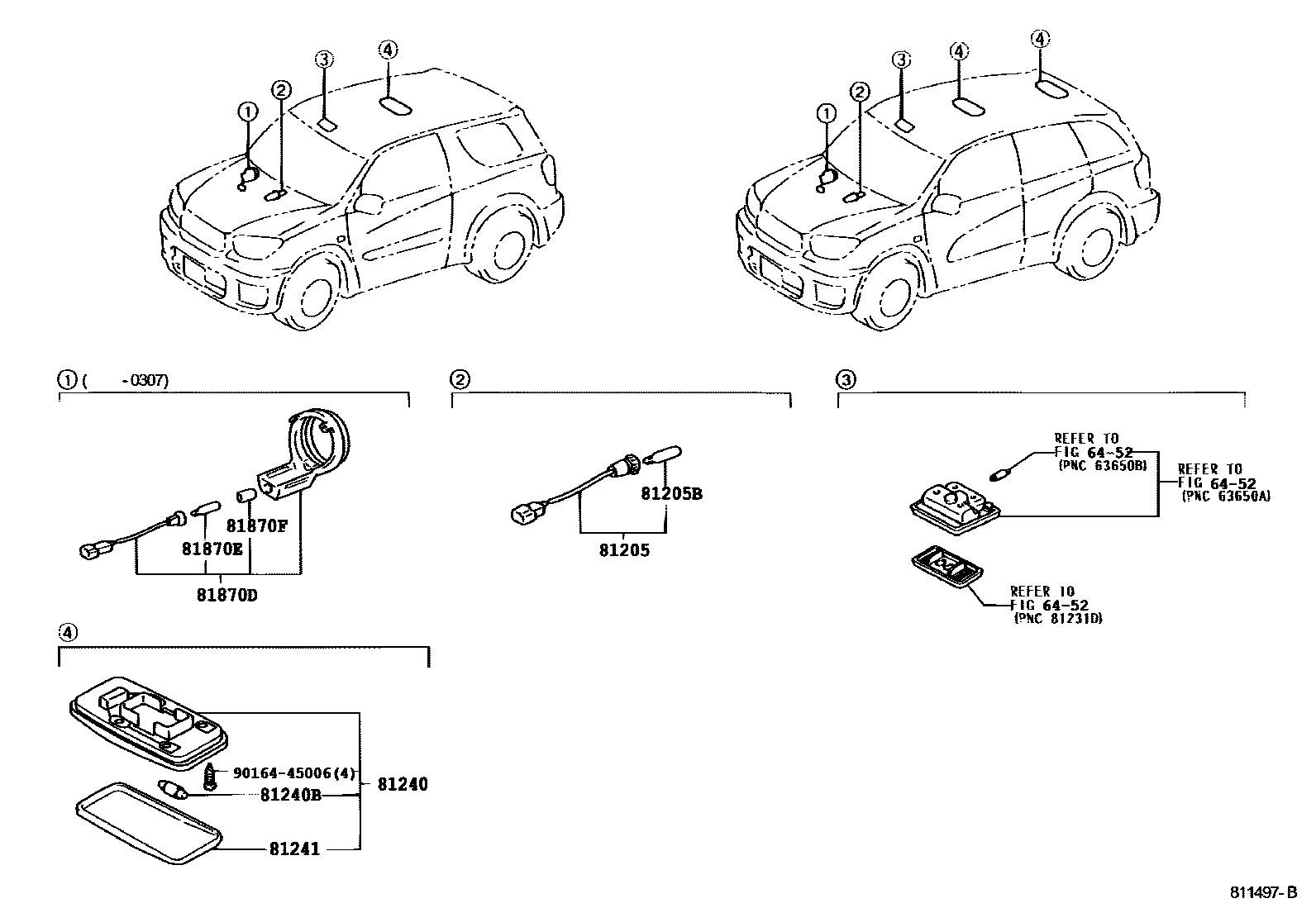

INTERIOR LAMP

6452

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-28041iACA2#,CLA2#,ZCA2#200005-200409

sub81850-42010

main81850-42010iACA2#,CLA2#,ZCA2#200409

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iACA2#,CLA2#,ZCA2#200005-200511

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B1iACA20,CLA20,ZCA25200005-200307

LT.BLUISH GRAY,TRIM14,15

sub81240-12060

main81240-12060-B1iACA20,CLA20,ZCA25200005-200307

LT.BLUISH GRAY,TRIM1#

sub81240-12060

main81240-12060-P2iACA20,22,CLA20,ZCA25200307-200511

NEW GRAY,TRIM1#

sub81240-12060

81240BBULB, ROOM LAMP, NO.1

main90981-14011iACA20,CLA20,ZCA25200005-200307

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iACA20,CLA20,ZCA25200005-200307

81870DLAMP ASSY, KEY CYLINDER

main81870-42010iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN200005-200404

81870EBULB, KEY CYLINDER LAMP

main90981-11014iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN200005-200404

14V 1.4W

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN200005-200404

9016445006

main90164-45006

10 parts on this diagram · 1 diagram in section
