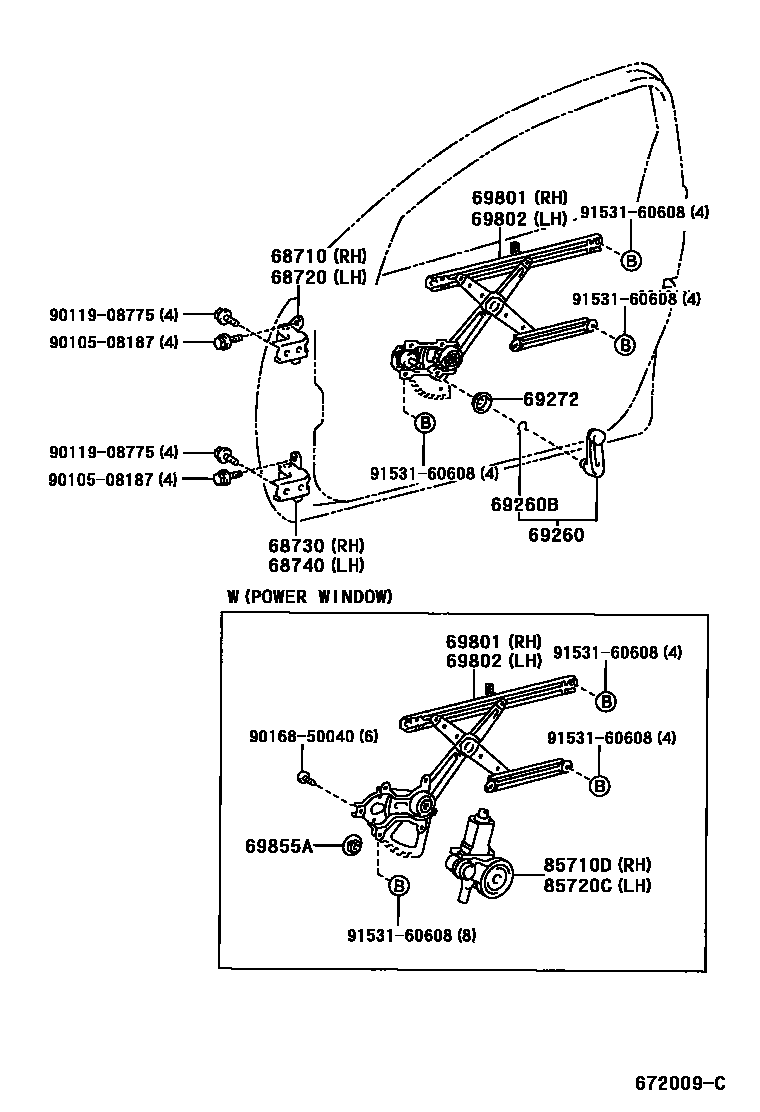

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30160iACA2#,CLA2#,ZCA2#200005-200511

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30080iACA2#,CLA2#,ZCA2#200005-200511

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33010iACA2#,CLA2#,ZCA2#200005-200511

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33010iACA2#,CLA2#,ZCA2#200005-200511

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-52030-B3iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub69260-52030

main69260-52030-B3iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub69260-52030

main69260-52040-B2iACA2#,CLA2#,ZCA2#..EUR200005-200307

BLUE GRAY,TRIM14,15

sub69260-52040

main69260-52040-B2iACA2#..RHD..GEN200008-200307

SOUTH AFRICA SPEC,BLUE GRAY,TRIM14,15

sub69260-52040

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iACA2#,CLA2#,ZCA2#200005-200307

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020iACA2#,CLA2#,ZCA2#200005-200307

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-42050iACA21,23,CLA21,ZCA26200005-200307

W(POWER WINDOW)

main69801-42060iACA20,CLA20,ZCA25200005-200307

W(POWER WINDOW)

main69810-42170iACA21,CLA21,ZCA26200005-200307

main69810-42200iACA20,CLA20,ZCA25200005-200307

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-42050iACA21,23,CLA21,ZCA26200005-200307

W(POWER WINDOW)

main69802-42060iACA20,CLA20,ZCA25200005-200307

W(POWER WINDOW)

main69820-42170iACA21,CLA21,ZCA26200005-200307

main69820-42200iACA20,CLA20,ZCA25200005-200307

69855ACOVER, DOOR WINDOW REGULATOR GEAR

main69855-20010iACA2#,CLA2#,ZCA2#200005-200307

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-42070iACA20,21,CLA2#,ZCA2#..LHD200005-200307

main85710-42080iACA21,CLA21,ZCA26..RHD200005-200307

main85710-42090iACA20,CLA20,ZCA25..RHD200005-200307

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-32150iACA2#,CLA2#,ZCA2#..RHD200005-200307

main85720-42070iACA21,CLA21,ZCA26..LHD200005-200307

main85720-42080iACA20,CLA20,ZCA25..LHD200005-200307

9010508187

main90105-08187

9011908775

main90119-08775

9016850040

main90168-50040

9153160608

main91531-60608

16 parts on this diagram · 2 diagrams in section
