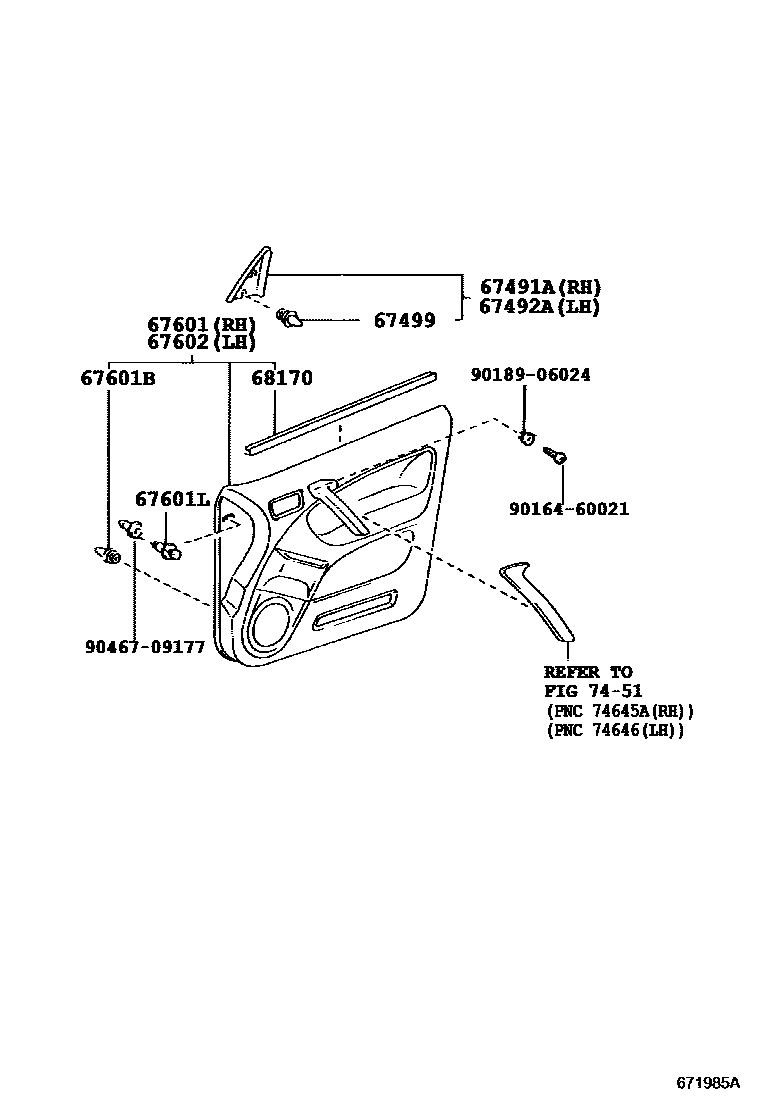

FRONT DOOR PANEL & GLASS

0001 15 DOOR 0002 1 0003 13 DOOR 0004 1 0005 1 0006 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-42030iACA2#,CLA2#,ZCA2#200005-200307

sub67491-42040

main67491-42040iACA20,21,CLA2#,ZCA2#..EUR200307

W(TWEETER SPEAKER)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-42030iACA2#,CLA2#,ZCA2#200005-200307

sub67492-42040

main67492-42040iACA20,21,CLA2#,ZCA2#..EUR200307

W(TWEETER SPEAKER)

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-17020iACA21,CLA21,ZCA26200005-200307

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-42530-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM14

main67610-42530-B1iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM15

main67610-42540-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM14

main67610-42540-B1iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM15

main67610-42550-B0iACA21..ARL200005-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67610-42560-B0iACA21..ARL200005-200307

DOOR TRIM=TYPE B-*104,BLUE GRAY,TRIM1#

main67610-42570-B0iACA20,CLA20,ZCA25200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM14

main67610-42570-B1iACA20,CLA20,ZCA25200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM15

main67610-42580-B0iACA20,CLA20,ZCA25200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM14

main67610-42580-B1iACA20,CLA20,ZCA25200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM15

main67610-42590-B1iACA21,CLA21,ZCA26..EUR,GCC200005-200307

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67610-42600-B1iACA20,CLA20,ZCA25..EUR,GCC200005-200307

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67610-42610-B0iACA21,23,CLA21,ZCA26200307-200511

W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-42650-B0iACA21,CLA21,ZCA26..EUR,GCC200307-200511

LEATHER TRIM & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-42660-B0iACA20,22,CLA20,ZCA25200307-200511

W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-42670-B0iACA20,CLA20,ZCA25200307-200511

LEATHER TRIM & W(POWER WINDOW),DK.GRAY,TRIM1#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-09206iACA21,CLA21,ZCA26200005-200511

67601LCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-06133-B7iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub90467-06133

main90467-06133-B7iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub90467-06133

main90467-06133-B8iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

sub90467-06133

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-42530-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM14

main67620-42530-B1iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM15

main67620-42540-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM14

main67620-42540-B1iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM15

main67620-42550-B0iACA21..ARL200005-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67620-42560-B0iACA21..ARL200005-200307

DOOR TRIM=TYPE B-*104,BLUE GRAY,TRIM1#

main67620-42570-B0iACA20,CLA20,ZCA25200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM14

main67620-42570-B1iACA20,CLA20,ZCA25200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM15

main67620-42580-B0iACA20,CLA20,ZCA25200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM14

main67620-42580-B1iACA20,CLA20,ZCA25200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM15

main67620-42590-B1iACA21,CLA21,ZCA26..EUR,GCC200005-200307

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67620-42600-B1iACA20,CLA20,ZCA25..EUR,GCC200005-200307

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67620-42610-B0iACA21,23,CLA21,ZCA26200307-200511

W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-42650-B0iACA21,CLA21,ZCA26..EUR,GCC200307-200511

LEATHER TRIM & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-42660-B0iACA20,22,CLA20,ZCA25200307-200511

W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-42670-B0iACA20,CLA20,ZCA25200307-200511

LEATHER TRIM & W(POWER WINDOW),DK.GRAY,TRIM1#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-42030iACA20,CLA20,ZCA25200005-200511

RH

main68171-42040iACA21,23,CLA21,ZCA26200005-200511

RH

main68172-42030iACA20,22,CLA20,ZCA25200005-200511

LH

main68172-42040iACA21,23,CLA21,ZCA26200005-200511

LH

7451

9016460021

main90164-60021

9018906024

main90189-06024

9046709177

main90467-09177

12 parts on this diagram · 6 diagrams in section
