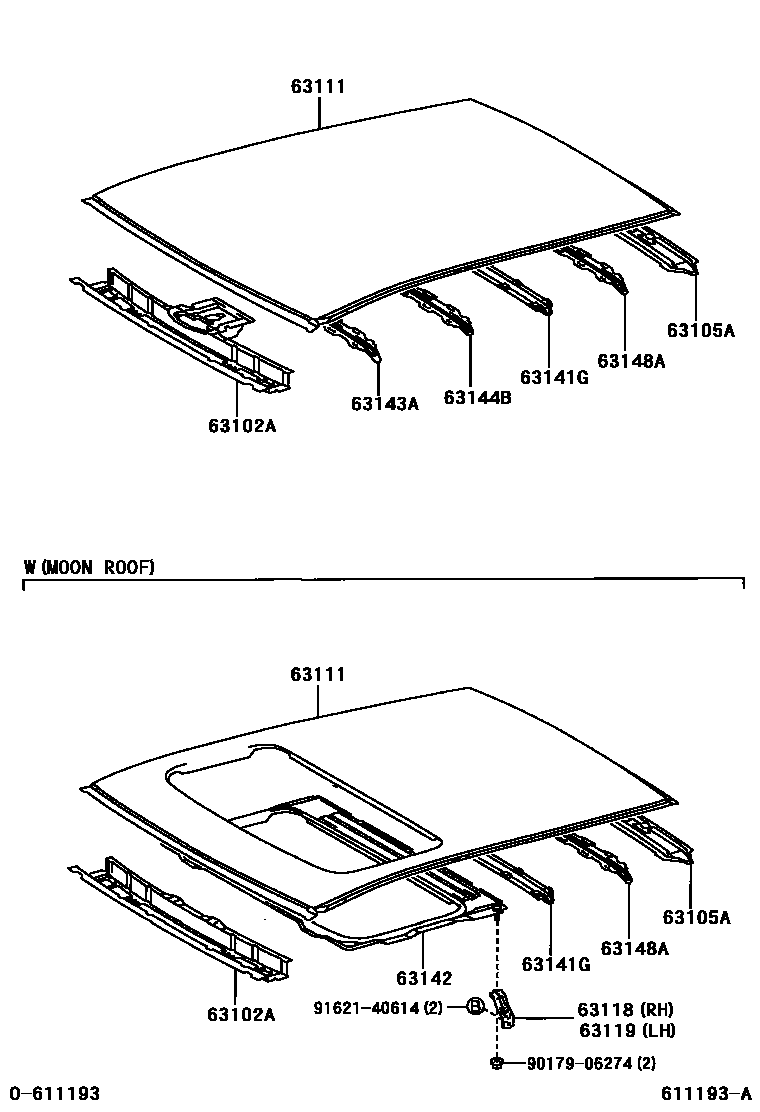

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL, 3DOOR 0002 1ROOF PANEL, 5DOOR 0003 1MOON ROOF 0004 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42010iACA2#,CLA2#,ZCA2#200005-200307

main63102-42020iACA2#,CLA2#,ZCA2#200005-200307

W(MOON ROOF)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42010iACA20,ZCA25;ACA21..GCC,GEN;ACA21,ZCA26..LHD..MTM..EUR200005-200307

main63105-42020iACA21,CLA21,ZCA26..ARL,EUR200005-200307

W(3 POINT REAR SEAT BELT)

63111PANEL, ROOF

main63111-42070iACA20,CLA20,ZCA25200005-200307

main63111-42080iACA20,CLA20,ZCA25200005-200307

W(MOON ROOF)

main63111-42110iACA21,23,CLA21,ZCA26200005-200307

main63111-42120iACA21,CLA21,ZCA26200005-200307

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-42020iACA20,CLA20,ZCA25200005-200307

main63118-42030iACA21,CLA21,ZCA26200005-200307

main63118-42040iACA20,22,CLA20,ZCA25200307

main63118-42050iACA21,23,CLA21,ZCA26200307

63119SUPPORT, ROOF PANEL, LH

main63118-42020iACA20,CLA20,ZCA25200005-200307

main63118-42030iACA21,CLA21,ZCA26200005-200307

main63118-42040iACA20,22,CLA20,ZCA25200307

main63118-42050iACA21,23,CLA21,ZCA26200307

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-42030iACA20,22,CLA20,ZCA25200005-200307

main63141-42040iACA20,CLA20,ZCA25200005-200307

W(MOON ROOF)

main63141-42050iACA21,CLA21,ZCA26200005-200303

sub63141-42051

main63141-42051iACA21,CLA21,ZCA26200303-200307

main63141-42060iACA21,23,CLA21,ZCA26200005-200307

W(MOON ROOF)

main63141-42070iACA21,23,CLA21,ZCA26200307

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-42010iACA20,CLA20,ZCA25200005-200307

main63142-42900iACA21,CLA21,ZCA26200005-200307

63143AREINFORCEMENT, ROOF PANEL

main63143-42040iACA2#,CLA2#,ZCA2#200005-200307

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42020iACA2#,CLA2#,ZCA2#200005-200303

sub63144-42021

main63144-42021iACA2#,CLA2#,ZCA2#200303-200307

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-42020iACA20,22,CLA20,ZCA25200005-200307

9017906274

main90179-06274

9162140614

main91621-40614

12 parts on this diagram · 4 diagrams in section
