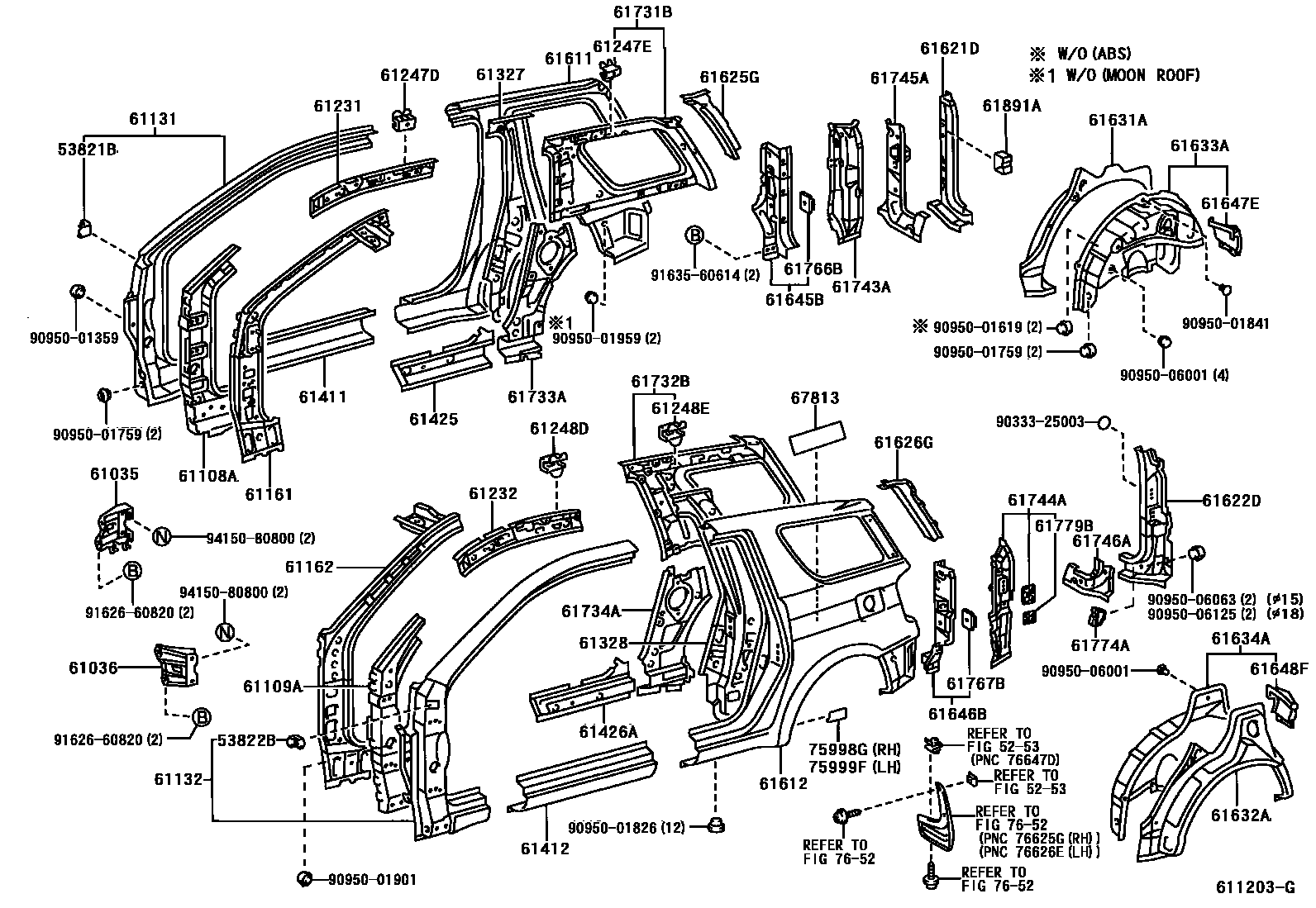

SIDE MEMBER

0001 13 DOOR 0002 15 DOOR 0003 13 DOOR 0004 15 DOOR

5253

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iACA2#,CLA2#,ZCA2#¥280200005-200307

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iACA2#,CLA2#,ZCA2#¥280200005-200307

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-42020iACA2#,CLA2#,ZCA2#¥3,110200005-200307

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-42020iACA2#,CLA2#,ZCA2#¥3,110200005-200307

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-42050iACA2#,CLA2#,ZCA2#¥11,900200005-200307

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-42050iACA2#,CLA2#,ZCA2#¥11,900200005-200307

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61110-42110iACA20..RHD..(ARL,GEN)¥21,200200005-200307

W(FRONT PILLAR ANTENNA)

main61110-42110iACA22¥21,200200307

main61110-42120iACA20,CLA20,ZCA25¥21,200200005-200307

main61110-42160iACA21..RHD..GEN¥24,500200005-200401

main61110-42170iACA21..RHD..GEN¥24,500200005-200307

W(FRONT PILLAR ANTENNA)

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61120-42110iACA20,22,CLA20,ZCA25..ARL,EUR¥21,200200005-200401

main61120-42120iACA20..GCC¥21,200200008-200307

W(FRONT PILLAR ANTENNA)

main61120-42140iACA21..RHD;ACA21..LHD..EUR;ACA23,CLA21,ZCA26¥24,500200005-200401

main61120-42150iACA21..LHD..(GCC,GEN)¥24,500200008-200307

W(FRONT PILLAR ANTENNA)

61161PILLAR, FRONT BODY, UPPER INNER RH

main61023-42090iACA2#,CLA2#,ZCA2#¥21,200200005-200307

main61023-42100iACA2#,CLA2#,ZCA2#¥21,200200307-200511

61162PILLAR, FRONT BODY, UPPER INNER LH

main61024-42090iACA2#,CLA2#,ZCA2#¥21,200200005-200307

main61024-42100iACA2#,CLA2#,ZCA2#¥21,200200307-200511

61231RAIL, ROOF SIDE, INNER RH

main61231-42080iACA20,CLA20,ZCA25¥5,200200005-200307

main61231-42090iACA21,CLA21,ZCA26¥7,700200005-200307

main61231-42110iACA20,22,CLA20,ZCA25¥5,300200307

main61231-42120iACA21,23,CLA21,ZCA26¥7,600200307

61232RAIL, ROOF SIDE, INNER LH

main61232-42080iACA20,CLA20,ZCA25¥5,200200005-200307

main61232-42090iACA21,CLA21,ZCA26¥7,700200005-200307

main61232-42110iACA20,22,CLA20,ZCA25¥5,300200307

main61232-42120iACA21,23,CLA21,ZCA26¥7,600200307

61247DBRACKET, ASSIST GRIP, RH

main61247-42020iACA20,CLA20,ZCA25¥620200005-200307

main61247-42030iACA20,22,CLA20,ZCA25¥880200307

61247EBRACKET, ASSIST GRIP, NO.4 RH

main61247-42020iACA20,CLA20,ZCA25¥620200005-200307

61248DBRACKET, ASSIST GRIP, LH

main61247-42020iACA20,CLA20,ZCA25¥620200005-200307

main61247-42030iACA20,22,CLA20,ZCA25¥880200307

61248EBRACKET, ASSIST GRIP, NO.4 RH

main61247-42020iACA20,CLA20,ZCA25¥620200005-200307

61327REINFORCEMENT, CENTER BODY PILLAR, OUTER RH

main61303-42904iACA20,22,CLA20,ZCA25¥31,700200307

main61327-42900iACA20,CLA20,ZCA25¥11,800200005-200307

61328REINFORCEMENT, CENTER BODY PILLAR, OUTER LH

main61304-42904iACA20,22,CLA20,ZCA25¥31,700200307

main61328-42900iACA20,CLA20,ZCA25¥7,200200005-200307

61411PANEL, ROCKER, OUTER RH

main61411-42100iACA20,CLA20,ZCA25¥20,300200005-200307

main61411-42120iACA21,CLA21,ZCA26¥31,700200005-200307

61412PANEL, ROCKER, OUTER LH

main61412-42090iACA20,CLA20,ZCA25¥20,300200005-200307

main61412-42130iACA21,CLA21,ZCA26¥31,700200005-200307

61425REINFORCEMENT, ROCKER PANEL, NO.4 RH

main61425-42050iACA20,CLA20,ZCA25¥6,500200005-200307

61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH

main61426-42060iACA20,CLA20,ZCA25¥6,500200005-200307

61611PANEL, QUARTER, RH

main61610-42190iACA21,CLA21,ZCA26¥74,900200005-200307

main61610-42210iACA21,CLA21,ZCA26¥74,900200005-200307

W(QUARTER OUTSIDE MOULDING)

main61611-42140iACA20,CLA20,ZCA25¥74,900200005-200307

W(QUARTER OUTSIDE MOULDING)

main61611-42180iACA20,CLA20,ZCA25¥74,900200005-200307

61612PANEL, QUARTER, LH

main61620-42160iACA20,22,CLA20,ZCA25¥74,900200005-200307

W(QUARTER OUTSIDE MOULDING)

main61620-42210iACA20,22,CLA20,ZCA25¥74,900200005-200307

main61620-42230iACA21,CLA21,ZCA26¥74,900200005-200307

main61620-42250iACA21,23,CLA21,ZCA26¥74,900200005-200307

W(QUARTER OUTSIDE MOULDING)

61621DTROUGH, BACK DOOR OPENING, RH

main61621-42030iACA2#,CLA2#,ZCA2#¥8,700200005-200307

61622DTROUGH, BACK DOOR OPENING, LH

main61622-42030iACA2#,CLA2#,ZCA2#¥8,700200005-200307

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-42020iACA21,23,CLA21,ZCA26¥2,590200005-200307

main61625-42030iACA20,22,CLA20,ZCA25¥2,300200005-200307

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-42020iACA21,23,CLA21,ZCA26¥2,590200005-200307

main61626-42030iACA20,CLA20,ZCA25¥2,300200005-200307

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-42060iACA20,CLA20,ZCA25¥11,700200005-200307

main61631-42050iACA21,23,CLA21,ZCA26¥11,700200005-200307

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61606-42070iACA20,CLA20,ZCA25¥13,100200005-200307

main61606-42900iACA21,CLA21,ZCA26¥11,700200005-200307

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-42050iACA20,CLA20,ZCA25¥25,400200005-200307

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-42060iACA20,22,CLA20,ZCA25¥25,400200005-200307

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-42050iACA21,CLA21,ZCA26¥7,000200005-200307

main61645-42901iACA20,CLA20,ZCA25¥5,500200005-200307

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-42050iACA21,CLA21,ZCA26¥6,800200005-200307

main61646-42901iACA20,22,CLA20,ZCA25¥5,500200005-200307

61647EREINFORCEMENT, QUARTER PANEL, LOWER RH

main61647-42020iACA20,CLA20,ZCA25¥1,460200005-200307

61648FREINFORCEMENT, QUARTER PANEL, LOWER LH

main61648-42020iACA20,CLA20,ZCA25¥1,460200005-200307

61731BPANEL, ROOF SIDE, INNER RH

main61731-42900iACA21,CLA21,ZCA26¥20,100200005-200307

main61731-42901iACA20,CLA20,ZCA25¥20,100200005-200307

main61731-42902iACA21,23,CLA21,ZCA26¥12,100200307

main61731-42903iACA20,22,CLA20,ZCA25¥20,300200307

61732BPANEL, ROOF SIDE, INNER LH

main61732-42900iACA21,CLA21,ZCA26¥20,100200005-200307

main61732-42901iACA20,CLA20,ZCA25¥20,100200005-200307

main61732-42902iACA21,23,CLA21,ZCA26¥12,100200307

main61732-42903iACA20,22,CLA20,ZCA25¥12,100200307

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-42900iACA20,CLA20,ZCA25¥12,100200005-200307

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-42900iACA20,CLA20,ZCA25¥12,100200005-200307

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-42010iACA21,23,CLA21,ZCA26¥7,200200005-200307

main61743-42030iACA20,22,CLA20,ZCA25¥7,100200005-200307

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61744-42900iACA21,CLA21,ZCA26¥7,500200005-200307

main61744-42901iACA20,CLA20,ZCA25¥7,200200005-200307

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-42010iACA2#,CLA2#,ZCA2#¥6,800200005-200307

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-42010iACA2#,CLA2#,ZCA2#¥3,990200005-200307

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-42010iACA20,CLA20,ZCA25¥610200005-200307

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61766-42010iACA20,CLA20,ZCA25¥610200005-200307

61774APATCH, BACK DOOR OPENING, LOWER LH

main61774-42010iACA2#,CLA2#,ZCA2#¥1,190200005-200307

61779BPLATE, BACK DOOR OPENING, LOWER LH

main61779-42010iACA2#,CLA2#,ZCA2#¥480200005-200307

61891ARETAINER, BACK DOOR UPPER HINGE, RH

main61891-42010iACA20,CLA20,ZCA25¥2,300200005-200307

67813PAD, QUARTER PANEL SILENCER

main67812-42010iACA20,CLA20,ZCA25¥670200005-200307

75998GSTRIPE, QUARTER, LOWER RH

main75998-42010iACA21,CLA21,ZCA26..EUR¥1,270200005-200307

main75998-42020iACA20,CLA20,ZCA25..EUR¥2,840200005-200307

main75998-42030iACA20,CLA20,ZCA25..EUR¥2,840200005-200307

W(OVER FENDER)

75999FSTRIPE, QUARTER, LOWER LH

main75999-42010iACA21,CLA21,ZCA26..EUR¥1,270200005-200307

main75999-42020iACA20,CLA20,ZCA25..EUR¥2,840200005-200307

main75999-42030iACA20,CLA20,ZCA25..EUR¥2,840200005-200307

W(OVER FENDER)

7652

9033325003

main90333-25003¥70

9095001359

main90950-01359¥200

9095001619

main90950-01619¥360

9095001759

main90950-01759¥120

9095001826

main90950-01826¥110

9095001841

main90950-01841¥110

9095001901

main90950-01901¥120

9095001959

main90950-01959¥120

9095006001

main90950-06001¥170

9095006063

main90950-06063¥120

9095006125

main90950-06125¥130

9162660820

main91626-60820¥130

9163560614

main91635-60614¥110

9415080800

main94150-80800¥90

68 parts on this diagram · 4 diagrams in section
