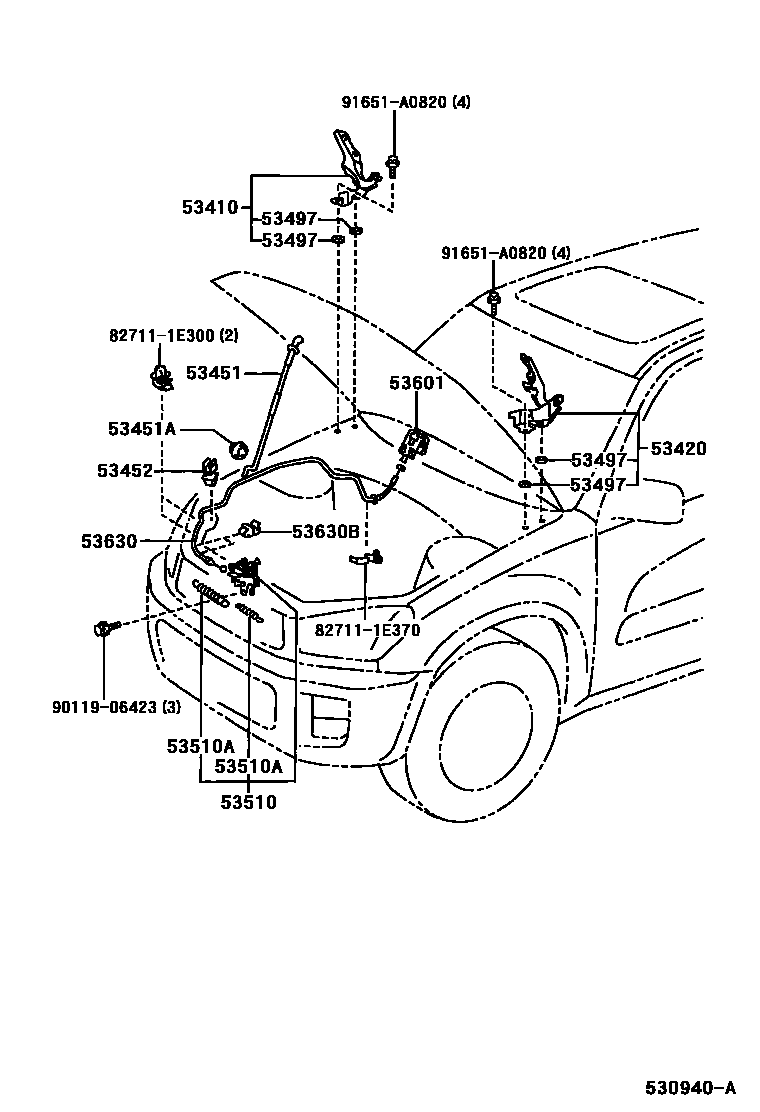

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-42030iACA2#,CLA2#,ZCA2#200005-200511

53420HINGE ASSY, HOOD, LH

main53420-42030iACA2#,CLA2#,ZCA2#200005-200511

53451ROD, HOOD SUPPORT

main53440-42010iACA2#,CLA2#,ZCA2#..RHD200005-200307

main53440-42020iACA2#,CLA2#,ZCA2#..LHD200005-200307

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iACA2#,CLA2#,ZCA2#200005-200307

53452HOLDER, HOOD STAY

main53452-90351iACA2#,CLA2#,ZCA2#200005-200307

53497PAD, HOOD HINGE, NO.1

main53497-12050iACA2#,CLA2#,ZCA2#200005-200307

T=1.0

sub53497-42010

main53497-42010iACA2#,CLA2#,ZCA2#200307

T=0.5

53510LOCK ASSY, HOOD

main53510-42050iACA2#,CLA2#,ZCA2#..RHD200005-200307

main53510-42060iACA2#,CLA2#,ZCA2#..LHD200005-200307

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iACA2#,CLA2#,ZCA2#..RHD200005-200307

WD=0.9,CW=20.5

main90506-09053iACA20,21,CLA2#,ZCA2#..LHD200005-200307

WD=0.9,CW=24.5

main90506-18080iACA2#,CLA2#,ZCA2#200005-200307

WD=1.8,CW=19

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub53601-52010

main53601-52010-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub53601-52010

main53601-52010-B3iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-42050iACA2#,CLA2#,ZCA2#..RHD200005-200307

main53630-42060iACA20,21,CLA2#,ZCA2#..LHD200005-200307

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-01009iACA2#,CLA2#,ZCA2#..RHD200005-200307

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906423

main90119-06423

91651A0820

main91651-A0820

15 parts on this diagram · 2 diagrams in section
