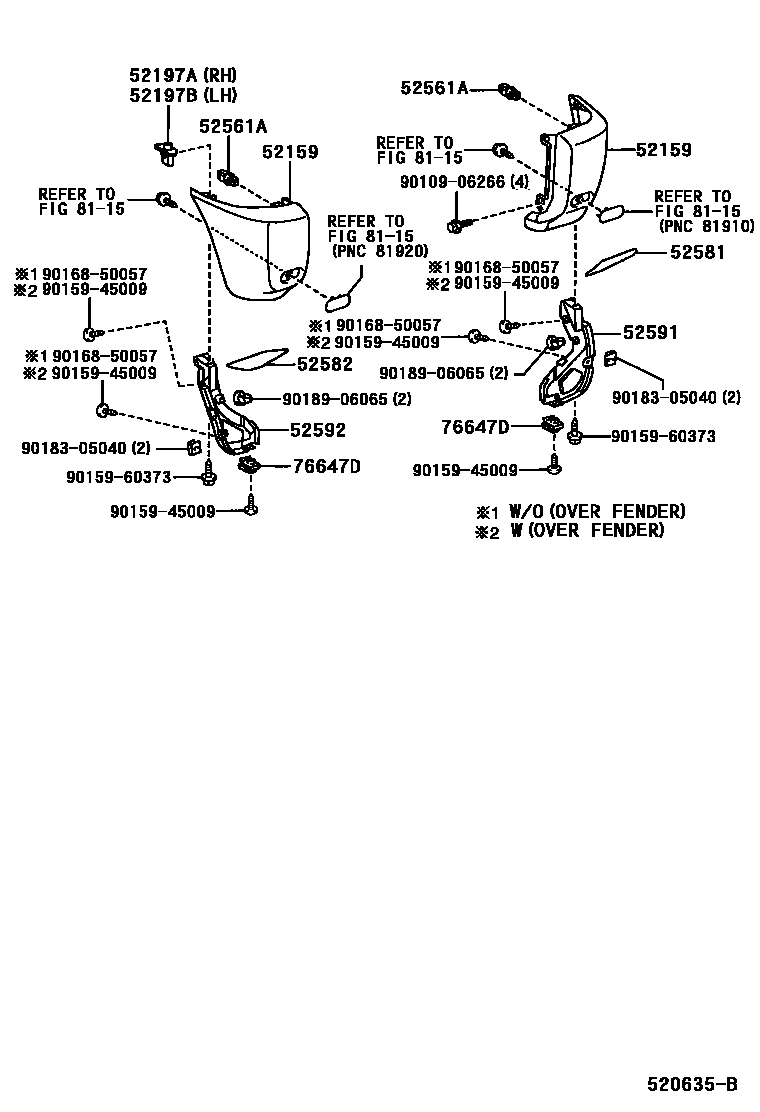

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52161-42902iACA21,CLA21,ZCA26200005-200511

RH

main52161-42903iACA21,CLA21200005-200511

W(OVER FENDER),RH

main52161-42907iACA20,22,CLA20,ZCA25200005-200511

RH

main52161-42908iACA20,22,CLA20,ZCA25200005-200511

W(OVER FENDER),RH

main52162-42902iACA21,CLA21,ZCA26200005-200511

LH

main52162-42903iACA21,CLA21200005-200511

W(OVER FENDER),LH

main52162-42907iACA20,22,CLA20,ZCA25200005-200511

LH

main52162-42908iACA20,CLA20,ZCA25200005-200511

W(OVER FENDER),LH

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-16020iACA2#,CLA2#,ZCA2#200005-200307

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-16020iACA2#,CLA2#,ZCA2#200005-200307

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-11063iACA2#,CLA2#,ZCA2#200005-200307

52581PROTECTOR, REAR BUMPER, RH

main52581-42020iACA20,CLA20,ZCA25200005-200307

52582PROTECTOR, REAR BUMPER, LH

main52582-42020iACA20,CLA20,ZCA25200005-200307

52591SEAL, REAR BUMPER SIDE, RH

main52591-42020iACA21,CLA21,ZCA26200005-200307

main52591-42030iACA20,CLA20,ZCA25200005-200307

52592SEAL, REAR BUMPER SIDE, LH

main52592-42020iACA21,23,CLA21,ZCA26200005-200307

main52592-42030iACA20,22,CLA20,ZCA25200005-200307

76647DRETAINER, FRONT FENDER LINER

main53879-14030iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN200005-200307

main76647-42010iACA2#,CLA2#,ZCA2#200005-200307

W(MUD GUARD)

8115

9010906266

main90109-06266

9015945009

main90159-45009

9015960373

main90159-60373

9016850057

main90168-50057

9018305040

main90183-05040

9018906065

main90189-06065

16 parts on this diagram · 2 diagrams in section
