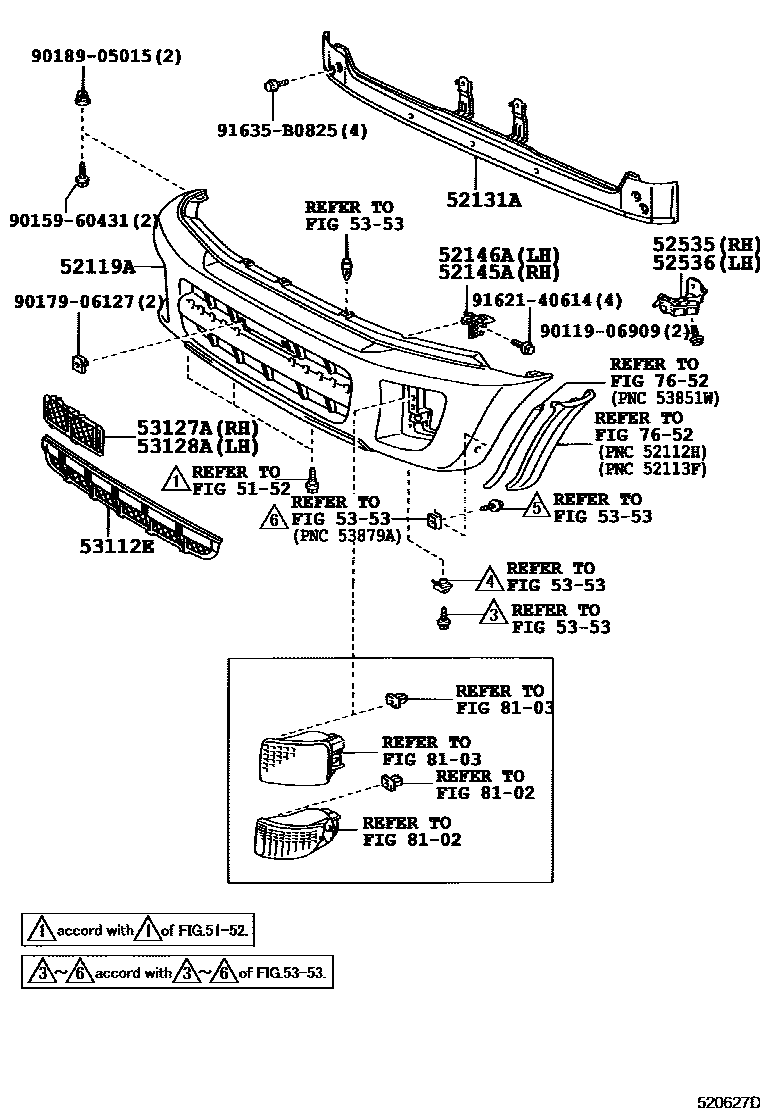

FRONT BUMPER & BUMPER STAY
5152
52119ACOVER, FRONT BUMPER
W(OVER FENDER)
W(HEADLAMP CLEANER)
W(HEADLAMP CLEANER & OVER FENDER)
UNPAINTED
TYPE A:REFER TO ILLUSTRATION & W(PAINTED BUMPER) & W/O(HEADLAMP CLEANER & OVER FENDER)
TYPE B:REFER TO ILLUSTRATION & W(OVER FENDE & PAINTED BUMPER) & W/O(HEADLAMP CLEANER)
TYPE A:REFER TO ILLUSTRATION & W(HEADLAMP CLEANER & OVER FENDER & PAINTED BUMPER)
TYPE A:REFER TO ILLUSTRATION & W(HEADLAMP CLEANER & PAINTED BUMPER) & W/O(OVER FENDER)
TYPE B:REFER TO ILLUSTRATION & W/O(HEADLAMP CLEANER & OVER FENDER)
52145ASTAY, FRONT BUMPER, NO.2 RH
52146ASTAY, FRONT BUMPER, NO.2 LH
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
53112EGRILLE, RADIATOR, LOWER NO.1
NO.2
NO.1
53127AGRILLE, RADIATOR, LOWER RH
53128AGRILLE, RADIATOR, LOWER LH
5353
7652
8102
8103
9011906909
main90119-06909
9015960431
main90159-60431
9017906127
main90179-06127
9018905015
main90189-05015
9162140614
main91621-40614
91635B0825
main91635-B0825
20 parts on this diagram · 2 diagrams in section
