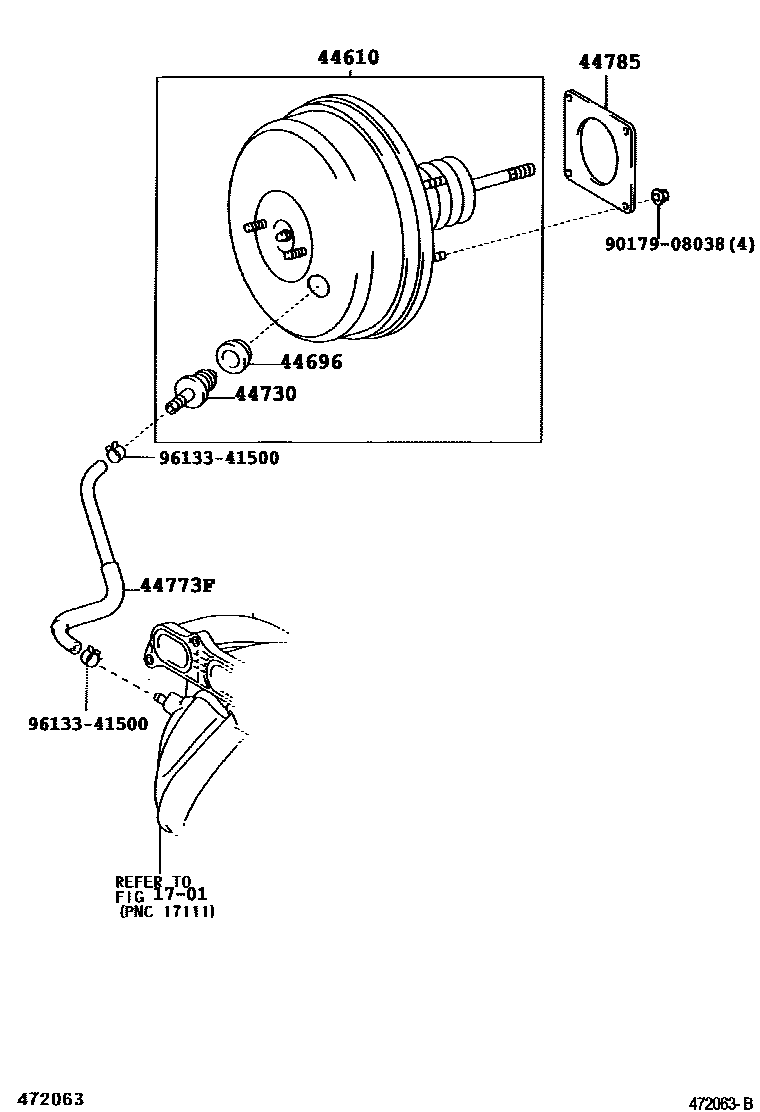

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1701

44610BOOSTER ASSY, BRAKE

main44610-42100iACA2#..RHD..(ARL,GEN)200005-200307

main44610-42110iACA2#..RHD..EUR200005-200307

main44610-42110iACA2#..RHD..GEN200008-200307

SOUTH AFRICA SPEC

main44610-42120iZCA2#..RHD200005-200303

sub44610-42121

sub44772-42041

main44610-42121iZCA2#..RHD200303-200307

main44610-42130iACA2#..LHD..(GCC,GEN)200008-200208

main44610-42131iACA20,21,ZCA2#..LHD200307

main44610-42140iACA20,21,ZCA2#..LHD..EUR200307

CHINA OR GERMANY SPEC

main44610-42140iACA2#,ZCA2#..LHD..EUR200005-200307

main44610-42150iCLA2#..RHD200105-200307

main44610-42160iCLA2#..LHD200105-200307

main44610-42160iCLA2#..LHD200307

GERMANY SPEC

main44610-42170iACA2#..LHD..(GCC,GEN)200208-200307

main44610-42200iCLA2#..LHD200307

main44610-42210iCLA2#..RHD200307

main44610-42220iACA20,21..RHD..EUR200307

main44610-42230iZCA2#..RHD200307

44696GROMMET, CHECK VALVE

main90480-24015iACA2#,ZCA2#..LHD200005-200307

main90480-24439iCLA2#;ACA2#,ZCA2#..RHD200005-200307

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12040iZCA2#..RHD200005-200303

main44730-12070iCLA2#..RHD200105-200307

main44730-14050iZCA2#..RHD200303-200307

main44730-20080iACA2#..RHD200005-200307

main44730-22150iCLA2#..LHD200105-200307

main44730-28030iACA2#,ZCA2#..LHD200305-200307

main44730-30010iACA2#,ZCA2#..LHD200005-200305

44773FHOSE, UNION TO CHECK VALVE

main44773-42100iACA2#..RHD200005-200307

main44773-42110iZCA2#..LHD200005-200307

main44773-42120iCLA2#..LHD200105-200307

44785GASKET, BRAKE BOOSTER

main44785-20020iACA2#,CLA2#,ZCA2#200005-200307

9017908038

main90179-08038

9613341500

main96133-41500

8 parts on this diagram · 6 diagrams in section
