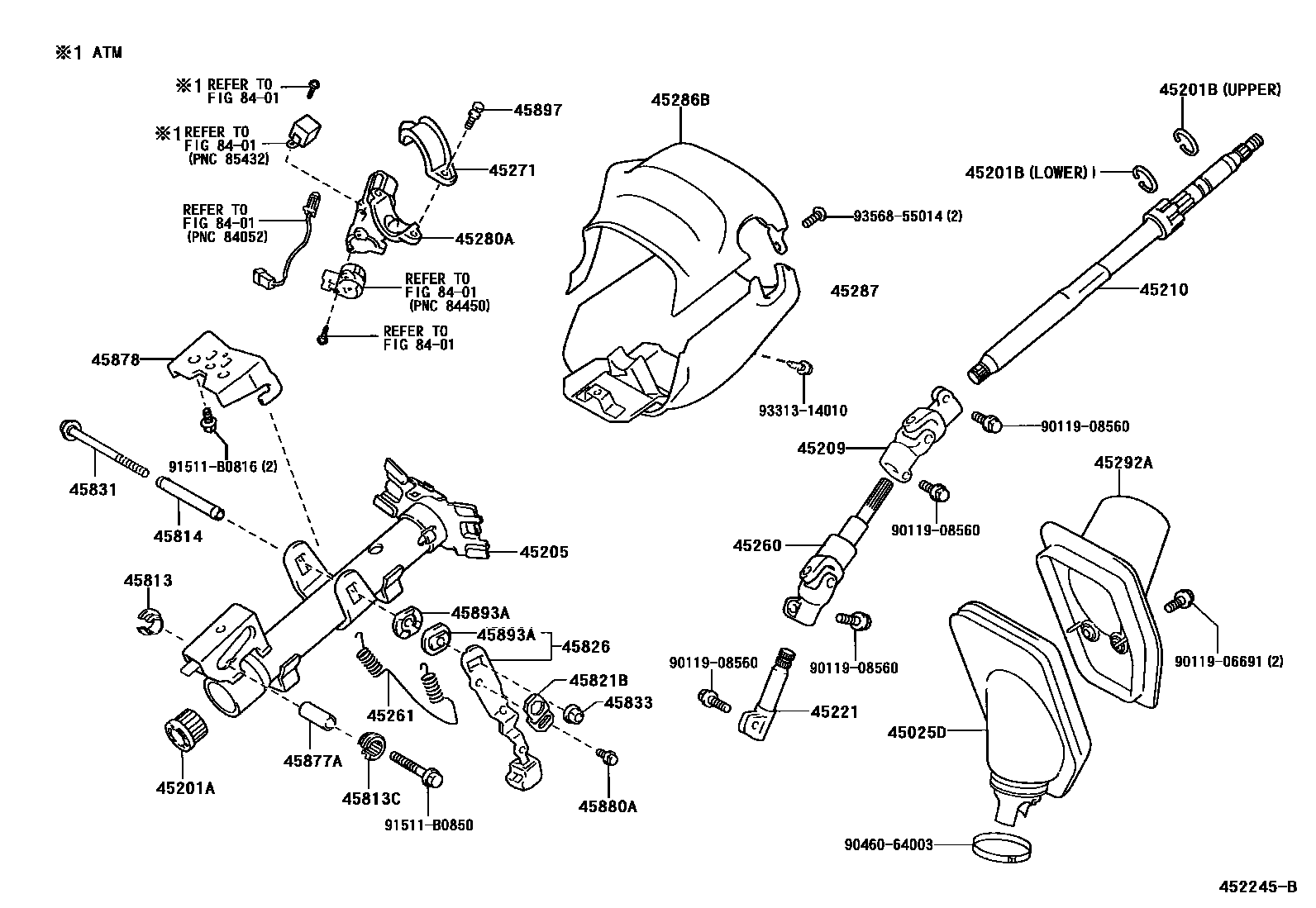

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42030iACA2#,CLA2#,ZCA2#..RHD¥3,250200005-200307

main45025-42040iACA2#,CLA2#,ZCA2#..LHD¥3,250200005-200307

main45025-42050iACA2#,CLA2#,ZCA2#..RHD¥3,270200307

main45025-42060iACA20,21,CLA2#,ZCA2#..LHD¥3,270200307

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-42010iACA2#,CLA2#,ZCA2#¥1,040200005-200307

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iACA2#,CLA2#,ZCA2#¥120200005-200307

T=1.20,LOWER

main90520-17269iACA2#,CLA2#,ZCA2#¥120200005-200307

T=1.20,UPPER

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-42050iACA2#,CLA2#,ZCA2#¥5,800200005-200307

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-17020iACA2#,CLA2#,ZCA2#¥7,500200005-200307

45210SHAFT ASSY, STEERING MAIN

main45210-42020iACA2#,CLA2#,ZCA2#¥22,900200005-200307

45221SHAFT, STEERING INTERMEDIATE

main45221-32120iACA2#,CLA2#,ZCA2#¥10,600200005-200307

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-42060iACA2#,CLA2#,ZCA2#..RHD¥14,700200005-200307

main45260-42070iACA20,21,CLA2#,ZCA2#..LHD¥14,700200005-200307

45261SPRING, TILT STEERING JUMP UP

main45261-20010iACA2#,CLA2#,ZCA2#¥280200005-200307

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iACA2#,CLA2#,ZCA2#¥520200005-200307

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42090iACA21,22,23..MTM..(ARL,GCC,GEN)¥16,600200005-200307

sub45280-42120¥16,600

main45280-42100iACA2#,CLA2#,ZCA2#..MTM..EUR¥16,600200005-200307

sub45280-42120¥16,600

main45280-42110iACA2#..ATM..(ARL,GCC,GEN)¥16,500200005-200307

sub45280-42120¥16,600

main45280-42120iACA20,21..ATM..EUR¥16,600200005-200307

45286BCOVER, STEERING COLUMN, UPR

main45286-42090iACA2#,CLA2#,ZCA2#¥2,810200005-200307

45287COVER, STEERING COLUMN, LWR

main45024-42010iACA2#,CLA2#,ZCA2#..EUR¥2,150200005-200305

sub45024-42011¥2,140

main45024-42011iACA2#,CLA2#,ZCA2#..ARL,EUR¥2,140200305-200307

main45287-42130iACA2#..ARL,GCC,GEN¥2,800200005-200305

sub45287-42131¥2,810

main45287-42131iACA2#..GCC,GEN¥2,810200305-200307

sub45024-42011¥2,140

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-42030iACA2#,CLA2#,ZCA2#..RHD¥1,450200005-200307

main45292-42040iACA2#,CLA2#,ZCA2#..LHD¥1,450200005-200307

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-52010iACA2#,CLA2#,ZCA2#¥120200005-200307

OD=24

45813CCOLLAR, TILT STEERING SUPPORT, NO.1

main45813-52020iACA2#,CLA2#,ZCA2#¥120200005-200307

45814COLLAR, TILT STEERING SUPPORT, NO.2

main45814-52010iACA2#,CLA2#,ZCA2#¥170200005-200307

OD=8

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-52010iACA2#,CLA2#,ZCA2#¥240200005-200307

45826LEVER, STEERING TILT

main45826-52011iACA2#,CLA2#,ZCA2#¥650200005-200307

45831BOLT, TILT LEVER LOCK, NO.1

main45831-52010iACA2#,CLA2#,ZCA2#¥320200005-200307

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-52010iACA2#,CLA2#,ZCA2#¥320200005-200307

45877ASPACER, STEERING COLUMN BRACKET

main45877-52010iACA2#,CLA2#,ZCA2#¥360200005-200307

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-52010iACA2#,CLA2#,ZCA2#¥1,070200005-200307

45880ABOLT(FOR STEERING TILT LEVER)

main45832-12010iACA2#,CLA2#,ZCA2#¥200200005-200307

45893ASTOPPER, TILT STEERING PAWL

main45893-52010iACA2#,CLA2#,ZCA2#¥320200005-200307

45897BOLT, STEERING LOCK SET

main45897-12020iACA2#,CLA2#,ZCA2#¥210200005-200307

8401

9011906691

main90119-06691¥70

9011908560

main90119-08560¥110

9046064003

main90460-64003¥270

91511B0816

main91511-B0816¥90

91511B0850

main91511-B0850¥190

9331314010

main93313-14010¥70

9356855014

main93568-55014¥70

34 parts on this diagram · 1 diagram in section
