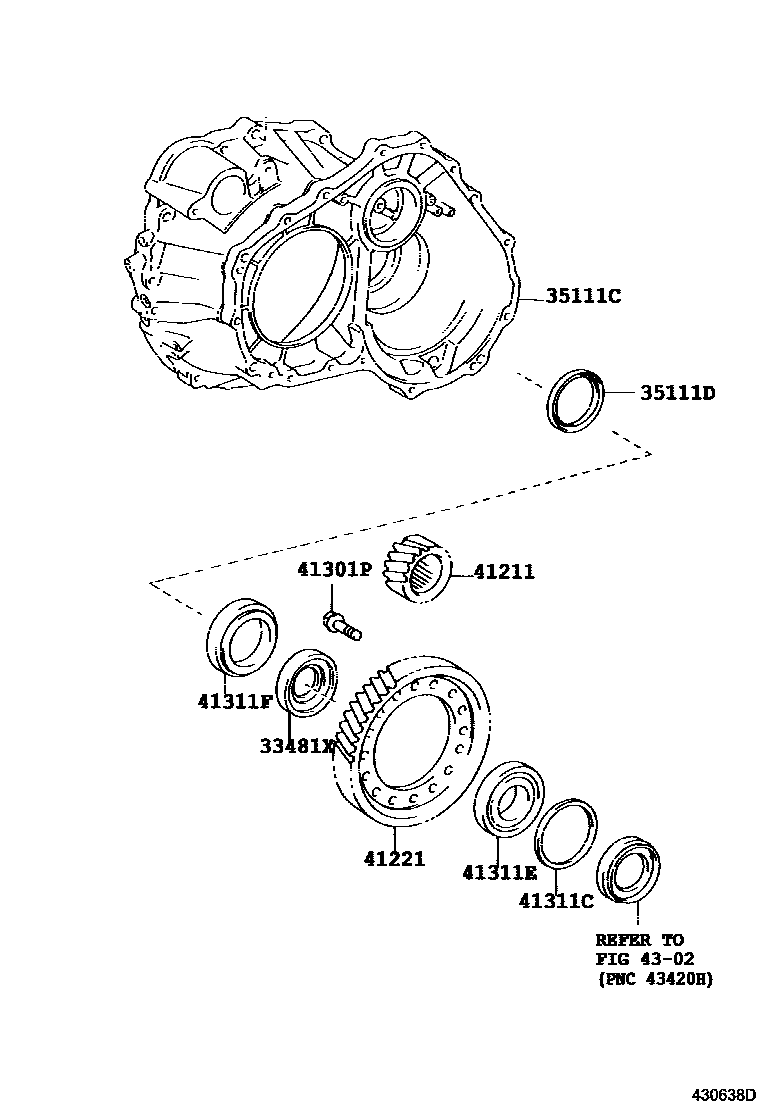

FRONT AXLE HOUSING & DIFFERENTIAL
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=35
N=35
N=32
33481XGEAR, SPEEDOMETER DRIVE
35111DSEAL, OIL (FOR TRANSAXLE HOUSING)
sub90311-62006
41211PINION, DIFFERENTIAL DRIVE
41221GEAR, FRONT DIFFERENTIAL RING
sub41221-12480
AISIN AI:REFER 33-01
AISIN AI:REFER TO ILLUSTRATION FIG.33-01
AISIN AI:REFER 33-01
AISIN AI:REFER TO ILLUSTRATION FIG.33-01
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
4302
12 parts on this diagram · 3 diagrams in section
