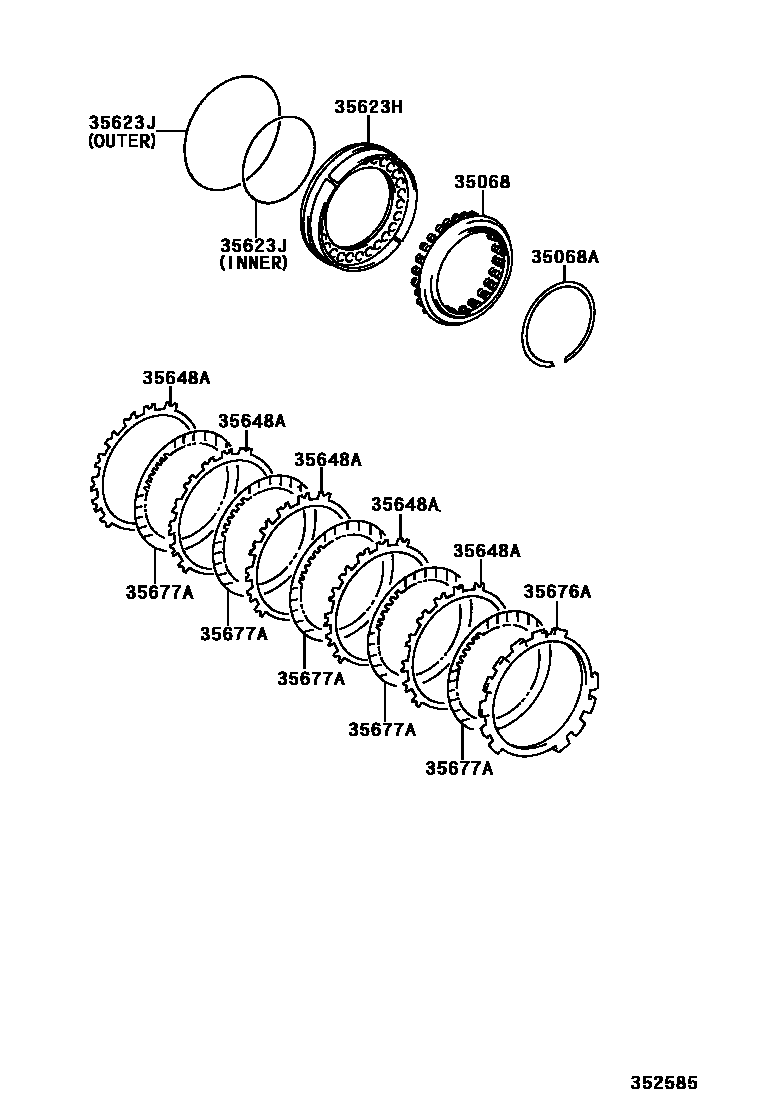

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iACA2#..ATM200005-200404

main35068-21011iACA2#..ATM200404

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iACA2#..ATM200005-200511

35623HPISTON, 1ST & REVERSE BRAKE

main35623-28020iACA2#..ATM200005-200307

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iACA2#..ATM200005-200511

INNER

main90301-99098iACA2#..ATM200005-200511

OUTER

sub90301-99134

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21011iACA2#..ATM200509

main35692-28010iACA2#..ATM200005-200508

sub35692-21011

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iACA2#..ATM200005-200307

T=1.8,MARK 1

main35678-21020iACA2#..ATM200005-200307

T=1.9,MARK 2

main35678-21030iACA2#..ATM200005-200307

T=2.0,MARK 3

main35678-21040iACA2#..ATM200005-200307

T=2.1,MARK 4

main35678-21050iACA2#..ATM200005-200307

T=2.2,MARK 5

main35678-21060iACA2#..ATM200005-200307

T=2.3,MARK 6

main35678-21070iACA2#..ATM200005-200307

T=2.4,MARK 7

main35678-21080iACA2#..ATM200005-200307

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-28010iACA2#..ATM200005-200307

7 parts on this diagram · 1 diagram in section
