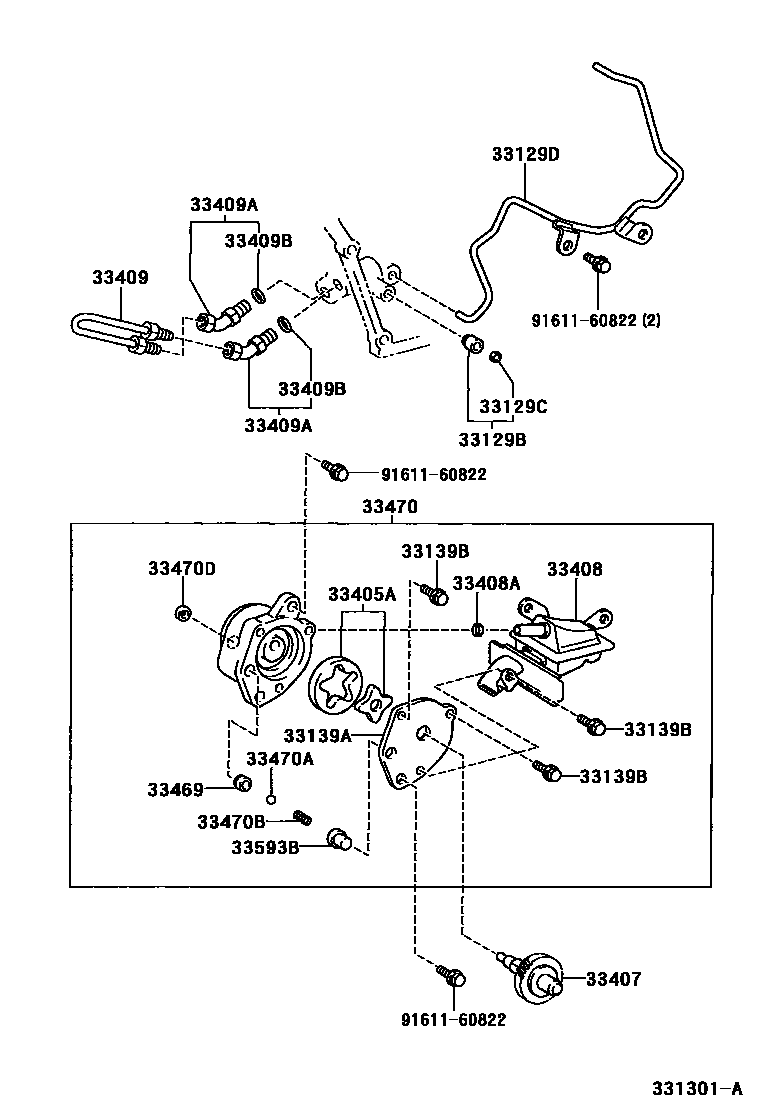

OIL PUMP, OIL COOLER & PIPE (MTM)

33129BPIPE, MANUAL TRANSMISSION OIL, NO.2

main33106-42010i200005-200511

33129CGASKET(FOR MANUAL TRANSMISSION OIL PIPE)

main90430-09004i200005-200511

33129DPIPE, TRANSMISSION OIL, NO.3

main33129-42020i200005-200511

33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)

main33139-20010i200005-200511

33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90119-06199i200005-200511

33405AROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP

main33405-20020i200005-200511

33407GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE

main33407-12021i200105-200511

main33407-12031i200005-200511

33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL

main33408-20011i200005-200511

33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19012i200005-200511

33409TUBE SUB-ASSY, MANUAL TRANSMISSION OIL COOLER

main33409-17010i200005-200511

33409AELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main90407-16017i200005-200511

33409BRING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)

main90301-11006i200005-200511

33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)

main33469-20010i200005-200511

33470PUMP ASSY, MANUAL TRANSMISSION OIL

main33470-12011i200005-200511

33470ABALL (FOR MANUAL TRANSMISSION OIL PUMP)

main90360-10003i200005-200511

33470BSPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)

main90501-08092i200005-200511

33470DGASKET (FOR MANUAL TRANSMISSION OIL PUMP)

main90430-09004i200005-200511

33593BHOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)

main33593-20010i200005-200511

9161160822

19 parts on this diagram · 1 diagram in section
