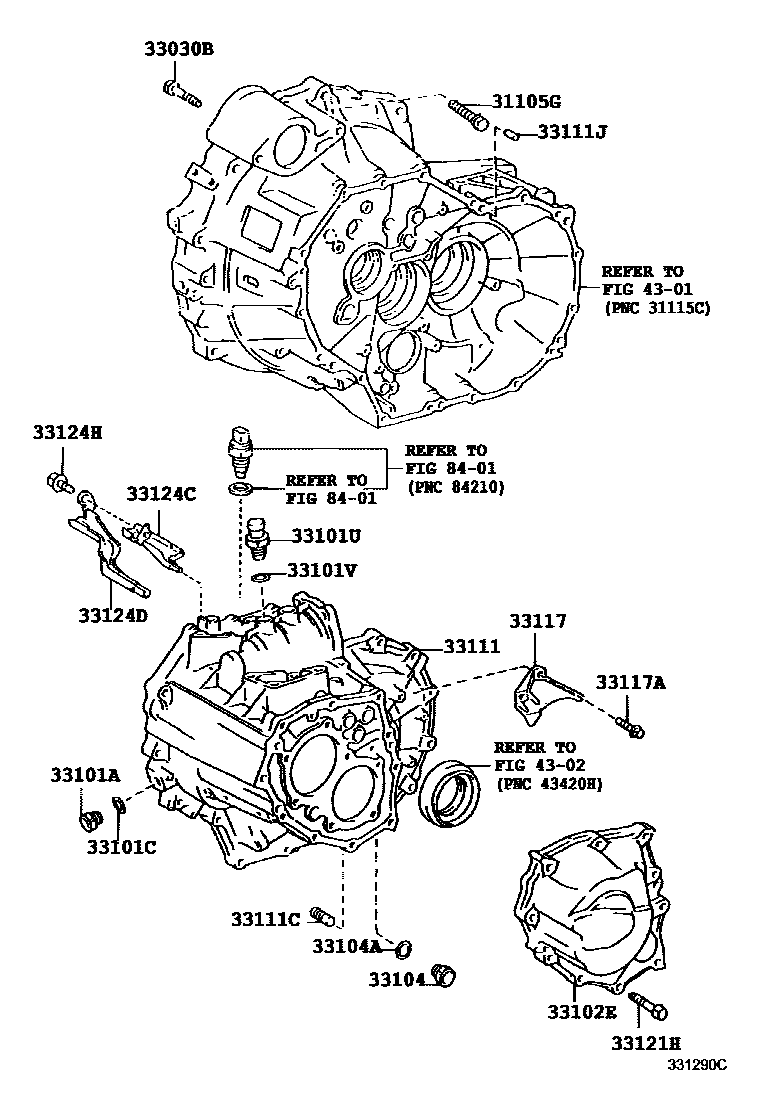

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1E352F,E359F 0002 1C54 0003 1E353F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iCLA2#200105-200108

*10-1.25PX43-26

main90105-10519iCLA2#200108-200307

*10-1.25PX33.5-22

main90105-12147iACA2#..MTM200005-200307

*12-1.25PX74.5-25

main90119-12168iCLA2#200105-200307

*12-1.25PX55-30

main90119-12252iACA2#..MTM200005-200307

*12-1.25PX60-30

main91512-61060iACA2#..MTM200005-200307

*10-1.25PX60-30

main91512-61065iACA2#..MTM200005-200307

*10-1.25PX65-30

main91619-61255iZCA2#200005-200501

*12-1.25PX55-30

main91642-81055iZCA2#200005-200307

*10-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064iZCA2#200005-200307

*8-1.25PX51-28

sub90105-08353

main90105-08086iZCA2#200005-200407

*8-1.25PX45-27.5

main90105-08126iACA22,23..MTM200005-200511

*8-1.25PX45-27.5

main90105-08353iZCA2#200307-200511

*8-1.25PX50-30

main90105-08430iZCA2#200407-200511

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iZCA2#200005-200506

main90341-18033iACA20,21,CLA2#..MTM200005-200511

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iACA2#,CLA2#,ZCA2#..MTM200005-200511

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03148iACA2#,CLA2#..MTM200005-200511

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008iACA2#,CLA2#..MTM200005-200511

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iZCA2#200005-200307

33102ECOVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12041iACA2#,CLA2#..MTM200005-200306

sub33102-12042

main33102-12042iACA2#,CLA2#..MTM200306-200404

sub33102-12043

main33102-12043iACA22,23..MTM200404-200511

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iACA2#,CLA2#,ZCA2#..MTM200005-200511

main90341-18033iZCA2#200506-200511

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iACA20,21,CLA2#..MTM200005-200511

33111CASE, MANUAL TRANSMISSION

main33101-12172iACA2#..MTM200005-200009

sub33101-12173

main33101-12173iACA2#..MTM200009-200107

sub33101-12174

sub33250-28010

sub33290-33020

main33101-12174iACA2#..MTM200107-200301

sub33101-42020

sub33250-28052

main33101-42010iCLA2#200105-200107

sub33101-42011

main33101-42011iCLA2#200107-200301

sub33101-42030

sub33250-28040

sub33506-28230

main33101-42020iACA22,23..MTM200301-200511

main33101-42030iCLA2#200301-200511

main33111-17100iZCA2#200005-200301

sub33111-17101

sub90389-15009

main33111-17101iZCA2#200301-200501

sub33111-17102

sub90101-08166

sub90201-08049

sub90389-15009

main33111-17102iZCA2#200501-200511

sub33111-12280

33111CPLUG(FOR TRANSMISSION CASE)

main90340-10005iACA2#..MTM200008-200307

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iACA2#,CLA2#,ZCA2#..MTM200005-200511

L=23,OD=8

main90250-12005iACA20,21,CLA2#..MTM200005-200511

L=24,OD=12

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iACA2#,CLA2#..MTM200005-200307

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iACA2#,CLA2#..MTM200005-200307

sub91641-H0820

main91641-H0820iACA2#,CLA2#..MTM200307

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08630iACA22,23..MTM200005-200511

main91611-60835iZCA2#200005-200511

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iZCA2#200005-200511

main33124-28050iACA2#,CLA2#..MTM200005-200511

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iZCA2#200005-200511

main33124-28060iACA22,23..MTM200005-200511

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830iACA20,21,CLA2#..MTM200005-200511

main91611-60820iZCA2#200005-200307

sub91611-G0820

main91611-G0820iZCA2#200307-200511
