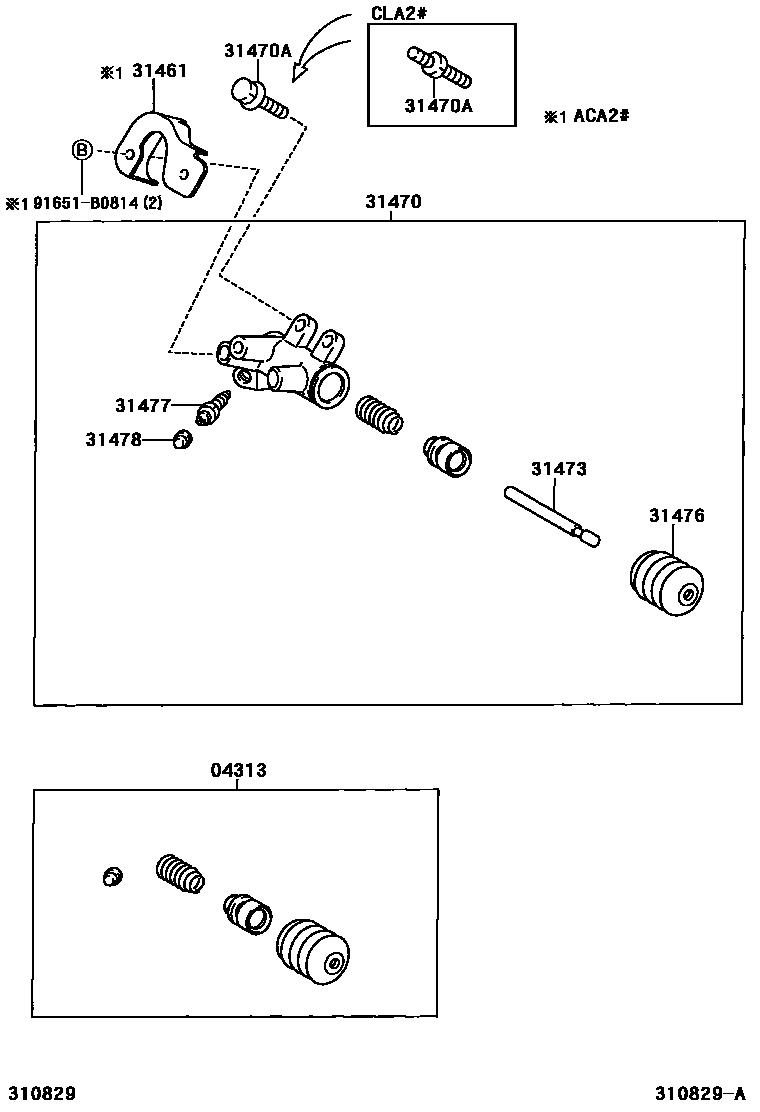

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iACA2#,CLA2#..MTM200005-200307

main04313-17040iZCA2#200005-200307

main04313-52020iACA2#,CLA2#..MTM200401

31461INSULATOR, RELEASE CYLINDER HEAT

main31461-42010iACA2#..MTM200005-200304

sub31461-42011

main31461-42011iACA2#..MTM200304-200307

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20231iZCA2#200005-200511

main31470-32022iCLA2#200105-200406

sub31470-32023

main31470-32023iCLA2#200406-200511

main31470-42030iACA2#..MTM200005-200407

sub31470-42031

main31470-42031iACA2#..MTM200407-200511

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iCLA2#200105-200511

*8-1.25PX25-20.1

main91611-60822iACA2#,ZCA2#..MTM200005-200511

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iCLA2#200005-200511

main31473-22010iACA2#,CLA2#..MTM200105-200407

main31473-22030iACA2#..MTM200407-200511

main31473-32010iACA2#..MTM200005-200209

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iACA2#,CLA2#,ZCA2#..MTM200005-200511

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iACA2#,CLA2#,ZCA2#..MTM200005-200511

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iACA2#,CLA2#,ZCA2#..MTM200005-200511

91651B0814

main91651-B0814

9 parts on this diagram · 1 diagram in section
