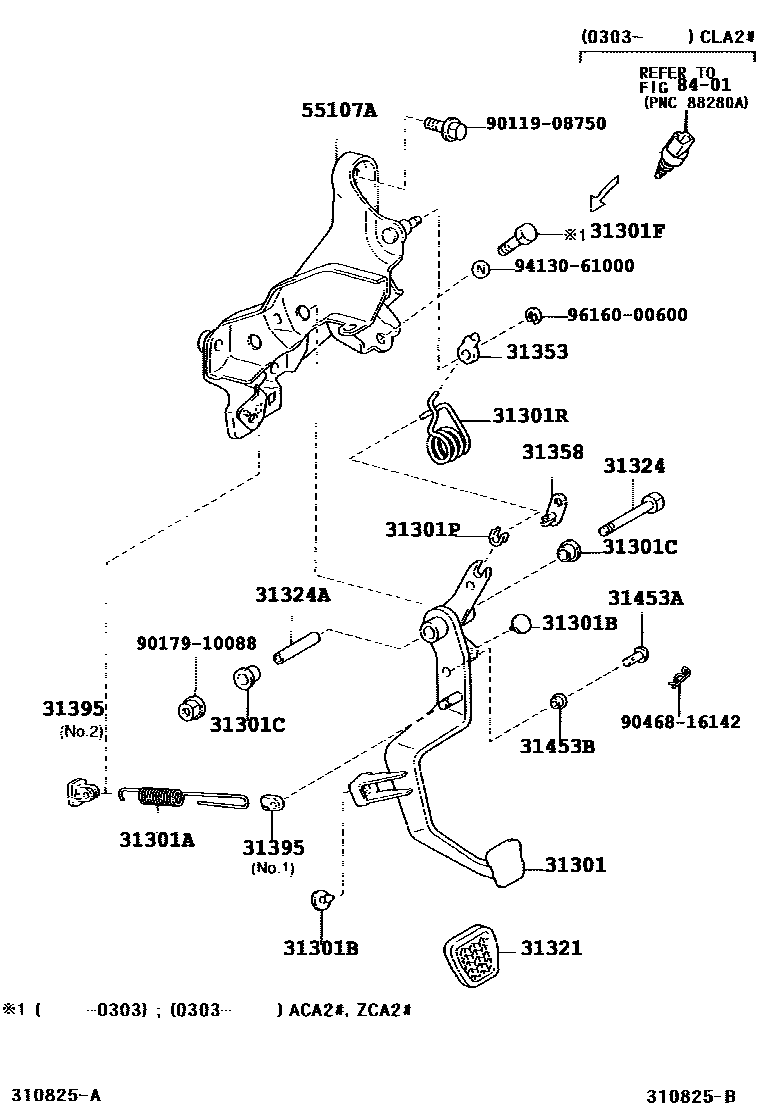

CLUTCH PEDAL & FLEXIBLE HOSE
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301PBUSH(FOR CLUTCH PEDAL TURNOVER)
31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31353HOLDER, CLUTCH PEDAL SPRING
31358CAP, OVER CENTER SPRING
31395HOOK, PEDAL SPRING
NO.1
NO.2
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=29.5
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
8401
9011908750
main90119-08750
9017910088
main90179-10088
9046816142
main90468-16142
9413061000
main94130-61000
9616000600
main96160-00600
22 parts on this diagram · 10 diagrams in section
