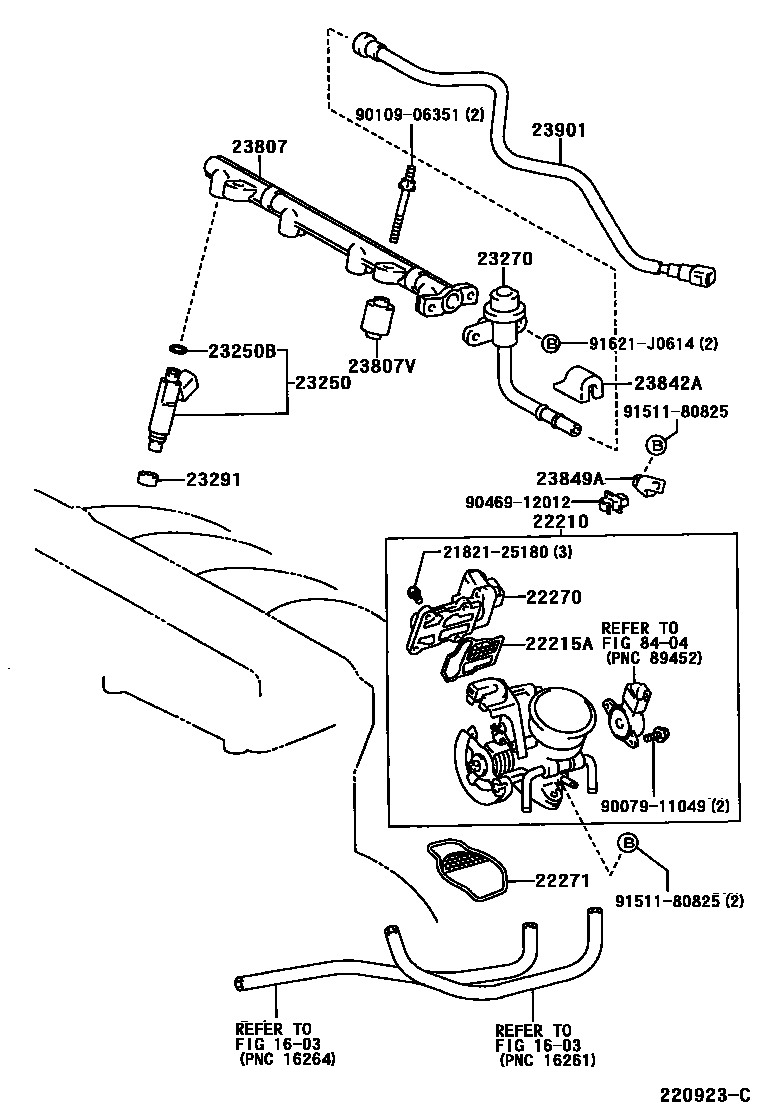

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

22210BODY ASSY, THROTTLE

main22210-22080i1ZZFE..ZCA2#¥90,400200005-200106

sub22210-22170¥90,700

main22210-22130i1ZZFE..ZCA2#¥90,500200106-200307

main22210-28040i1AZFE..ACA2#..GCC,GEN;1AZFE..ACA2#..ATM..(ARL,EUR)¥90,500200005-200511

sub22210-28100¥57,100

main22210-28050i1AZFE..ACA2#..MTM..(ARL,EUR,GCC)¥90,500200005-200307

sub22210-28130¥57,100

22215GASKET, THROTTLE BODY COVER

main22215-7A680i1ZZFE..ZCA2#¥620200005-200307

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-28041i1AZFE..ACA2#¥540200005-200108

sub22215-28042¥550

main22215-28042i1AZFE..ACA2#¥550200108-200307

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-0D040i1ZZFE..ZCA2#¥44,600200211-200511

(L)

main22270-22060i1ZZFE..ZCA2#¥44,600200211-200303

(J)

sub22270-22061¥44,600

main22270-22060i1ZZFE..ZCA2#¥44,600200005-200211

sub22270-22061¥44,600

main22270-22061i1ZZFE..ZCA2#¥44,600200511

main22270-22061i1ZZFE..ZCA2#¥44,600200303-200511

(J)

main22270-28010i1AZFE..ACA21..GEN¥17,300200005-200307

22271GASKET, THROTTLE BODY

main22271-22040i1ZZFE..ZCA2#¥590200005-200307

main22271-28020i1AZFE..ACA2#¥760200005-200307

23250INJECTOR ASSY, FUEL

main23209-22040i1ZZFE..ZCA2#¥20,100200005-200307

main23209-28040i1AZFE..ACA2#..GEN¥20,100200008-200511

main23209-28050i1AZFE..ACA2#..ARL,EUR¥20,100200005-200307

main23209-28080i1AZFE,2AZFE..ACA2#..ARL,EUR,GCC¥16,800200307-200511

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1ZZFE..ZCA2#¥190200005-200307

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i1AZFE,2AZFE..ACA2#¥9,100200005-200307

sub23270-28021¥9,100

23291INSULATOR, INJECTOR VIBRATION

main23291-22020i1ZZFE..ZCA2#¥390200005-200307

main23291-41010i1AZFE..ACA2#¥340200005-200307

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22030i1ZZFE..ZCA2#¥13,600200005-200307

sub23807-22061¥13,600

main23814-28030i1AZFE,2AZFE..ACA2#¥9,400200005-200312

sub23814-28031¥9,400

main23814-28031i1AZFE,2AZFE..ACA2#¥9,400200312

sub23814-28060¥7,800

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i1AZFE..ACA2#¥180200005-200307

main90561-08055i1ZZFE..ZCA2#¥220200005-200307

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1AZFE..ACA2#¥550200005-200307

23849ASUPPORT, FUEL PIPE

main23849-28010i1AZFE..ACA21..GEN¥320200005-200307

main23849-28030i1AZFE,2AZFE..ACA2#..ARL,EUR,GCC¥360200307

23901TUBE SUB-ASSY, FUEL

main23901-22110i1ZZFE..ZCA2#¥7,100200005-200307

main23901-28030i1AZFE..ACA2#¥7,400200005-200307

main23901-28220i1AZFE,2AZFE..ACA2#..ARL,EUR,GCC¥6,300200307

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180¥220

9007911049

main90079-11049¥120

9010906351

main90109-06351¥130

9046912012

main90469-12012¥210

9151180825

main91511-80825¥0

91621J0614

main91621-J0614¥110

22 parts on this diagram · 6 diagrams in section
