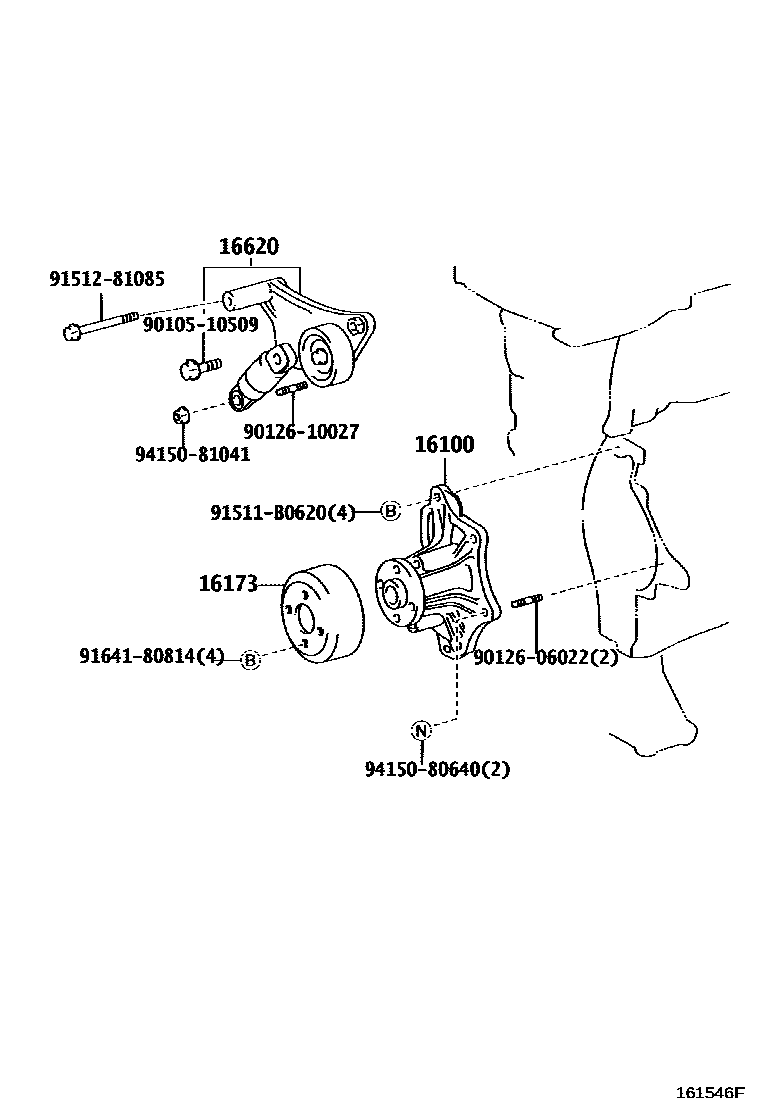

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i1AZFE..ACA2#200005-200307

sub16100-28041

main16100-29095i1ZZFE..ZCA2#200005-200107

sub16100-29175

sub91511-60622

main16100-29135i1CDFTV..CLA2#200105-200307

main16100-29175i1ZZFE..ZCA2#200107-200404

sub16100-29415

main16100-29415i1ZZFE..ZCA2#200404

16173PULLEY, WATER PUMP

main16173-28020i1AZFE..ACA2#200005-200307

16620TENSIONER ASSY, V-RIBBED BELT

main16620-22010i1ZZFE..ZCA2#200005-200106

sub16620-22011

main16620-22011i1ZZFE..ZCA2#200106-200412

sub16620-22012

main16620-22012i1ZZFE..ZCA2#200412-200511

sub16620-22013

main16620-28010i1AZFE..ACA2#200005-200101

sub16620-28011

main16620-28011i1AZFE..ACA2#200101-200511

sub16620-0W110

9010510509

main90105-10509

9012606022

main90126-06022

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

11 parts on this diagram · 3 diagrams in section
