VENTILATION HOSE

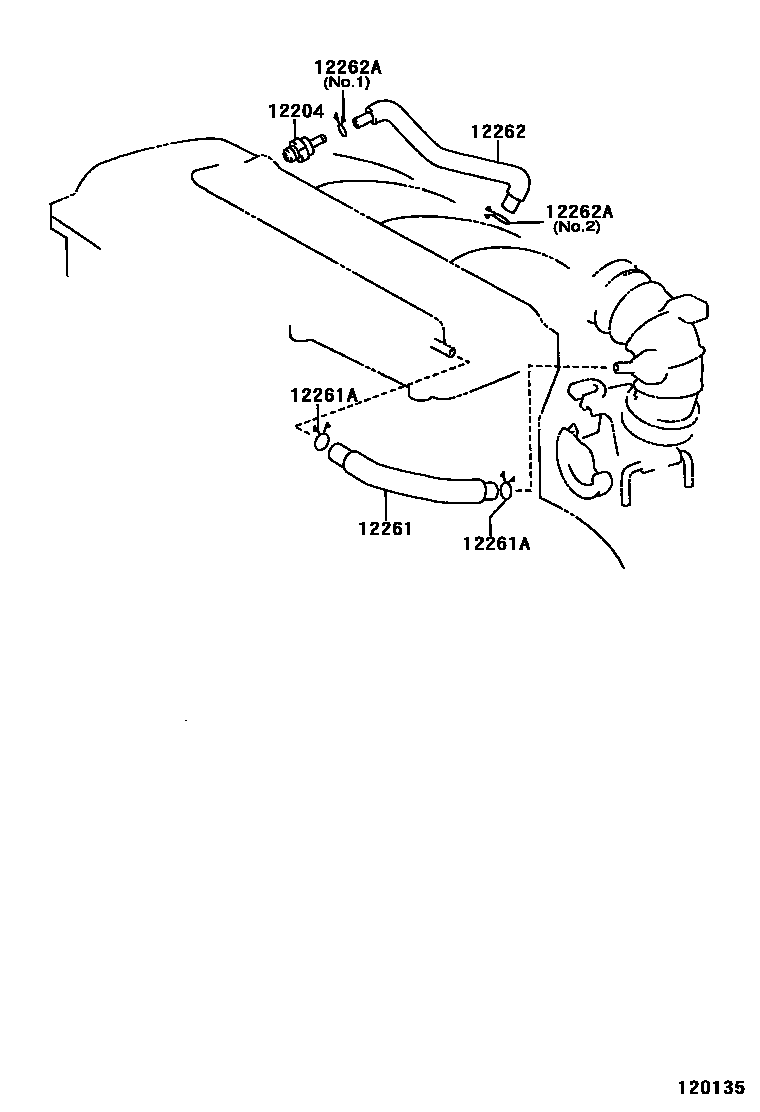

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-22050i200005-200405
sub12204-22051
main12204-22051i200405
main12204-28020i200005-200307
12261HOSE, VENTILATION
main12261-0D040i200406
(L)
main12261-22050i200005-200406
main12261-22050i200406
(J)
main12261-27050i200105-200307
main12261-28010i200005-200307
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-23004i200510
NO.2
main90467-19003i200005-200307
main90467-21004i200105-200307
NO.1
main90467-21152i200005-200307
main90467-23002i200105-200510
NO.2
12262HOSE, VENTILATION, NO.2
main12262-0D050i200406
(L)
main12262-22040i200005-200406
main12262-22040i200406
(J)
main12262-28020i200005-200104
sub12262-28021
main12262-28021i200104-200307
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90466-18002i200403
NO.2
main90467-13103i200005-200307
NO.1
main90467-16035i200005-200307
NO.2
main90467-19003i200005-200403
NO.2

5 parts on this diagram · 3 diagrams in section
