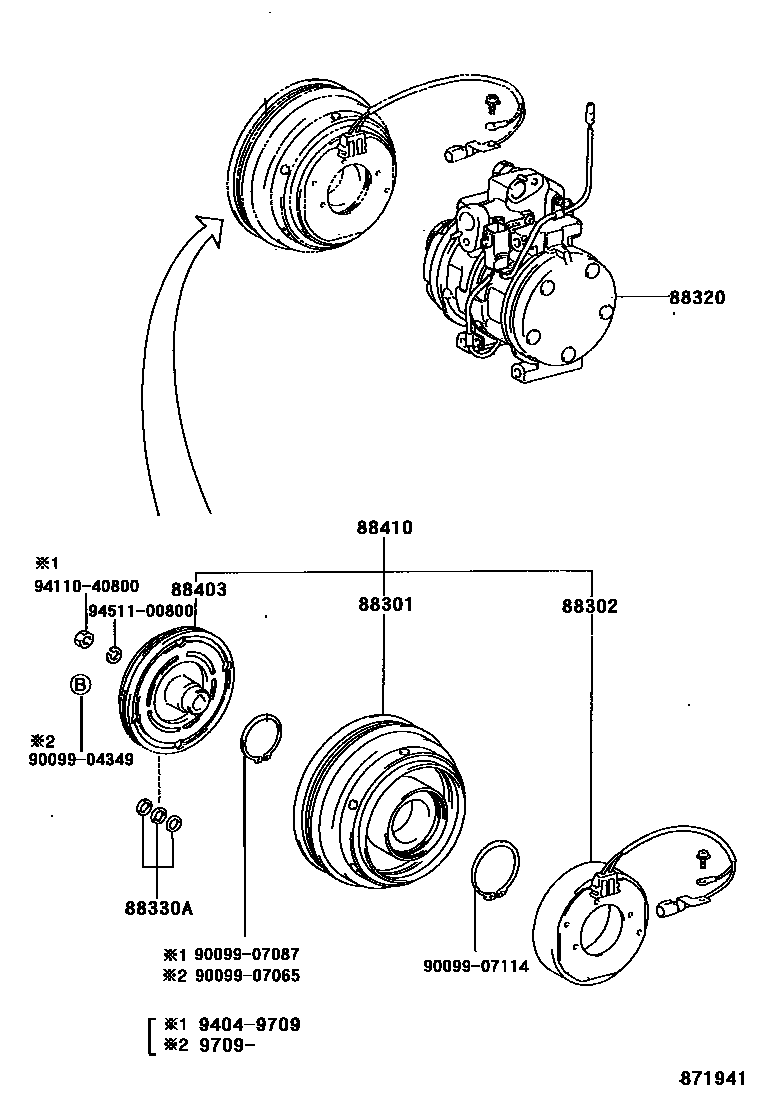

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1COMPRESSOR & MAGNET CLUTCH 0002 1BOLT,NUT & SLIDER 0003 1COMPRESSOR COMPONENT 0004 1COMPRESSOR COMPONENT

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-2A010iSXA1#199404-199709

main88412-44010iSXA1#199709

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iSXA1#199709

main88411-42010iSXA1#199404-199608

main88411-43010iSXA1#..GEN;SXA1#..LHD..EUR199608-199709

88320COMPRESSOR ASSY, COOLER

main88320-42010iSXA1#..ARL,EUR,GEN199404-199608

main88320-42011iSXA1#..GEN;SXA1#..LHD..EUR199608-199709

sub88320-42H90

main88320-42030iSXA11..LHD..ATM199611-199709

ISRAEL SPEC

main88320-42030iSXA10..GCC199601-199709

main88320-42050iSXA1#..ARL,EUR,GEN199709

sub88320-42H91

main88320-42070iSXA1#..GCC;SXA1#..LHD..ATM..EUR199709

MIDDLE EAST SPEC

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iSXA11..LHD..ATM199608-199709

ISRAEL SPEC

main88335-12050iSXA10..GCC199601-199709

main88335-14020iSXA1#..ARL,EUR,GEN199404-199608

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iSXA1#199404-199709

main88403-30290iSXA1#199709

88410CLUTCH ASSY, MAGNET

main88410-42010iSXA1#199404-199709

main88410-42030iSXA1#..ARL,EUR,GEN199608-199709

main88410-44010iSXA1#199709

9009904349

main90099-04349

9009907065

main90099-07065

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

12 parts on this diagram · 4 diagrams in section
