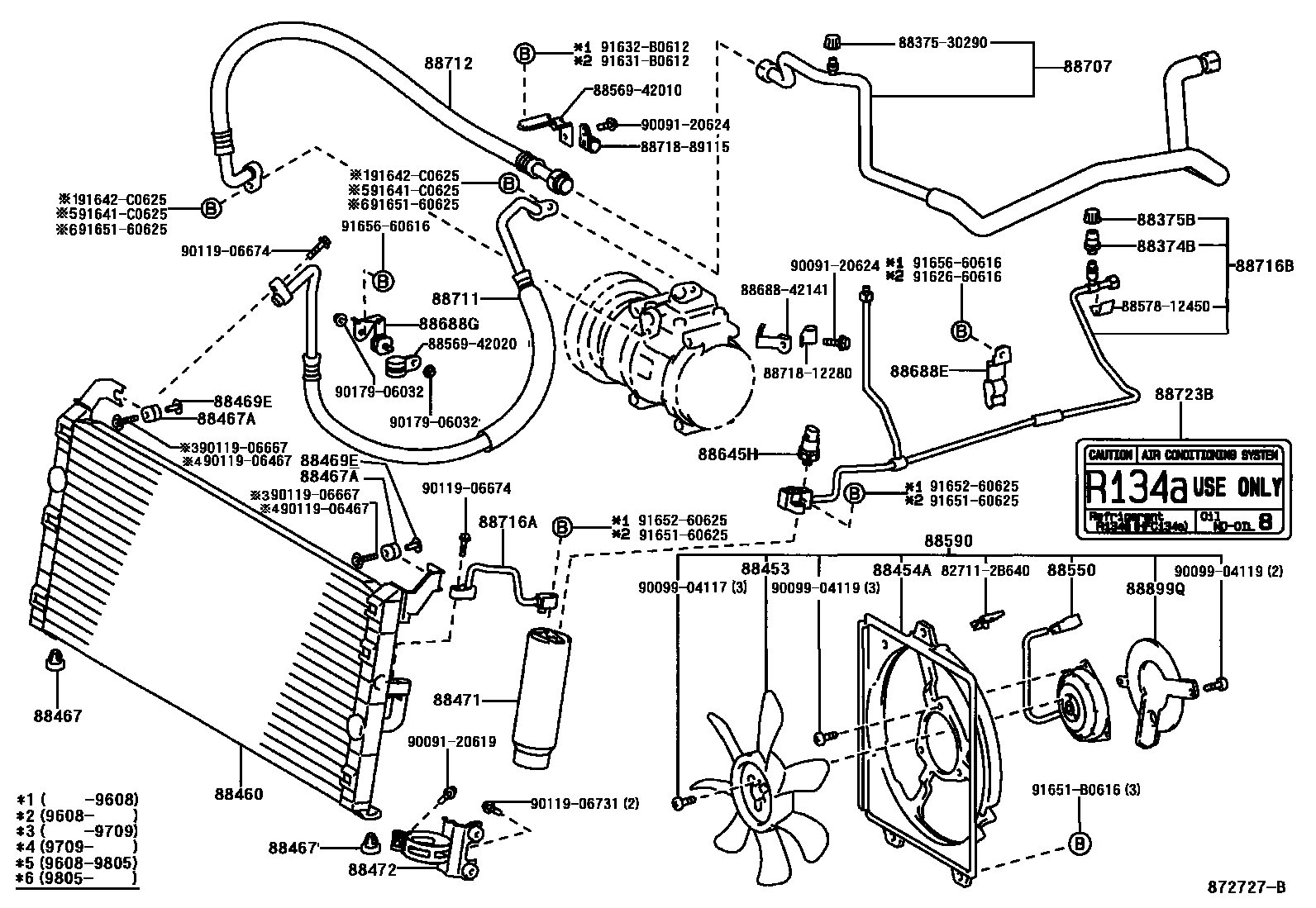

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1MAKER OPTION 0003 1DEALER OPTION 0004 1DEALER OPTION 0005 1

88374BVALVE, SERVICE, NO.1

main88374-30010iSXA11;SXA10..ARL..HT;SXA10..EUR,GCC,GEN199608

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iSXA1#199404

88453FAN, COOLING (FOR CONDENSER)

main88453-20070iSXA1#..MTM..EUR199404

main88453-42010iSXA10..ATM;SXA11..ATM..EUR;SXA11..ARL,GCC,GEN;SXA10..MTM..(ARL,GCC,GEN)199404

88454ASHROUD, FAN

main88454-42010iSXA1#..MTM..EUR199404-199608

main88454-42011iSXA1#..MTM..EUR199608

main88454-42020iSXA1#..ATM..EUR;SXA1#..ARL,GCC,GEN199404-199608

main88454-42021iSXA10..ATM;SXA11..ATM..EUR;SXA11..ARL,GCC,GEN;SXA10..MTM..(ARL,GCC,GEN)199608

88460CONDENSER ASSY, COOLER

main88460-42020iSXA1#199404-199709

sub88460-42021

main88460-42021iSXA1#199709

DEALER OPTION

88467CUSHION, COOLER CONDENSER, NO.1

main88467-16090iSXA1#199404

88467ACUSHION, COOLER CONDENSER, NO.2

main90099-32130iSXA1#199404

88469ECOLLAR, CONDENSER BRACKET, NO.2

main88469-28010iSXA1#199404

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iSXA1#199404

sub88471-34010

88472BRACKET, RECEIVER TANK, NO.1

main88472-42010iSXA1#199404

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-74180iSXA1#..MTM..EUR199404

main16363-74190iSXA10..ATM;SXA11..ATM..EUR;SXA11..ARL,GCC,GEN;SXA10..MTM..(ARL,GCC,GEN)199404

88590BLOWER ASSY, W/SHROUD

main88590-42010iSXA1#..MTM..EUR199404-199608

main88590-42011iSXA1#..MTM..EUR199608

main88590-42020iSXA1#..ATM..EUR;SXA1#..ARL,GCC,GEN199404-199608

main88590-42021iSXA10..ATM;SXA11..ATM..EUR;SXA11..ARL,GCC,GEN;SXA10..MTM..(ARL,GCC,GEN)199608

88645HSWITCH, PRESSURE NO.1

main88645-20050iSXA1#199404

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-42020iSXA1#..RHD199404-199709

main88688-42021iSXA1#..RHD..(EUR,GEN)199709

MAKER OPTION

main88688-42030iSXA1#..LHD199404-199608

main88688-42100iSXA1#..LHD199608

SUSPENSION SUPPORT

main88688-42100iSXA1#..LHD..(GCC,GEN)199511-199608

main88688-42120iSXA1#..LHD199608

PS BRACKET

main88688-42280iSXA1#..RHD..(ARL,EUR)199709

DEALER OPTION,UPPER

main88688-42290iSXA1#..RHD..(ARL,EUR)199709

DEALER OPTION,LOWER

88688GBRACKET, COOLER REFRIGERANT PIPE

main88688-42010iSXA1#199404-199608

88707PIPE SUB-ASSY, SUCTION

main88717-42010iSXA1#..RHD199404-199709

main88717-42011iSXA1#..RHD..(EUR,GEN)..HT199709

MAKER OPTION

main88717-42011iSXA10..RHD..EUR..CVT199712

main88717-42020iSXA10..LHD199404-199406

main88717-42021iSXA1#..LHD..EUR199406-199608

main88717-42040iSXA1#..LHD..(GCC,GEN)199511-199608

main88717-42051iSXA1#..LHD199608

main88717-42080iSXA1#..RHD..(ARL,EUR)199709

DEALER OPTION,NO.2

main88717-42090iSXA1#..RHD..(ARL,EUR)199709

DEALER OPTION,NO.1

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-42010iSXA1#199404-199709

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-42020iSXA1#..LHD..(GCC,GEN)199602-199608

main88712-42010iSXA10..LHD199404-199406

main88712-42011iSXA1#..LHD199406-199608

main88712-42020iSXA1#..RHD199404-199608

sub88712-42021

main88712-42021iSXA1#..RHD199608-199709

main88712-42022iSXA1#..RHD199709

main88712-42030iSXA1#..LHD..(GCC,GEN)199511-199602

sub88712-42050

main88712-42041iSXA1#..LHD..EUR199608-199709

MAKER OPT

main88712-42042iSXA1#..LHD199709

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-42010iSXA1#199404

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88706-42030iSXA1#..LHD199404-199709

NO.1

main88706-42030iSXA1#..LHD..EUR199709

DEALER OPTION,NO.1

main88706-42031iSXA1#..LHD199709

NO.1

main88716-42020iSXA1#..LHD199404-199608

MAKER OPTION,NO.2

main88716-42030iSXA1#..RHD199404-199709

main88716-42050iSXA1#..LHD199404-199709

DEALER OPTION,NO.2

main88716-42060iSXA1#..LHD..(GCC,GEN)199511-199602

MAKER OPTION,NO.2

sub88716-42061

main88716-42061iSXA1#..LHD..(GCC,GEN)199602-199608

MAKER OPTION,NO.2

main88716-42070iSXA1#..LHD199608

MAKER OPTION,NO.2

main88716-42081iSXA1#..RHD199608-199709

MAKER OPTION

main88716-42082iSXA1#..RHD..(EUR,GEN)199709

MAKER OPTION

main88716-42110iSXA1#..RHD..(ARL,EUR)199709

DEALER OPTION,NO.2

main88716-42130iSXA1#..RHD..(ARL,EUR)199709

DEALER OPTION,NO.1

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iSXA1#199404

88899QPLATE, COVER

main88899-42060iSXA10..MTM..EUR199404-199709

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8837530290CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30290

8856942010CLAMP (FOR COOLER RELAY)

main88569-42010

8856942020CLAMP (FOR COOLER RELAY)

main88569-42020

8857812450PAKING, COOLER AIR DUCT

main88578-12450

8868842141BRACKET, COOLER DIAPHRAGM

main88688-42141

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8871889115PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-89115

9009120619

main90091-20619

9009120624

main90091-20624

9009904117

main90099-04117

9009904119

main90099-04119

9011906467

main90119-06467

9011906667

main90119-06667

9011906674

main90119-06674

9011906731

main90119-06731

9017906032

main90179-06032

9162660616

main91626-60616

91631B0612

main91631-B0612

91632B0612

main91632-B0612

91641C0625

main91641-C0625

91642C0625

main91642-C0625

9165160625

main91651-60625

91651B0616

main91651-B0616

9165260625

main91652-60625

9165660616

main91656-60616

48 parts on this diagram · 5 diagrams in section
