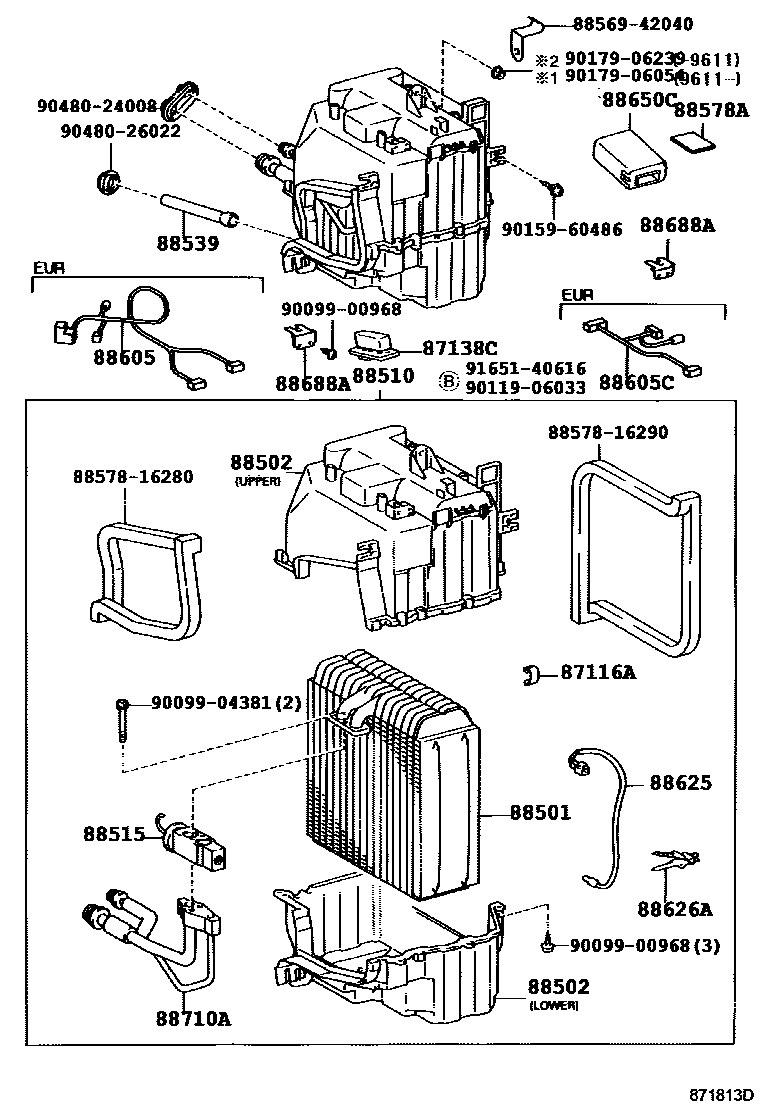

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iSXA1#..LHD199404-199709

87138CRESISTOR, BLOWER

main87138-42010iSXA11..RHD..EUR;SXA10..RHD..MTM..EUR199605-199606

MAX

main87138-42010iSXA1#..GCC,GEN199404-199709

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-42010iSXA10..RHD199404-199410

sub88501-42011

main88501-42011iSXA1#..RHD199410

main88501-42020iSXA10..LHD199404-199410

sub88501-42021

main88501-42021iSXA1#..LHD..HT199410

DEALER OPT

main88501-42040iSXA10..LHD..CVT199712

main88501-42040iSXA1#..LHD..(GCC,GEN)199511-199608

MAKER OPT

88502CASE SUB-ASSY, COOLING UNIT

main88502-42010iSXA1#..RHD199404-199608

UPPER

sub88502-42011

sub88688-42151

main88502-42011iSXA1#..RHD199608

UPPER

main88502-42020iSXA1#..RHD199404-199709

LOWER

main88502-42030iSXA1#..LHD..EUR199404-199608

UPPER

main88502-42030iSXA1#..LHD..EUR199608-199709

DEALER OPT,UPPER

main88502-42040iSXA1#..LHD..EUR199608-199709

DEALER OPT,LOWER

main88502-42040iSXA1#..LHD199404-199608

LOWER

main88502-42050iSXA1#..LHD..EUR..HT199608

MAKER OPT,UPPER

main88502-42050iSXA10..LHD..CVT;SXA1#..LHD..(GCC,GEN)199511

UPPER

main88502-42060iSXA10..LHD..CVT;SXA1#..LHD..(GCC,GEN)199511

LOWER

main88502-42060iSXA1#..LHD..EUR..HT199608

MAKER OPT,LOWER

88510UNIT ASSY, COOLER

main88510-42030iSXA1#..RHD199404-199608

sub88510-42031

sub88688-42151

main88510-42031iSXA1#..RHD199608

main88510-42040iSXA1#..LHD199404-199608

main88510-42050iSXA10..LHD..CVT;SXA1#..LHD..(GCC,GEN)199511

main88510-42050iSXA1#..LHD..EUR..HT199608

MAKER OPT

main88510-42060iSXA1#..LHD..EUR199608

DEALER OPT

88515VALVE, COOLER EXPANSION

main88515-20100iSXA1#199404-199709

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-42010iSXA1#199404-199709

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-16270iSXA1#..LHD199511-199608

sub88578-26120

main88578-42010iSXA1#..LHD..EUR199406-199808

sub88578-12310

main88578-42010iSXA10..CVT;SXA1#..ARL..HT;SXA11..ATM..GEN;SXA1#..LHD..EUR..HT199808

DEALER OPTION

sub88578-12310

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-42010iSXA1#..EUR199404-199709

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-42020iSXA1#..EUR199404-199709

88625THERMISTOR, COOLER, NO.1

main88625-20340iSXA1#199404-200008

88626AHOLDER, THERMISTOR

main88626-28010iSXA1#199404-199709

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-42010iSXA1#199404-199709

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-42050iSXA1#..ARL199404-199709

main88688-42110iSXA1#..LHD199511

main88688-42151iSXA10..RHD..CVT;SXA1#..RHD..GEN199608

88710ATUBE ASSY, AIR CONDITIONER

main88710-42010iSXA1#..RHD199404

main88710-42020iSXA1#..LHD..EUR199608-199709

DEALER OPT

main88710-42020iSXA1#..LHD199404-199608

main88710-42030iSXA10..LHD..CVT;SXA1#..LHD..(GCC,GEN)199511

main88710-42030iSXA1#..LHD..EUR..HT199608

MAKER OPT

8856942040CLAMP (FOR COOLER RELAY)

main88569-42040

8857816280PAKING, COOLER AIR DUCT

main88578-16280

8857816290PAKING, COOLER AIR DUCT

main88578-16290

9009900968

main90099-00968

9009904381

main90099-04381

9011906033

main90119-06033

9015960486

main90159-60486

9017906054

main90179-06054

9017906239

main90179-06239

9048024008

main90480-24008

9048026022

main90480-26022

9165140616

main91651-40616
