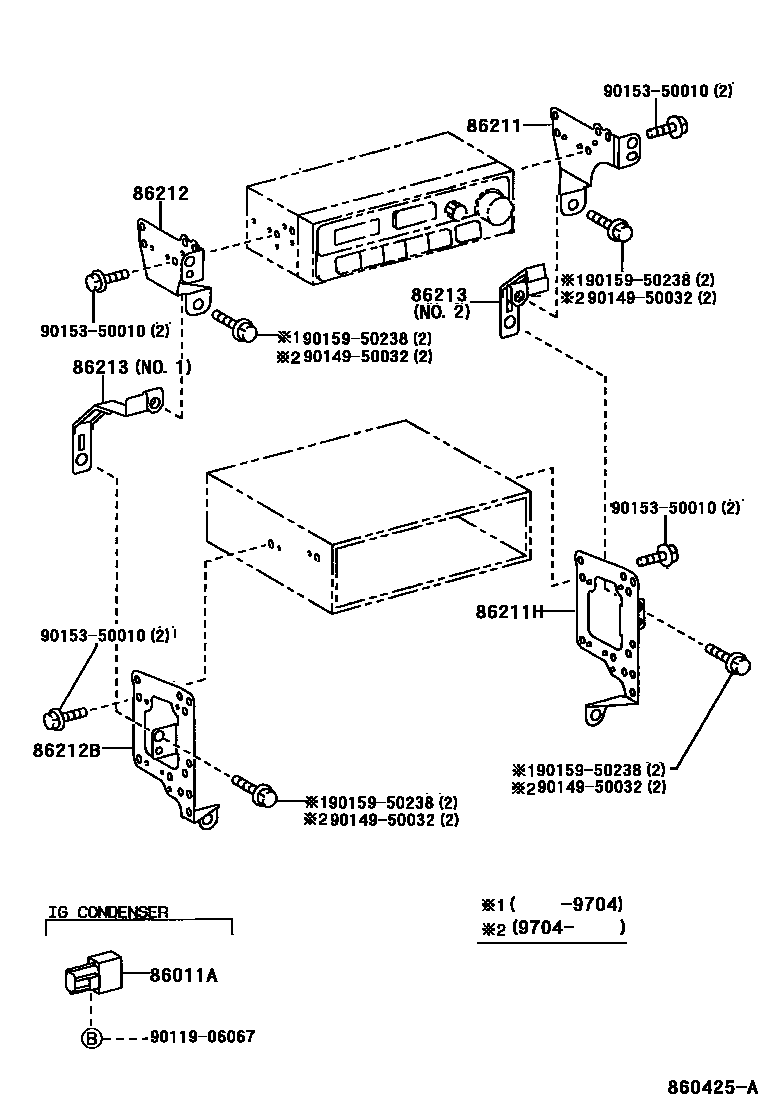

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & BRACKET 0002 1KNOB,RECEIVER RADIO 0003 1RECEIVER RADIO & DISC PLAYER

86011ACONDENSER, RADIO SETTING

main90980-04083iSXA1#..ARL199404-199709

main90980-04130iSXA1#..EUR,GCC,GEN199608-199709

86211BRACKET, RADIO, NO.1

main86211-42010iSXA1#199404

86211HBRACKET, RADIO, NO.2

main86211-42020iSXA1#199404

86212BRACKET, RADIO, NO.2

main86212-42010iSXA1#199404

86212BBRACKET, RADIO, NO.1

main86212-42020iSXA1#199404

86213BRACKET, RADIO, NO.3

main86213-42010iSXA1#..RHD199404

NO.1

main86213-42020iSXA1#..RHD199404

NO.2

main86213-42030iSXA1#..LHD199404

NO.1

main86213-42040iSXA1#..LHD199404

NO.2

9011906067

main90119-06067

9014950032

main90149-50032

9015350010

main90153-50010

9015950238

main90159-50238

10 parts on this diagram · 3 diagrams in section
