WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42010iSXA1#..RHD..(ARL,GEN)199404

sub85110-42021

main85110-42020iSXA1#..RHD..EUR199404-199608

sub85110-42021

main85110-42021iSXA1#..RHD..EUR199608

main85110-42030iSXA1#..LHD..EUR199404-199608

sub85110-42031

main85110-42031iSXA1#..LHD..EUR199608

main85110-42040iSXA1#..LHD..(GCC,GEN)199404

85160LINK ASSY, WINDSHIELD WIPER

main85150-42010iSXA1#..RHD199404-199608

main85150-42020iSXA1#..LHD199404-199608

main85150-42040iSXA1#..RHD199608

main85150-42050iSXA1#..LHD199608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iSXA1#199404

85192COVER, WINDSHIELD WIPER ARM

main85292-12020iSXA1#199404

85211BARM, FRONT WIPER, RH

main85211-42010iSXA1#..RHD..(ARL,GEN)199404-199608

main85211-42020iSXA1#..RHD..EUR199404-199608

main85211-42030iSXA1#..LHD199404-199608

main85211-42040iSXA1#..RHD..(ARL,GEN)199608

main85211-42050iSXA1#..RHD..EUR199608

main85211-42060iSXA1#..LHD199608

85212ABLADE, FR WIPER, RH

main85212-12312iSXA1#..RHD..EUR199404-199608

main85212-23070iSXA10..RHD..(ARL,GEN)199404-199504

main85212-42030iSXA1#..RHD..(ARL,GEN)199504-199608

main85212-42040iSXA1#..RHD..(ARL,GEN)199608

sub85212-42041

main85212-42050iSXA1#..RHD..EUR199608

sub85212-42051

main85212-60050iSXA1#..LHD199404-199608

sub85212-60051

main85212-60090iSXA1#..LHD199608

sub85212-33160

85213ARUBBER, WIPER BLADE, RH

main85213-12330iSXA10..RHD..EUR199404-199502

sub85214-30260

main85213-30250iSXA10..RHD..(ARL,GEN)199404-199502

sub85214-30250

main85223-60060iSXA10..LHD199404-199502

sub85214-20320

85214ARUBBER, WIPER, RH

main85214-10080iSXA1#..RHD..(ARL,GEN)199608

sub85214-53050

main85214-20320iSXA1#..LHD199502-199608

sub85214-20330

main85214-30250iSXA1#..RHD..(ARL,GEN)199502-199608

main85214-30260iSXA1#..RHD..EUR199502-199608

main85214-42020iSXA1#..RHD..EUR199608

sub85214-24051

main85214-60060iSXA1#..LHD199608

85214BRUBBER, WIPER, LH

main85214-20320iSXA1#..RHD199502-199608

sub85214-20330

main85214-20350iSXA1#..RHD199608

sub85214-22420

main85214-30260iSXA1#..LHD199502-199608

main85214-42020iSXA1#..LHD199608

sub85214-24051

85221BARM, FRONT WIPER, LH

main85221-42010iSXA1#..RHD199404-199608

main85221-42020iSXA1#..LHD..(GCC,GEN)199404-199608

main85221-42030iSXA1#..LHD..EUR199404-199608

main85221-42040iSXA1#..RHD199608

main85221-42050iSXA1#..LHD..(GCC,GEN)199608

main85221-42060iSXA1#..LHD..EUR199608

85222ABLADE, FR WIPER, LH

main85222-20310iSXA1#..RHD199404-199608

sub85222-60100

main85222-20390iSXA1#..RHD199608

sub85222-22780

main85222-42010iSXA1#..LHD..(GCC,GEN)199404-199608

main85222-42020iSXA1#..LHD..EUR199404-199608

sub85222-1G100

main85222-42040iSXA1#..LHD..(GCC,GEN)199608

sub85222-42041

main85222-42050iSXA1#..LHD..EUR199608

sub85222-42051

85223ARUBBER, FRONT WIPER BLADE, LH

main85213-12330iSXA10..LHD199404-199502

sub85214-30260

main85223-20310iSXA10..RHD199404-199502

sub85214-20320

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-30380iSXA1#..RHD199502-199608

main85224-42010iSXA1#..RHD199608

main85224-60050iSXA1#..LHD199502-199608

main85224-60100iSXA1#..LHD199608

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-30380iSXA1#..RHD199502-199608

main85224-42010iSXA1#..RHD199608

main85224-60050iSXA1#..LHD199502-199608

main85224-60100iSXA1#..LHD199608

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-10210iSXA1#..LHD199608

sub85224-10180

main85224-20310iSXA1#..RHD199608

main85224-30380iSXA1#..LHD199502-199608

main85224-60050iSXA1#..RHD199502-199608

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-10210iSXA1#..LHD199608

sub85224-10180

main85224-20310iSXA1#..RHD199608

main85224-30380iSXA1#..LHD199502-199608

main85224-60050iSXA1#..RHD199502-199608

9011906187

main90119-06187

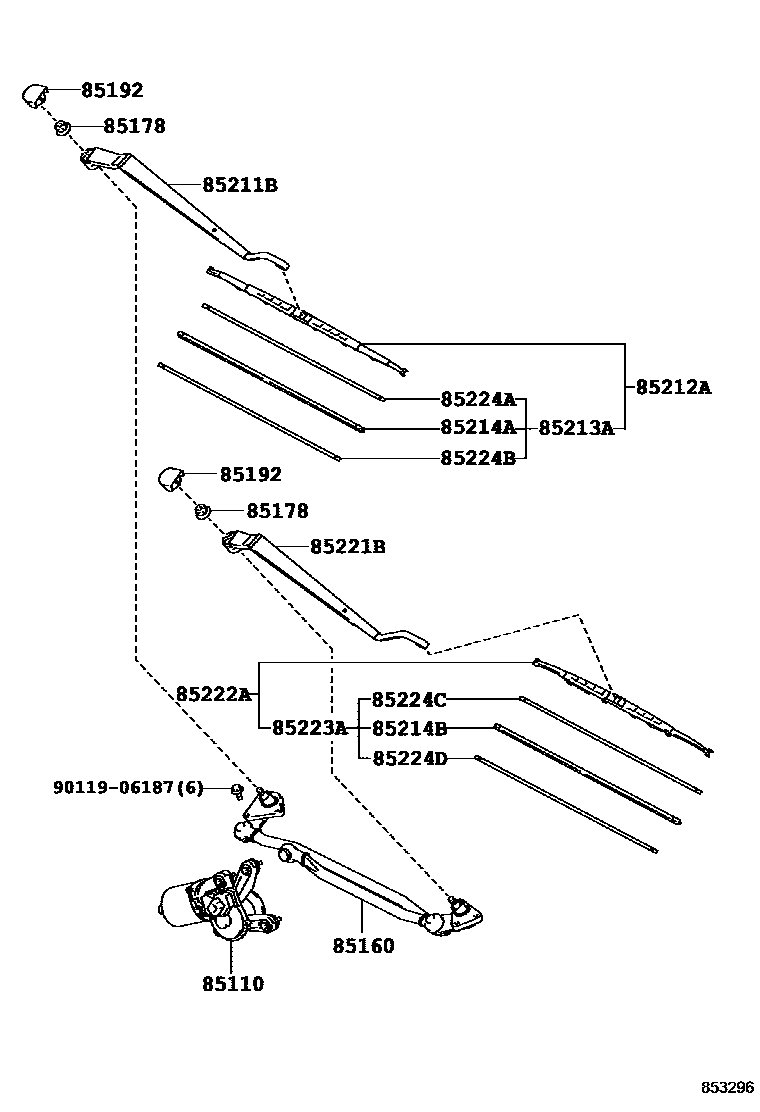

17 parts on this diagram · 1 diagram in section
