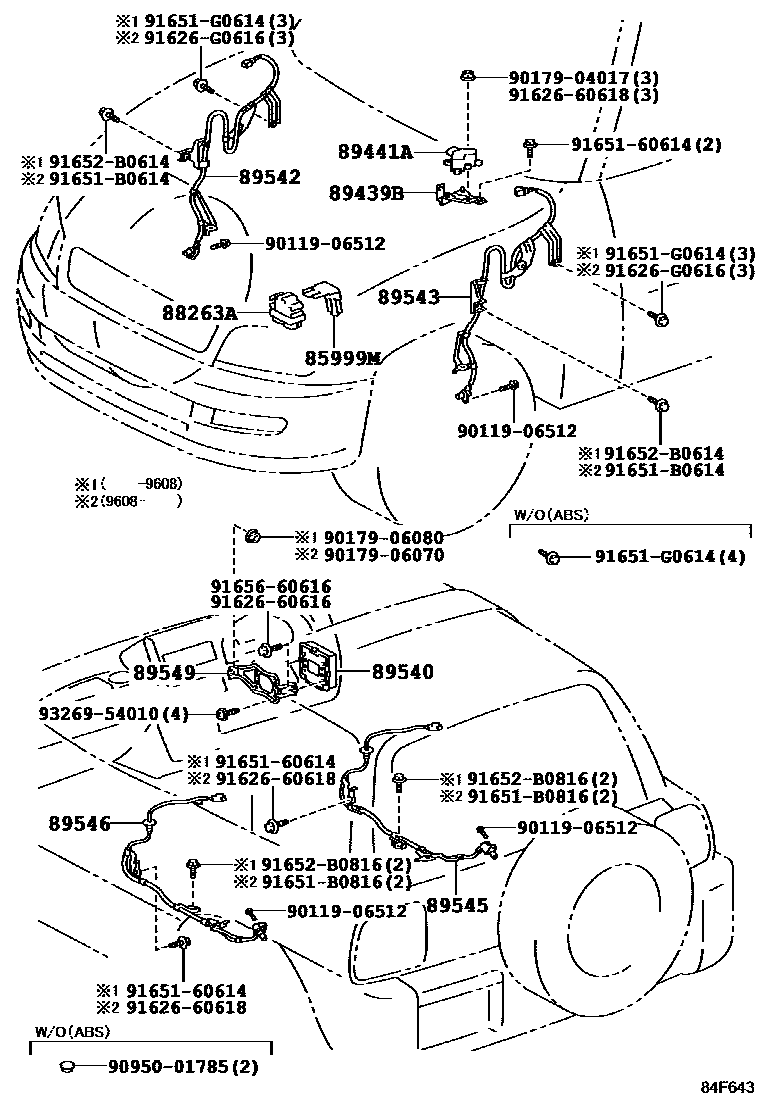

ABS & VSC

85999MBRACKET, RELAY

main85999-42020iSXA1#199404-199709

88263ARELAY, SKID CONTROL

main88263-12080iSXA1#..ARL,EUR,GCC199404-199709

89439BBRACKET, SENSOR

main89439-42010iSXA10..ARL,EUR,GEN199404-199709

89441ASENSOR, DECELERATION

main89441-20050iSXA1#..ARL,EUR,GCC199404-199608

sub89441-42010

main89441-30040iSXA11..ARL,EUR199608-199709

main89441-42010iSXA10..ARL,EUR,GCC199608-199709

89540COMPUTER ASSY, SKID CONTROL

main89540-42030iSXA10..RHD199709

main89540-42040iSXA10..LHD199709

main89540-42050iSXA11..RHD199709

main89540-42060iSXA11..LHD199709

main89541-42010iSXA1#..ARL,EUR,GCC199404-199608

main89541-42030iSXA10..ARL,EUR,GCC199608-199709

main89541-42040iSXA11..ARL,EUR199608-199709

89542SENSOR, SPEED, FRONT RH

main89542-42010iSXA1#..ARL,EUR199404-199511

sub89542-42011

main89542-42011iSXA1#..ARL,EUR,GCC199511-199608

main89542-42020iSXA1#..ARL,EUR,GCC199608-199709

sub89542-42030

89543SENSOR, SPEED, FRONT LH

main89543-42010iSXA1#..ARL,EUR199404-199511

sub89543-42011

main89543-42011iSXA1#..ARL,EUR,GCC199511-199608

main89543-42020iSXA1#..ARL,EUR,GCC199608-199709

sub89543-42030

89545SENSOR, SPEED, REAR RH

main89545-42010iSXA1#..ARL,EUR,GCC199404-199608

main89545-42020iSXA1#..ARL,EUR,GCC199608-199709

89546SENSOR, SPEED, REAR LH

main89546-42010iSXA1#..ARL,EUR,GCC199404-199608

main89546-42020iSXA1#..ARL,EUR,GCC199608-199709

89549BRACKET, SKID CONTROL COMPUTER

main89549-42010iSXA1#..ARL,EUR199404-199601

sub89549-42020

main89549-42020iSXA1#..ARL,EUR,GCC199601-199709

9011906512

main90119-06512

9017904017

main90179-04017

9017906070

main90179-06070

9017906080

main90179-06080

9095001785

main90950-01785

9162660616

main91626-60616

9162660618

main91626-60618

91626G0616

main91626-G0616

9165160614

main91651-60614

91651B0614

main91651-B0614

91651B0816

main91651-B0816

91651G0614

main91651-G0614

91652B0614

main91652-B0614

91652B0816

main91652-B0816

9165660616

main91656-60616

9326954010

main93269-54010

26 parts on this diagram · 1 diagram in section
