INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B1iSXA1#199404-199709

LT.BLUISH GRAY,TRIM1#

sub81240-12060

main81240-12060-B3iSXA11..ARL,EUR,GCC199808

LT.GRAY,TRIM10,11

sub81240-12060

main81240-12060-B3iSXA11..GEN199808

LT.GRAY,TRIM1#,10,12

sub81240-12060

main81240-12060-B3iSXA11..GEN199807-199808

LT.GRAY,TRIM10,12

sub81240-12060

main81240-12060-B3iSXA11199807-199808

LT.GRAY,TRIM1#

sub81240-12060

main81240-42010-B0iSXA11199709-199807

LT.GRAY,TRIM10,12

sub81240-12060

main81240-42010-B0iSXA10199709-199807

LT.GRAY,TRIM10,11

sub81240-12060

81240BBULB, ROOM LAMP, NO.1

main90981-14011iSXA1#199404

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iSXA1#199404

81260ALAMP ASSY, MAP

main81260-14080-B2iSXA1#199404-199709

LT.BLUISH GRAY,TRIM1#

sub81260-14080

main81260-14080-B3iSXA11..GEN199808

LT.GRAY,TRIM1#,10,12

sub81260-14080

main81260-14080-B3iSXA11199709-199808

LT.GRAY,TRIM10,12

sub81260-14080

main81260-14080-B3iSXA10199709

LT.GRAY,TRIM10,11

sub81260-14080

main81260-20220-B1iSXA11..ARL,EUR,GCC199808

W(MOON ROOF),LT.GRAY,TRIM1#,10,12

sub81260-20220

sub81260-22170

main81260-20220-B1iSXA11199709-199808

W(MOON ROOF),LT.GRAY,TRIM10,12

sub81260-20220

sub81260-22170

main81260-20220-B1iSXA10..HT199709

W(MOON ROOF),LT.GRAY,TRIM10,11

sub81260-20220

sub81260-22170

main81260-20220-B2iSXA11199504-199709

W(MOON ROOF),BLUISH GRAY,TRIM1#

sub81260-20220

sub81260-22170

81260CBULB(FOR MAP LAMP)

main90981-12005iSXA1#199404

12V 8W

main90981-12014iSXA10..HT;SXA11..MTM..GCC;SXA11..ATM..(GCC,GEN)199709

12V 10W

main90981-12014iSXA11..ARL,EUR;SXA11..MTM..GEN199504

12V 10W,W(ELECTRIC MOON ROOF)

81261LENS AND COVER, MAP LAMP

main81261-14080iSXA1#199404-199709

main81261-20220-B1iSXA11199504-199709

W(ELECTRIC MOON ROOF),BLUISH GRAY,TRIM1#

sub81261-20220

81870DLAMP ASSY, KEY CYLINDER

main81870-12010iSXA10..GEN;SXA11..MTM..GEN199404

GENERAL UP GRADE PACKAGE

main81870-12010iSXA1#..ARL199404-199709

AUSTRALIA UP GRADE PACKAGE

81870EBULB, KEY CYLINDER LAMP

main84999-10250iSXA1#..EUR,GCC199404-199709

14V 1.4W,GENERAL UP GRADE PACKAGE

main84999-10250iSXA1#..ARL199404-199709

14V 1.4W

main84999-10250iSXA1#..ARL199404-199709

14V 1.4W,AUSTRALIA UP GRADE PACKAGE

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10550iSXA1#..EUR,GCC199404-199709

AUSTRALIA UP GRADE PACKAGE

main84998-10550iSXA1#..EUR,GCC199404-199709

GENERAL UP GRADE PACKAGE

81871LENS, KEY ILLUMINATION

main81871-12010iSXA1#..ARL199404-199709

AUSTRALIA UP GRADE PACKAGE

main81871-12010iSXA1#..EUR,GCC;SXA11..ATM..GEN199404

GENERAL UP GRADE PACKAGE

8401

9016445005

main90164-45005

9354054016

main93540-54016

9356755016

main93567-55016

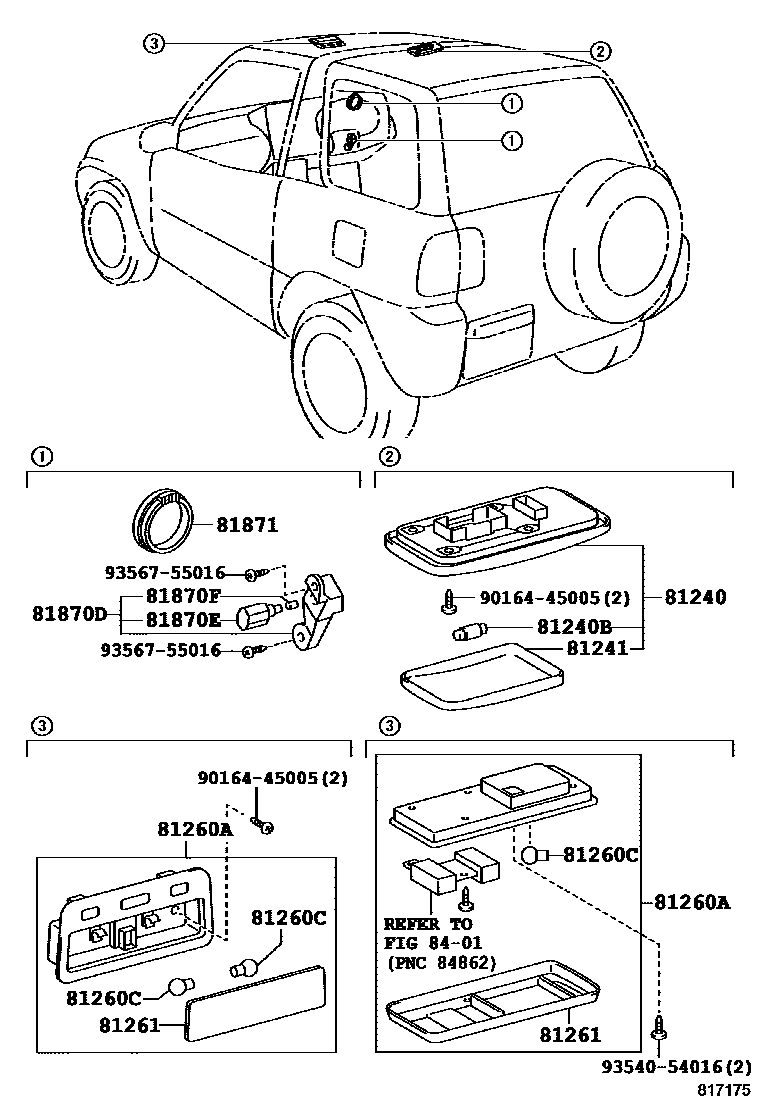

14 parts on this diagram · 1 diagram in section
