LOCK CYLINDER SET

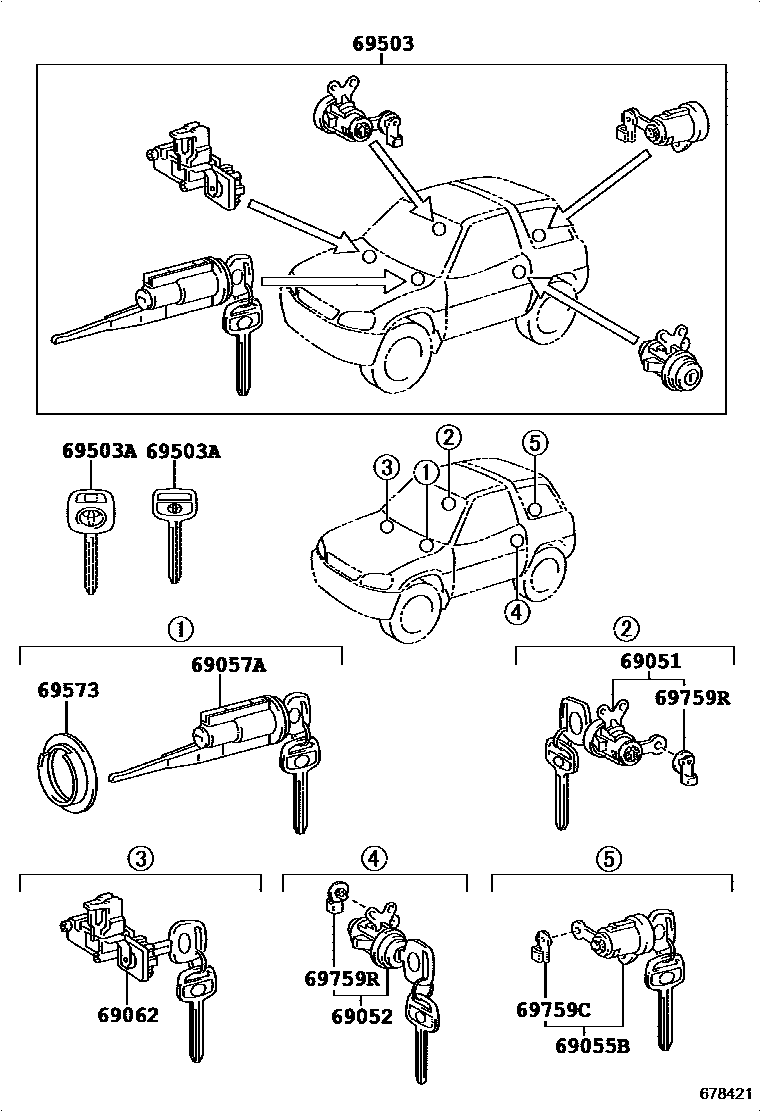

Parts diagram
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-42020i199404-199709
main69051-42020i199505
SOUTH AFRICA SPEC
main69051-42030i199404-199709
sub69051-42020
main69051-42050i199505
SOUTH AFRICA SPEC
main69051-42050i199504-199709
main69051-42060i199504-199709
sub69051-42050
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-42020i199404-199709
main69052-42020i199505
SOUTH AFRICA SPEC
main69052-42030i199404-199709
sub69052-42020
main69052-42050i199504-199709
main69052-42050i199505
SOUTH AFRICA SPEC
main69052-42060i199504-199709
sub69052-42050
69055BCYLINDER & KEY SET, BACK DOOR LOCK
main69055-42020i199404-199709
main69055-42020i199505
SOUTH AFRICA SPEC
main69055-42030i199404-199709
sub69055-42020
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-42020i199505
SOUTH AFRICA SPEC & W(KEY ILLLUMINATION)
main69057-42020i199404
main69057-42030i199404-199709
W(KEY ILLUMINATION)
sub69057-42020
main69057-42040i199404-199709
sub69057-42070
main69057-42070i199505
SOUTH AFRICA SPEC
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-42020i199505
SOUTH AFRICA SPEC
main69056-42020i199404-199709
main69056-42030i199404-199709
sub69056-42020
69503CYLINDER SET, LOCK
main69005-42020i199505
SOUTH AFRICA SPEC & W(POWER WINDOW)
main69005-42020i199404
main69005-42030i199404-199709
W(POWER WINDOW)
sub69005-42020
main69005-42030i199601
W(KEY ILLUMINATION)
sub69005-42020
main69005-42040i199404-199709
sub69005-42130
main69005-42060i199504
main69005-42060i199505
SOUTH AFRICA SPEC & W(POWER WINDOW)
main69005-42070i199504-199709
W(POWER WINDOW)
sub69005-42060
main69005-42070i199709
W(KEY ILLUMINATION)
sub69005-42060
main69005-42080i199504-199709
sub69005-42070
main69005-42130i199505
SOUTH AFRICA SPEC
sub69005-42020
main69005-42140i199505
SOUTH AFRICA SPEC
sub69005-42060
69503AKEY, BLANK
main90999-00185i199404-199709
MASTER KEY,W(*68)
main90999-00187i199404-199709
SUB KEY,W(*68)
sub90999-00200
main90999-00199i199505
MASTER KEY,W(*68),SOUTH AFRICA SPEC
main90999-00199i199404
MASTER KEY,W(*68)
main90999-00200i199404
SUB KEY,W(*68)
main90999-00200i199505
SUB KEY,W(*68),SOUTH AFRICA SPEC
69573PAD, IGNITION SWITCH LOCK CYLINDER
main69573-12030i199404-199503
main69573-42020i199503
69759CSNAP, BACK DOOR LOCK CYLINDER
main69759-24080i199404
69759RSNAP, FRONT DOOR LOCK CYLINDER
main69759-22080i199404
RH-ORANGE
main69759-22090i199404
LH-PINK

10 parts on this diagram · 1 diagram in section
