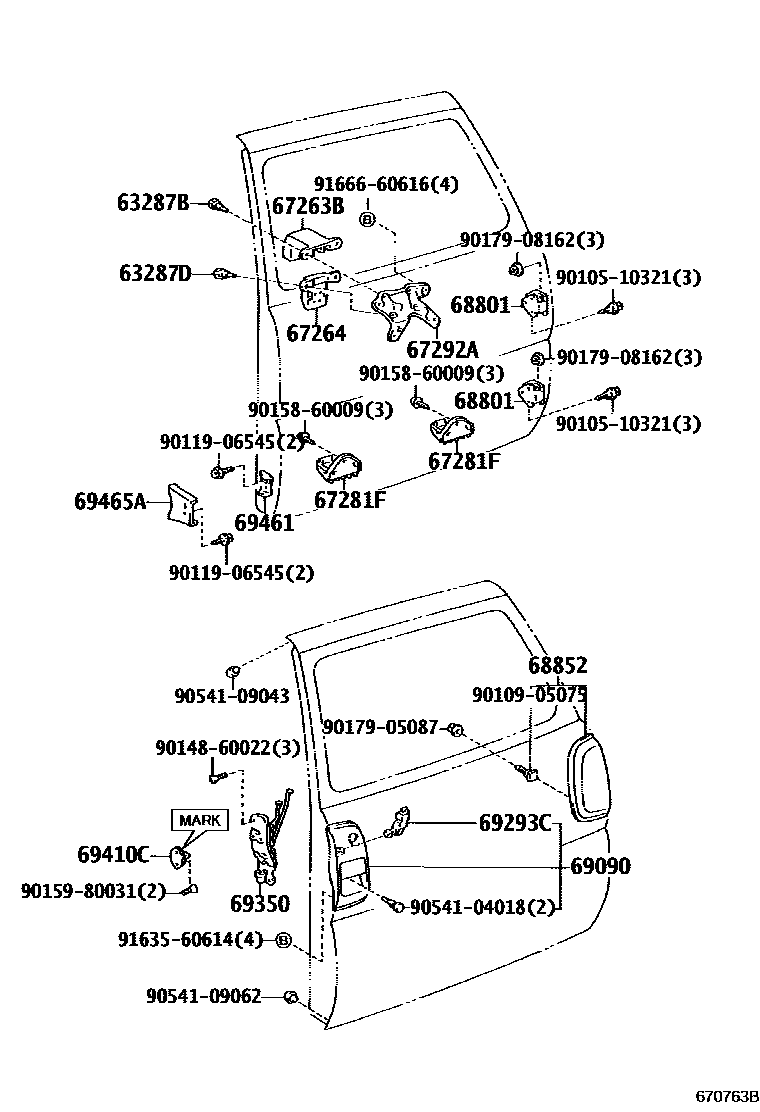

BACK DOOR LOCK & HINGE
63287DKNOB, REMOVABLE ROOF LOCK
sub63287-42011
67263BBRACKET, BACK DOOR STOPPER, NO.3
SHADOW GRAY,TRIM10,11
67264BRACKET, BACK DOOR STOPPER, NO.4
67281FSTOPPER, BACK DOOR, LOWER
SHADOW GRAY,TRIM10,11
67292ABASE, BACK DOOR STOPPER
68801HINGE SUB-ASSY, BACK DOOR, UPPER RH
68852COVER, BACK DOOR HINGE
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69293CSNAP, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
W(POWER DOOR LOCK)
W/O(POWER DOOR LOCK)
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
WITH(MARK=AISIN)
WITHOUT(MARK)
69461STOPPER, BACK DOOR SIDE MALE, RH
sub69461-42012
69465ASTOPPER, BACK DOOR SIDE FEMALE
9010510321
main90105-10321
9010905075
main90109-05075
9011906545
main90119-06545
9014860022
main90148-60022
9015860009
main90158-60009
9015980031
main90159-80031
9017905087
main90179-05087
9017908162
main90179-08162
9054104018
main90541-04018
9054109043
main90541-09043
9054109062
main90541-09062
9163560614
main91635-60614
9166660616
main91666-60616
27 parts on this diagram · 1 diagram in section
