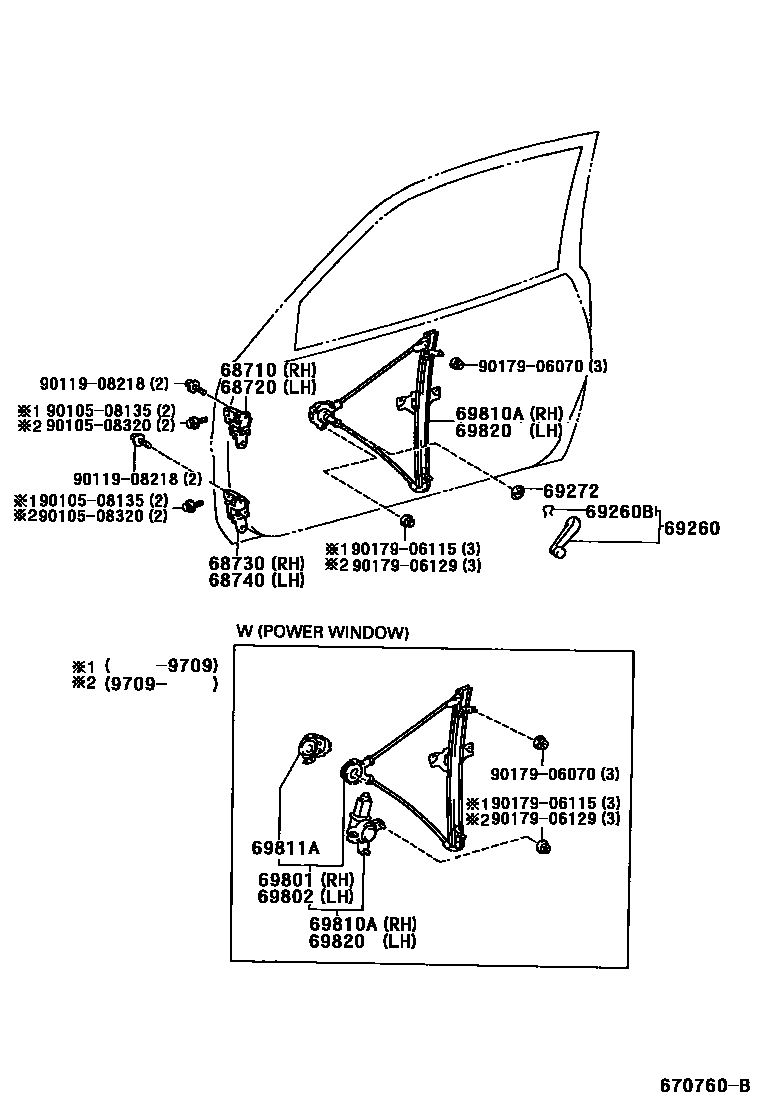

FRONT DOOR WINDOW REGULATOR & HINGE

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-22080i199404
sub68710-22081
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-22070i199404
sub68720-22071
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-22060i199404
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-22060i199404
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-20090-B0i199404-199709
BLUEISH GRAY,TRIM1#
sub69260-20090
main69260-20090-B1i199709-199808
SHADOW GRAY,TRIM10,12
sub69260-20090
main69260-20090-B1i199808
SHADOW GRAY,TRIM1#,10,12
sub69260-20090
main69260-20090-B1i199709
SHADOW GRAY,TRIM10,11
sub69260-20090
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i199404-199709
sub90520-01274
main90520-01274i199709
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69285-22010-08i199709-200008
NATURAL WHITE,TRIM10,12
sub69285-22010
main69285-22010-08i199404-199709
NATURAL WHITE,TRIM1#
sub69285-22010
main69285-22010-08i199709-200008
NATURAL WHITE,TRIM10,11
sub69285-22010
main69285-22010-08i199808-200008
NATURAL WHITE,TRIM10,11,12
sub69285-22010
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-42010i199404-199503
W(POWER WINDOW)
sub69801-42011
main69801-42011i199503-199511
sub69801-42012
main69801-42012i199511-199608
W(POWER WINDOW)
main69801-42020i199504-199511
sub69801-42021
main69801-42021i199511
W(POWER WINDOW)
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-42010i199404-199503
W(POWER WINDOW)
sub69802-42011
main69802-42011i199503-199511
sub69802-42012
main69802-42012i199511-199608
W(POWER WINDOW)
main69802-42020i199504-199511
sub69802-42021
main69802-42021i199511
W(POWER WINDOW)
69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH
main69810-42010i199404-199511
W(POWER WINDOW)
sub69810-42012
main69810-42012i199511-199709
W(POWER WINDOW)
sub69810-42013
main69810-42013i199709
W(POWER WINDOW)
main69810-42020i199404-199511
sub69810-42021
main69810-42021i199511
main69810-42030i199504-199511
sub69810-42031
main69810-42031i199511
main69810-42040i199504-199511
W(POWER WINDOW)
sub69810-42041
main69810-42041i199511-199709
W(POWER WINDOW)
main69810-42090i199709
W(POWER WINDOW)
main69810-42100i199709
W(POWER WINDOW)
69811APLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
main69811-42010i199504
RH
main69812-42010i199504
LH
main69813-20050i199503
RH
main69814-20050i199503
LH
69820REGULATOR ASSY, FRONT DOOR WINDOW, LH
main69820-42010i199404-199511
W(POWER WINDOW)
sub69820-42012
main69820-42012i199511-199709
W(POWER WINDOW)
sub69820-42013
main69820-42013i199709
W(POWER WINDOW)
main69820-42020i199404-199511
sub69820-42021
main69820-42021i199511
main69820-42030i199504-199511
sub69820-42031
main69820-42031i199511
main69820-42040i199504-199511
W(POWER WINDOW)
sub69820-42041
main69820-42041i199511-199709
W(POWER WINDOW)
main69820-42090i199709
W(POWER WINDOW)
main69820-42100i199709
W(POWER WINDOW)
9010508135
main90105-08135
9010508320
main90105-08320
9011908218
main90119-08218
9017906070
main90179-06070
9017906115
main90179-06115
9017906129
main90179-06129

18 parts on this diagram · 1 diagram in section
