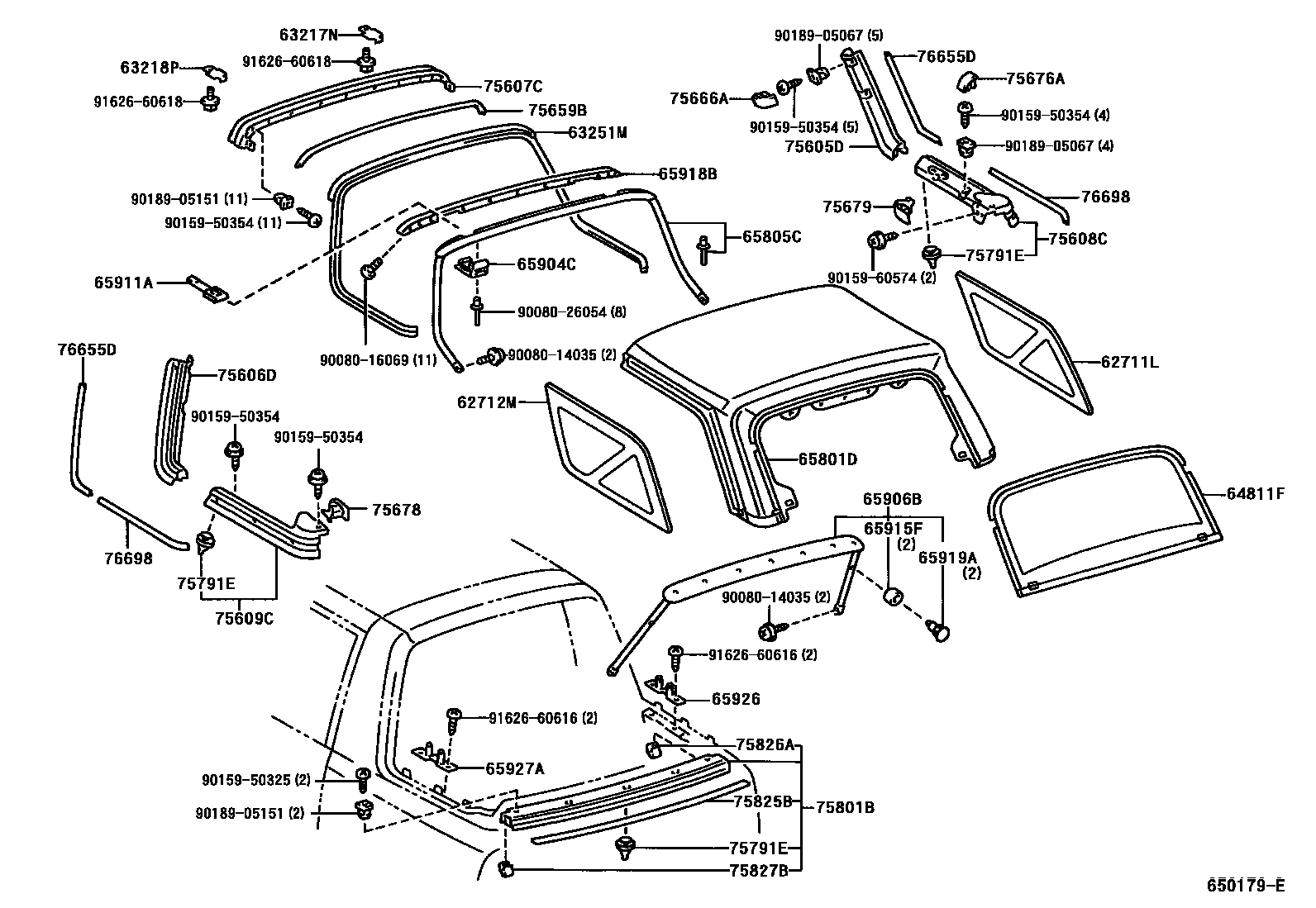

REAR BODY TOP CURTAIN & ROOF PANEL
62711LQUARTER WINDOW, TARPAULIN, RH
RED,K61 ,K62 ,K65 ,199 ,202 ,3L5
RED,K62 ,K65 ,K98 ,1B9 ,202 ,3L5
62712MQUARTER WINDOW, TARPAULIN, LH
RED,K61 ,K62 ,K65 ,199 ,202 ,3L5
RED,K62 ,K65 ,K98 ,1B9 ,202 ,3L5
63217NHOOK, TARPAULIN, RH
63218PHOOK, TARPAULIN, LH
63251MWEATHERSTRIP, TARPAULIN, OUTER
64811FBACK WINDOW, TARPAULIN
RED,K61 ,K62 ,K65 ,199 ,202 ,3L5
RED,K62 ,K65 ,K98 ,1B9 ,202 ,3L5
65801DTOP SUB-ASSY, COVER
RED,K62 ,K65 ,K98 ,1B9 ,202 ,3L5
RED,K61 ,K62 ,K65 ,199 ,202 ,3L5
65805CBOW SUB-ASSY, TOP COVER TARPAULIN, FRONT
65904CLATCH SUB-ASSY, TARPAULIN
65906BBOW SUB-ASSY, TARPAULIN, NO.2
65911ACOVER, TARPAULIN
65915FPAD, TARPAULIN COVER, REAR
65918BRETAINER, TARPAULIN COVER, LOWER
65919APIN, NO.1 BOW LOCATING
65926BRACKET, TARPAULIN RAIL PIVOT, RH
65927ABRACKET, TARPAULIN RAIL PIVOT, LH
75605DMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
sub75605-42130
75606DMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
75607CMOULDING SUB-ASSY, ROOF TOP
75608CMOULDING SUB-ASSY, QUARTER BELT, REAR RH
75609CMOULDING SUB-ASSY, QUARTER BELT, REAR LH
75659BPAD, ROOF MOULDING
sub75659-42010
75666ACOVER, QUARTER PANEL BACK MOULDING END, NO.1
75676ACOVER, QUARTER BELT MOULDING END, FRONT RH
75678COVER, QUARTER BELT MOULDING END, REAR RH
75679COVER, QUARTER BELT MOULDING END, REAR LH
75791ECLIP, BELT MOULDING SIDE
75801BMOULDING SUB-ASSY, BACK DOOR, OUTSIDE
sub75801-42010
75825BPAD, BACK DOOR OUTSIDE MOULDING, UPPER
sub75659-42010
75826APAD, BACK DOOR OUTSIDE MOULDING, RH
75827BPAD, BACK DOOR OUTSIDE MOULDING, LH
76655DPAD, QUARTER WINDOW OUTSIDE MOULDING
sub75659-42010
76698PAD, QUARTER BELT MOULDING
sub75659-42010
9008014035
main90080-14035
9008016069
main90080-16069
9008026054
main90080-26054
9015950325
main90159-50325
9015950354
main90159-50354
9015960574
main90159-60574
9018905067
main90189-05067
9018905151
main90189-05151
9162660616
main91626-60616
9162660618
main91626-60618
43 parts on this diagram · 1 diagram in section
