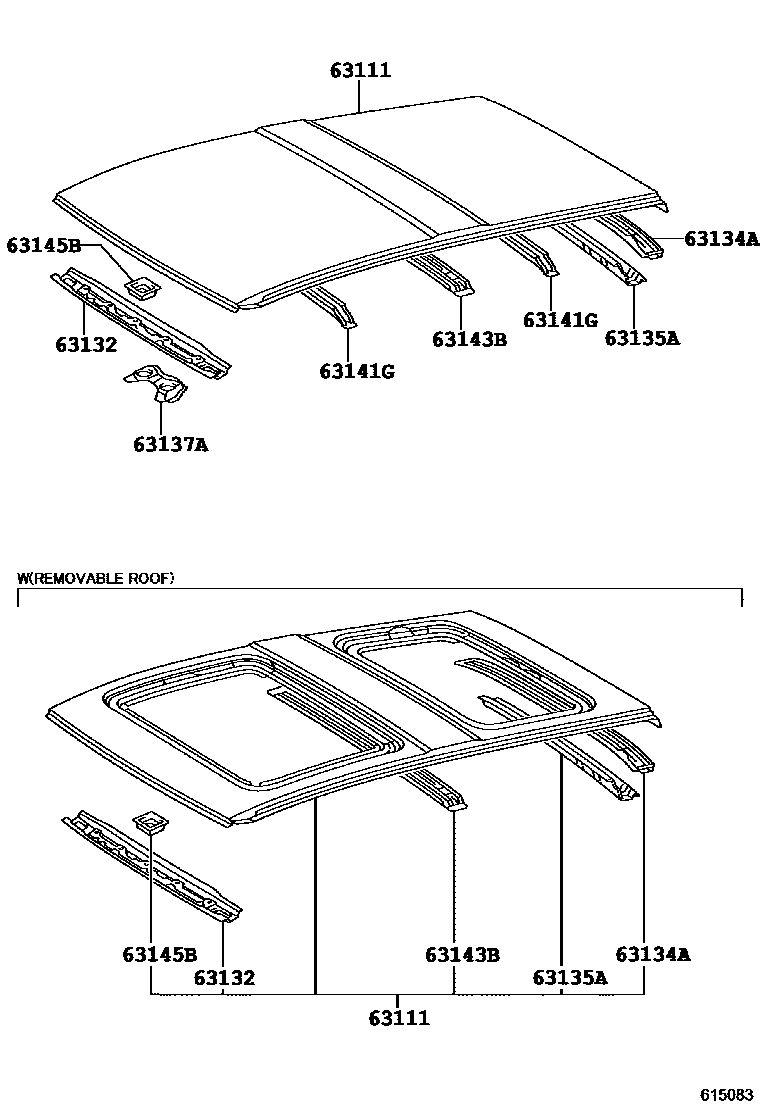

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

63111PANEL, ROOF

main63101-42020iSXA10..ARL,GCC,GEN199511-199704

W(REMOVABLE ROOF) OR W(MOON ROOF)

sub63101-42021

main63101-42020iSXA10..EUR199404-199704

W(REMOVABLE ROOF)

sub63101-42021

main63101-42021iSXA10..ARL,GCC,GEN199704-199709

W(REMOVABLE ROOF)

main63101-42021iSXA10..ARL,GCC,GEN199704-199709

W(REMOVABLE ROOF) OR W(MOON ROOF)

main63101-42060iSXA10..CVT199712

main63101-42900iSXA10..HT199709

W(MOON ROOF)

main63103-42900iSXA11199504

W(MOON ROOF)

main63111-42010iSXA10..ARL,GEN199404-199504

W/O(REMOVABLE ROOF)

main63111-42010iSXA10..HT199504

main63111-42030iSXA11199504

63132PANEL, WINDSHIELD HEADER, INNER

main63132-42010iSXA10199404

main63132-42020iSXA11199504

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-42010iSXA1#..HT199404

main63134-42020iSXA10..CVT199712

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-42010iSXA1#199404-199704

sub63135-42011

main63135-42011iSXA1#..HT199704

63137ABRACKET, DOME LAMP, NO.1

main63137-42010iSXA1#..HT199404

main63137-42020iSXA10..CVT199712

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-42010iSXA10..HT199404

main63141-42010iSXA10..HT199709

W(MOON ROOF)

main63141-42020iSXA11199504

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-42010iSXA10..HT199404

main63143-42020iSXA11199504

W(MOON ROOF)

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-42010iSXA10199404

8 parts on this diagram · 7 diagrams in section
