E
EPC Data

SIDE MEMBER

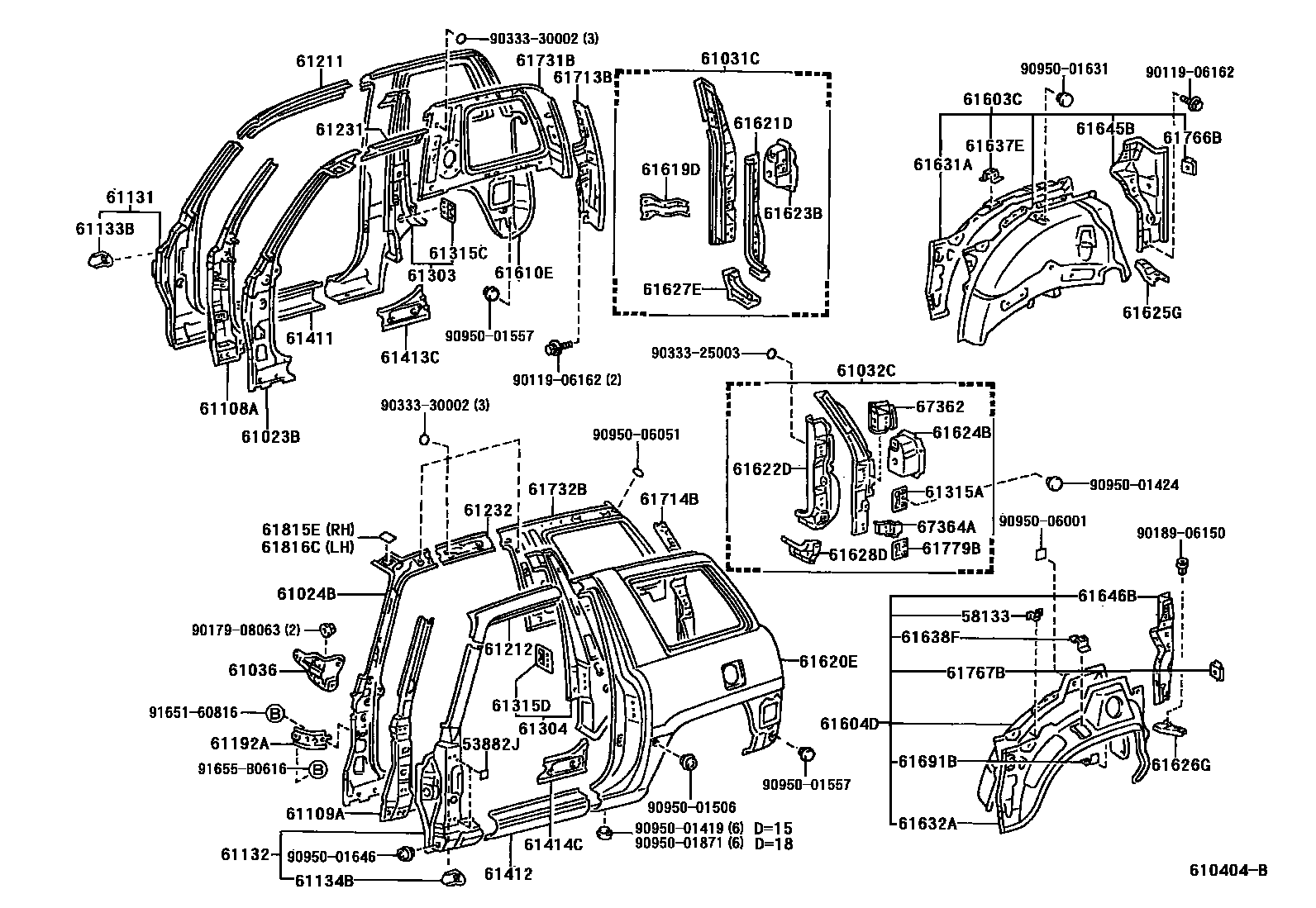

Parts diagram
53882JSEAL, FRONT FENDER
main53882-22080×4i199404
58133BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
main58133-22030i199404
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
main61023-42030i199504-199510
main61023-42031i199504-199510
main61023-42050i199709
main61023-42902i199404-199709
sub61023-42011
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
main61024-42040i199504-199510
main61024-42041i199504-199510
main61024-42060i199709
main61024-42903i199404-199709
sub61024-42021
61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH
main61031-42010i199404
main61031-42020i199504
main61031-42030i199712
61032CEXTENSION SUB-ASSY, QUARTER PANEL, REAR LH
main61032-42010i199404
main61032-42020i199504
main61032-42030i199712
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
main61166-42010i199404
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
main61108-42010i199404-199510
main61108-42011i199510-199709
main61108-42030i199709
main61108-42900i199709
main61108-42901i199709
W(MOON ROOF)
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
main61109-42010i199404-199510
main61109-42011i199510-199709
main61109-42030i199709
main61109-42900i199709
main61109-42901i199709
W(MOON ROOF)
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61110-42040i199608-199701
sub90950-01871
main61110-42041i199701-199709
sub90950-06108
main61110-42070i199709-200008
main61310-42010i199404-199504
W(ANTENNA HOLE)
main61310-42020i199404-199504
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61120-42040i199504-199608
sub90950-01871
main61120-42041i199701-199709
sub90950-06108
main61120-42070i199709-200008
main61320-42010i199404-199504
W(ANTENNA HOLE)
main61320-42020i199404-199504
61133BBRACKET, FRONT BODY PILLAR ,OUTER RH
main61133-12190i199404
61134BBRACKET, FRONT BODY PILLAR OUTER, LH
main61133-12190i199709
main61134-12190i199404-199709
61192ABRACKET, COMPUTER TO COWL SIDE, NO.2
main61192-42010i199404
61211RAIL, ROOF SIDE, OUTER RH
main61211-42010i199404-199504
main61211-42011i199608-200008
main61211-42020i199504-199608
main61211-42030i199504-200008
W(ANTENNA HOLE)
main61211-42040i199504-199608
W(ANTENNA HOLE)
61212RAIL, ROOF SIDE, OUTER LH
main61212-42010i199404-199504
main61212-42011i199504
main61212-42020i199504
main61212-42030i199504
W(ANTENNA HOLE)
main61212-42040i199504
W(ANTENNA HOLE)
61231RAIL, ROOF SIDE, INNER RH
main61231-42010i199404-199709
main61231-42040i199709
main61231-42050i199709
W(MOON ROOF)
61232RAIL, ROOF SIDE, INNER LH
main61232-42010i199404-199709
main61232-42040i199709
main61232-42050i199709
W(MOON ROOF)
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
main61303-42010i199404-199508
main61303-42011i199508-199608
main61303-42020i199504-199709
main61303-42030i199608-199709
main61303-42050i199709
main61303-42060i199712
main61303-42900i199709
61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
main61304-42010i199404-199508
main61304-42011i199508-199608
main61304-42020i199504-199709
main61304-42030i199608-199709
main61304-42050i199709
main61304-42060i199712
main61304-42900i199709
61315ARETAINER, DOOR LOCK STRIKER
main61315-16020i199508
main61315-22020i199404-199508
61315CRETAINER, DOOR LOCK STRIKER, RH
main61315-16020i199508-199709
main61315-22020i199404-199508
61315DRETAINER, DOOR LOCK STRIKER, LH
main61315-16020i199508-199709
main61315-22020i199404-199508
61411PANEL, ROCKER, OUTER RH
main61411-42010i199404-199601
sub90950-01826
main61411-42011i199601-199701
sub90950-01871
main61411-42012i199701-199709
sub90950-01871
main61411-42021i199504-199508
main61411-42022i199508-199701
sub90950-01871
main61411-42023i199701-199709
sub90950-01871
main61411-42050i199709
main61411-42060i199709
61412PANEL, ROCKER, OUTER LH
main61412-42010i199404-199601
sub90950-01826
main61412-42011i199601-199701
sub90950-01871
main61412-42012i199701-199709
sub90950-01871
main61412-42021i199504-199508
main61412-42022i199508-199701
sub90950-01871
main61412-42023i199701-199709
sub90950-01871
main61412-42050i199709
main61412-42060i199709
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
main61413-42010i199404-199709
main61413-42020i199504-199709
main61413-42030i199709
main61413-42040i199709
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
main61414-42010i199404-199709
main61414-42020i199504-199709
main61414-42030i199709
main61414-42040i199709
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
main61603-42010i199404-199411
main61603-42030i199709
main61603-42040i199709
main61603-42060i199712
main61603-42900i199411-199509
main61603-42901i199504-199511
sub90950-06002
main61603-42902i199509-199511
sub90950-06002
main61603-42903i199511-199709
main61603-42904i199511-199709
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
main61604-42010i199404-199411
main61604-42040i199709
main61604-42050i199709
main61604-42070i199712
main61604-42900i199411-199601
sub90950-06002
main61604-42901i199504-199601
sub90950-06002
main61604-42902i199601-199709
main61604-42903i199601-199709
61610EFENDER ASSY, REAR RH
main61610-42010i199404-199506
main61610-42011i199506-199701
sub90950-01871
main61610-42012i199701-199709
sub90950-01871
main61610-42020i199504-199508
main61610-42021i199508-199701
sub90950-01871
main61610-42022i199701-200008
main61610-42030i199608-199701
W(OVER FENDER)
sub90950-01871
main61610-42031i199701-199709
W(OVER FENDER)
sub90950-01871
main61610-42040i199608-199701
W(OVER FENDER)
sub90950-01871
main61610-42041i199701-200005
W(OVER FENDER)
main61610-42060i199712-200005
main61610-42070i199712-200005
W(OVER FENDER)
main61610-42080i199709-200008
main61610-42090i199709-200005
W(OVER FENDER)
61619DREINFORCEMENT, QUARTER PANEL, RH
main61619-42010i199404
61620EFENDER ASSY, REAR LH
main61620-42010i199404-199506
main61620-42011i199506-199608
sub90950-01871
main61620-42012i199701-199709
sub90950-01871
main61620-42020i199504-199508
main61620-42021i199508-199701
sub90950-01871
main61620-42022i199701-200008
main61620-42040i199608-199701
W(OVER FENDER)
sub90950-01871
main61620-42041i199701-199709
W(OVER FENDER)
sub90950-01871
main61620-42050i199608-199701
W(OVER FENDER)
sub90950-01871
main61620-42051i199701-200005
W(OVER FENDER)
main61620-42070i199712-200005
main61620-42080i199712-200005
W(OVER FENDER)
main61620-42090i199709-200008
main61620-42110i199709-200008
W(ANTENNA HOLE)
61621DTROUGH, BACK DOOR OPENING, RH
main61621-42010i199404
61622DTROUGH, BACK DOOR OPENING, LH
main61622-42010i199404
61623BTROUGH, BACK DOOR OPENING, REAR RH
main61623-42010i199404
61624BTROUGH, BACK DOOR OPENING, REAR LH
main61624-42010i199404
61625GEXTENSION, QUARTER PANEL, REAR RH
main61625-42010i199404
61626GEXTENSION, QUARTER PANEL, REAR LH
main61626-42010i199404
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
main61627-42010i199404
main61627-42020i199504
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
main61628-42010i199404
main61628-42020i199504
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-42010i199404-199608
main61631-42011i199608-199709
main61631-42020i199504-199608
main61631-42021i199608
main61631-42030i199709
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-42010i199404-199608
main61632-42011i199608-199709
main61632-42020i199504-199608
main61632-42021i199608
main61632-42040i199709
61637EBRACKET, QUARTER WHEEL HOUSE
main61637-42010×2i199404
61638FBRACKET, QUARTER WHEEL HOUSE, LH
main61637-42010i199404
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
main61645-42010i199404-199509
main61645-42011i199509-199811
main61645-42020i199504-199604
main61645-42021i199604
main61645-42900i199811
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
main61646-42010i199404-199811
main61646-42020i199504-199604
main61646-42021i199604
main61646-42900i199811
61691BBRACKET, FUEL TANK PROTECTOR
main61691-42010×2i199404
61713BREINFORCE, ROOF SIDE, OUTER RH
main61713-42010i199404-199507
main61713-42011i199507
main61713-42020i199712
61714BREINFORCE, ROOF SIDE, OUTER LH
main61714-42010i199404-199507
main61714-42011i199507
main61714-42020i199712
61731BPANEL, ROOF SIDE, INNER RH
main61705-42020i199504-199709
sub61731-42021
sub61665-10010
sub61735-42010
sub61747-42010
sub61766-42020
main61705-42060i199709
sub61731-42021
sub61665-10010
sub61735-42010
sub61747-42010
sub61766-42020
main61731-42010i199404-199507
main61731-42011i199507-199709
main61731-42030i199709
sub61731-42040
main61731-42050i199712
61732BPANEL, ROOF SIDE, INNER LH
main61706-42020i199504-199709
sub61732-42020
sub61665-10010
sub61736-42010
sub61748-42010
sub61766-42020
main61706-42070i199709
sub61732-42020
sub61665-10010
sub61736-42010
sub61748-42010
sub61766-42020
main61732-42010i199404-199507
main61732-42011i199507-199709
main61732-42030i199709
main61732-42040i199709
W(MOON ROOF)
main61732-42050i199712
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
main61766-42010i199404
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
main61766-42010i199404
61779BPLATE, BACK DOOR OPENING, LOWER LH
main61779-42010i199404
61815ECOVER, ROOF SIDE, INNER UPPER RH
main61825-12010i199704-199709
main63161-22010i199404-199704
61816CCOVER, ROOF SIDE, INNER UPPER LH
main61825-12010i199704-199709
main63161-22010i199404-199704
67362REINFORCEMENT, BACK DOOR UPPER HINGE, LH
main67362-42010i199404
67364AREINFORCEMENT, BACK DOOR LOWER HINGE, LH
main67364-42010i199404
9011906162
main90119-06162
9017908063
main90179-08063
9018906150
main90189-06150
9033325003
main90333-25003
9033330002
main90333-30002
9095001419
main90950-01419
9095001424
main90950-01424
9095001506
main90950-01506
9095001557
main90950-01557
9095001631
main90950-01631
9095001646
main90950-01646
9095001871
main90950-01871
9095006001
main90950-06001
9095006051
main90950-06051
9165160816
main91651-60816
91655B0616
main91655-B0616

74 parts on this diagram · 9 diagrams in section
