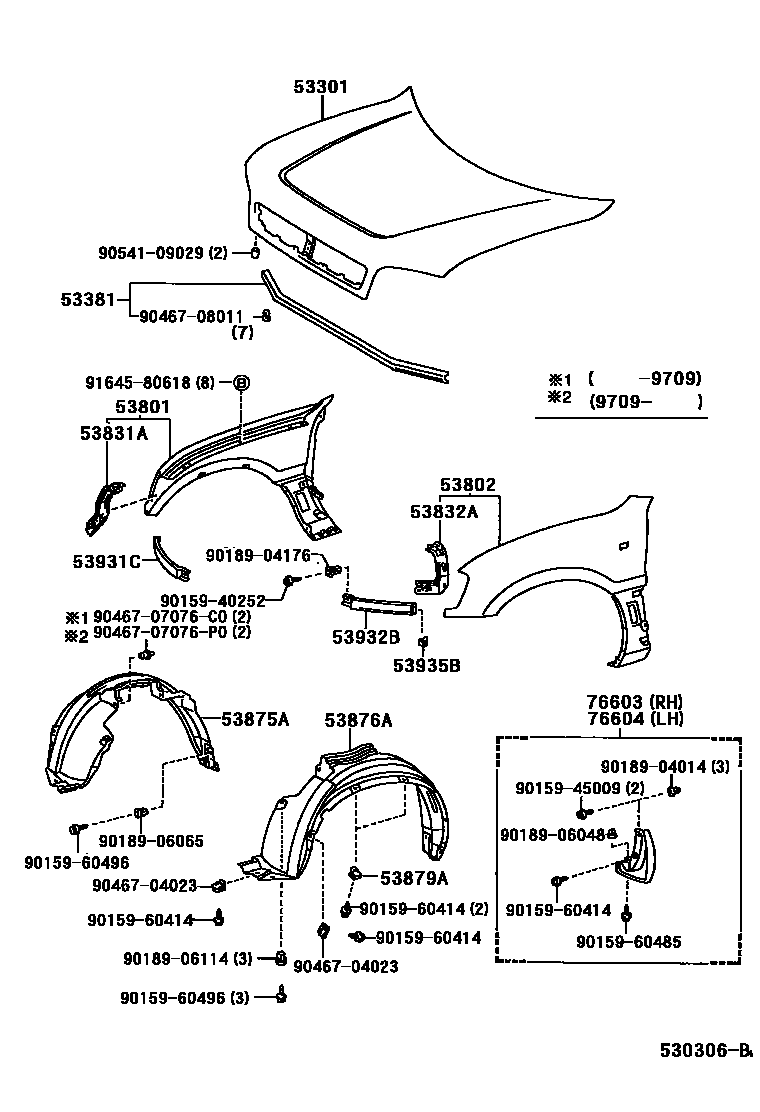

HOOD & FRONT FENDER
53381SEAL, HOOD TO RADIATOR SUPPORT
53801FENDER SUB-ASSY, FRONT RH
W(BUMPER EXTENTION)
53802FENDER SUB-ASSY, FRONT LH
W(BUMPER EXTENTION)
53831APANEL, FRONT FENDER SIDE, UPPER RH
53832APANEL, FRONT FENDER SIDE, UPPER LH
53879ARETAINER, FRONT FENDER LINER
53931CPANEL, FRONT END
53932BPANEL, FRONT END, LH
53935BPROTECTOR, FRONT END PANEL
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
HONG KONG SPEC
HONGKONG SPEC
SINGAPORE SPEC
HONG KONG SPEC OR SINGAPORE SPEC
PAPUA NEW GUINEA SPEC
W(235/60R16 TIRE)
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
HONGKONG SPEC
SINGAPORE SPEC
HONG KONG SPEC
HONG KONG SPEC OR SINGAPORE SPEC
PAPUA NEW GUINEA SPEC
W(235/60R16 TIRE)
9015940252
main90159-40252
9015945009
main90159-45009
9015960414
main90159-60414
9015960485
main90159-60485
9015960496
main90159-60496
9018904014
main90189-04014
9018904176
main90189-04176
9018906048
main90189-06048
9018906065
main90189-06065
9018906114
main90189-06114
9046704023
main90467-04023
9046707076C0
main90467-07076C0
9046707076P0
main90467-07076P0
9046708011
main90467-08011
9054109029
main90541-09029
9164580618
main91645-80618
30 parts on this diagram · 1 diagram in section
