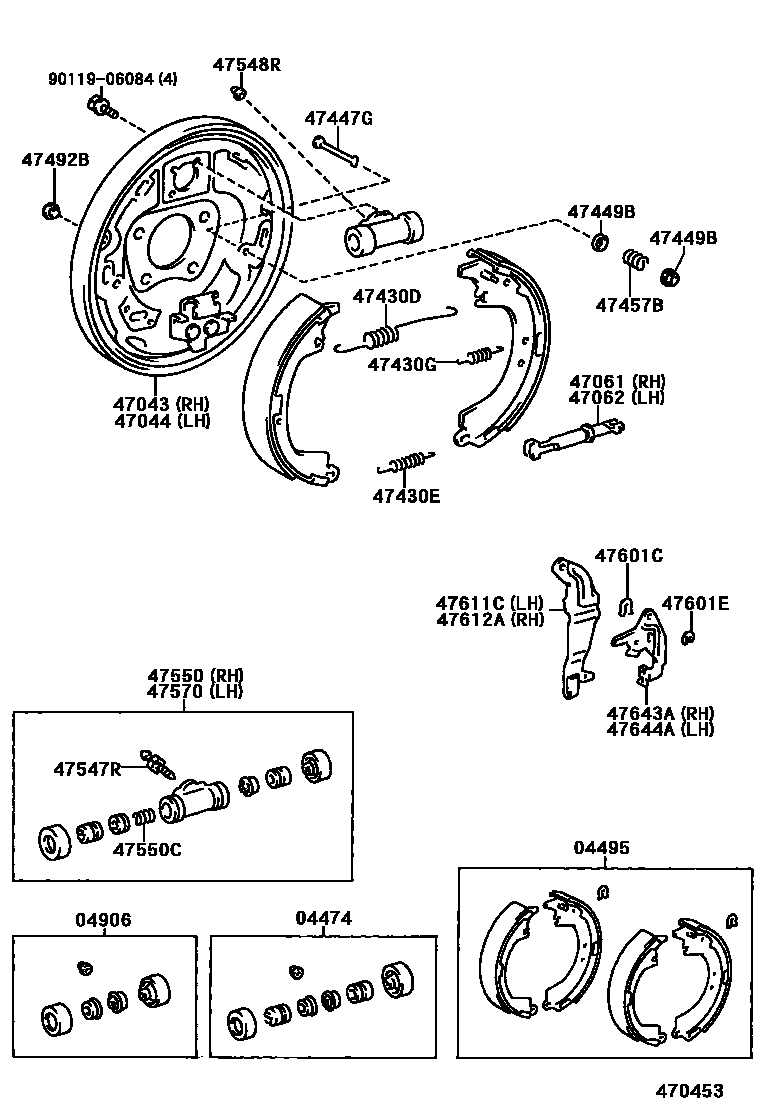

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-42010iSXA1#¥4,460199404-199808

04495SHOE KIT, REAR BRAKE

main04495-42010iSXA1#¥8,800199404-199712

main04495-42030iSXA1#..GCC,GEN¥9,100199709-199808

04906CUP KIT, REAR WHEEL CYLINDER

main04906-42010iSXA1#¥960199404-199808

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-42010iSXA10¥4,780199404-199504

sub47043-42011¥5,100

sub90105-10251¥230

main47043-42011iSXA1#¥5,100199504-199508

sub47043-42012¥5,100

main47043-42012iSXA1#¥5,100199508-199604

sub47043-42013¥5,100

sub90105-10203¥240

main47043-42013iSXA1#¥5,100199604-199812

sub47043-42014¥5,100

main47043-42014iSXA1#..EUR,GCC,GEN¥5,100199812

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-42010iSXA10¥4,780199404-199504

sub47044-42011¥5,100

sub90105-10251¥230

main47044-42011iSXA1#¥5,100199504-199508

sub47044-42012¥5,100

main47044-42012iSXA1#¥5,100199508-199604

sub47044-42013¥5,100

sub90105-10203¥240

main47044-42013iSXA1#¥5,100199604-199812

sub47044-42014¥5,100

main47044-42014iSXA1#..EUR,GCC,GEN¥5,100199812

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-33010iSXA1#¥2,170199404-199808

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-33010iSXA1#¥2,170199404-199808

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29008iSXA1#¥550199404-199808

RH

main90506-29009iSXA1#¥550199404-199808

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iSXA1#¥230199404-199808

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iSXA1#¥190199404-199808

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iSXA1#¥120199404-199808

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iSXA1#¥120199404-199808

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017iSXA1#¥190199404-199808

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iSXA1#¥130199404-199808

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-26010iSXA1#¥370199404-199808

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iSXA1#¥160199404-199808

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-42010iSXA1#¥4,950199404-199808

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079iSXA1#¥90199404-199808

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-42010iSXA1#¥4,950199404-199808

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iSXA1#¥110199404-199808

T=1.2

47601ERING, E(FOR REAR BRAKE)

main96160-00500iSXA1#¥100199404-199808

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-33010iSXA1#¥1,040199404-199808

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-33010iSXA1#¥1,040199404-199808

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-33010iSXA1#¥360199404-199808

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-33010iSXA1#¥360199404-199808

9011906084

main90119-06084¥100

26 parts on this diagram · 1 diagram in section
