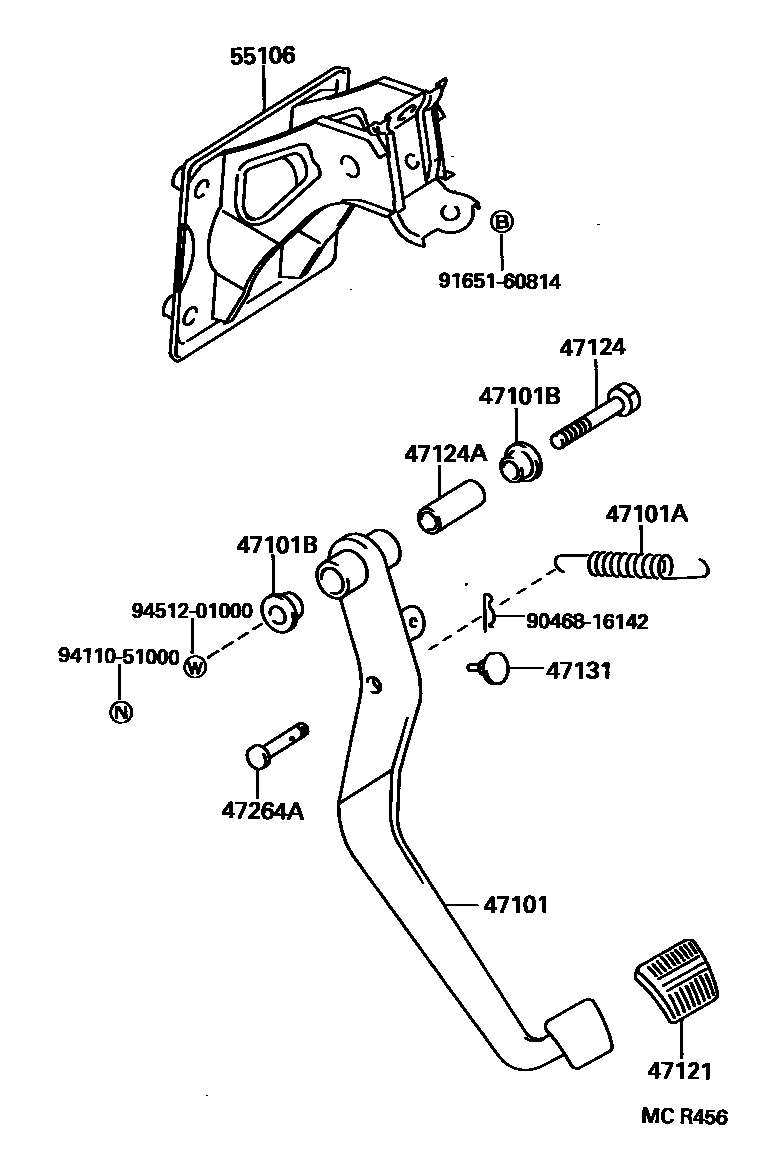

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-42010iSXA1#..RHD..MTM199404-199709

main47101-42011iSXA1#..RHD..MTM199709

main47101-42020iSXA1#..RHD..ATM199404-199709

main47101-42021iSXA1#..RHD..ATM199709

main47101-42030iSXA1#..LHD..MTM199404-199507

sub47101-42031

main47101-42031iSXA1#..LHD..MTM199507-199808

sub47101-42032

main47101-42032iSXA1#..LHD..MTM199808

main47101-42040iSXA1#..LHD..ATM199404-199507

sub47101-42041

main47101-42041iSXA1#..LHD..ATM199507-199808

sub47101-42042

main47101-42042iSXA1#..LHD..ATM199808

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14034iSXA1#199404

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iSXA1#199404

47121PAD, BRAKE PEDAL

main31321-14020iSXA1#..MTM199404

main47121-14010iSXA1#..ATM199404

47124SHAFT, BRAKE PEDAL

main90101-10015iSXA1#199404

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iSXA1#199404

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iSXA1#199404

47264APIN(FOR PUSH ROD)

main47148-35010iSXA1#199404-199507

main90249-10064iSXA1#199507-199709

main90249-10144iSXA1#..RHD199709

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-42010iSXA1#..RHD199404-199709

sub55106-42050

main55106-42020iSXA1#..LHD199404-199709

sub55106-42060

main55106-42050iSXA1#..RHD199709

main55106-42060iSXA1#..LHD199709-199808

main55106-42070iSXA1#..LHD199808

9046816142

main90468-16142

9165160814

main91651-60814

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 2 diagrams in section
