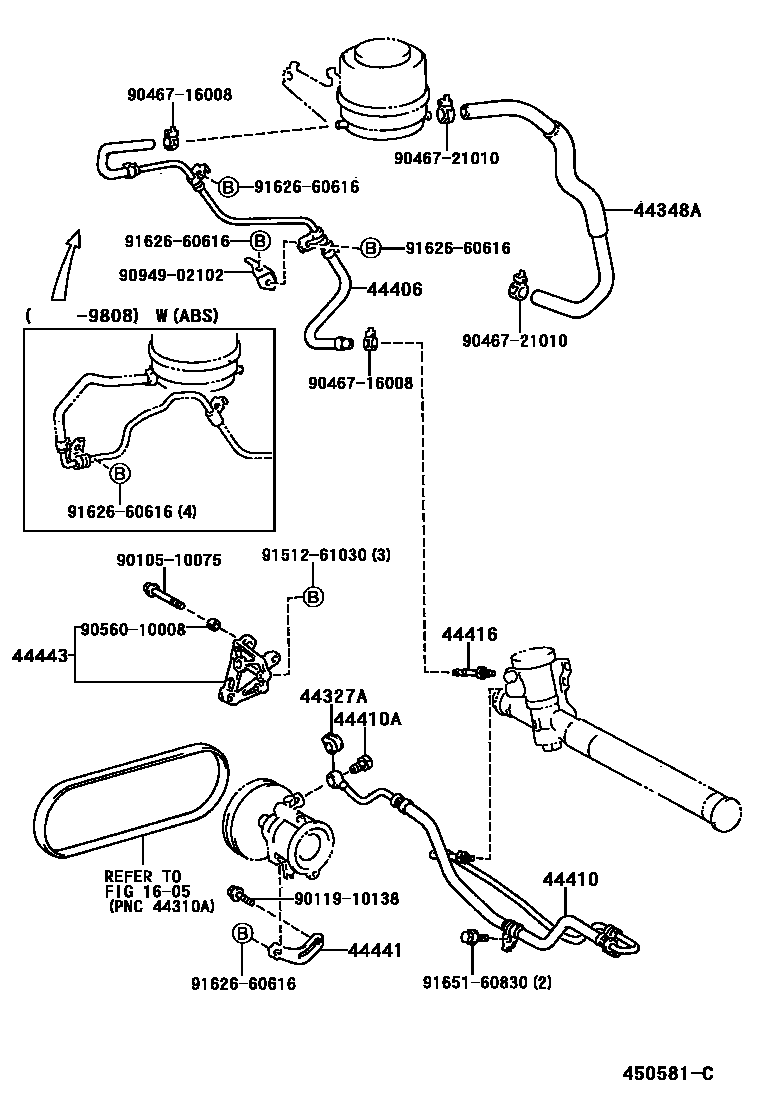

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iSXA1#199502-199508

main44327-26020iSXA10199404-199502

main44327-30030iSXA1#199508

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-42010iSXA1#199404-199608

main44348-42011iSXA1#199608

44406TUBE SUB-ASSY, RETURN

main44406-42010iSXA1#..ARL,EUR,GCC199404-199608

W(ABS)

main44406-42020iSXA1#199404-199608

main44406-42021iSXA1#199608-199808

main44406-42031iSXA1#..LHD199608-199808

W(ABS)

main44406-42040iSXA1#..RHD199709-199808

main44406-42050iSXA1#..RHD199709-199808

W(ABS)

main44406-42070iSXA1#199808

44410TUBE ASSY, PRESSURE FEED

main44410-42010iSXA10..LHD199404-199502

sub44410-42011

sub44327-12010

sub96341-41603

main44410-42011iSXA1#..LHD199502-199808

main44410-42020iSXA10..RHD199404-199502

sub44410-42021

sub44327-12010

sub96341-41603

main44410-42021iSXA1#..RHD199502-199709

sub44410-42022

sub91651-60830

main44410-42022iSXA1#..RHD199709-199808

main44410-42030iSXA1#..RHD199808

main44410-42040iSXA1#..LHD199808-199811

sub44410-42050

sub91651-60830

main44410-42050iSXA1#..LHD199811

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16014iSXA10199404-199502

main96341-41603iSXA1#199502

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-42010iSXA1#..LHD199404-199510

sub44420-42010

main44416-42020iSXA1#..RHD199404

main44420-42010iSXA1#..LHD199510

44441BRACKET, PUMP, FRONT

main44441-32010iSXA1#199404

44443BRACKET, PUMP

main44443-32070iSXA1#199404

9010510075

main90105-10075

9011910138

main90119-10138

9046716008

main90467-16008

9046721010

main90467-21010

9056010008

main90560-10008

9094902102

main90949-02102

9151261030

main91512-61030

9162660616

main91626-60616

9165160830

main91651-60830

18 parts on this diagram · 2 diagrams in section
