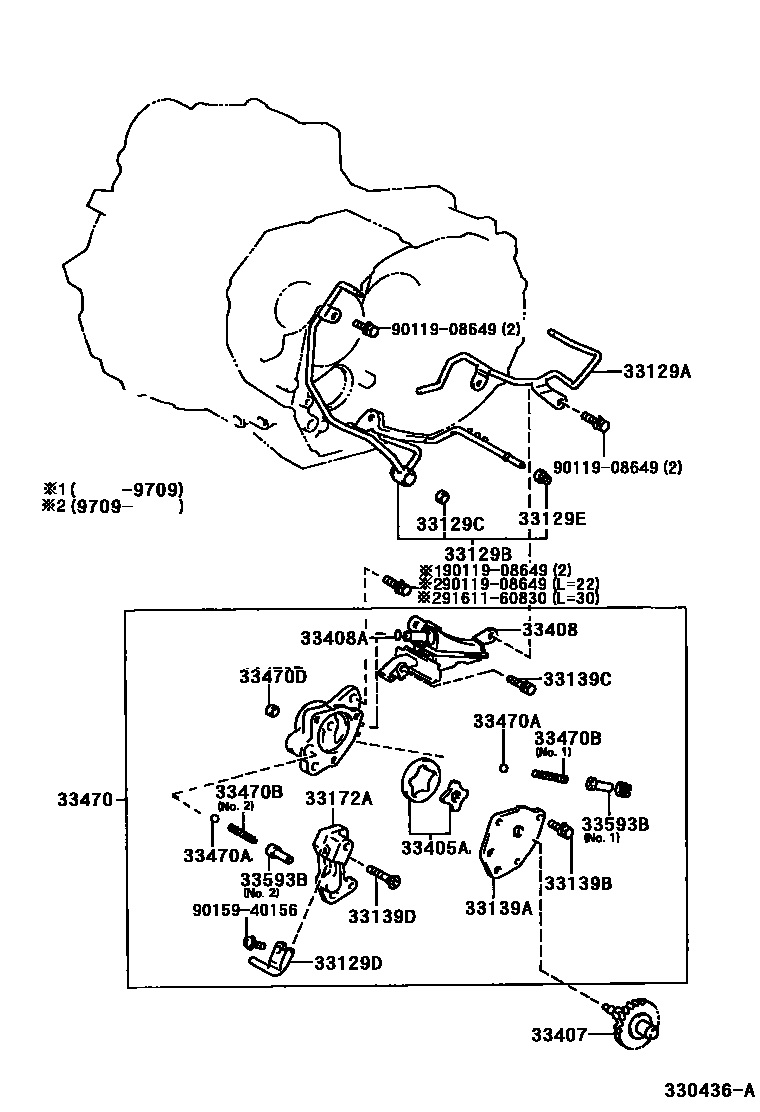

OIL PUMP, OIL COOLER & PIPE (MTM)

33129APIPE, MANUAL TRANSMISSION OIL, NO.1

main33129-32010i199404-200008

33129BPIPE, MANUAL TRANSMISSION OIL, NO.2

main33106-12040i199404-200008

33129CGASKET(FOR MANUAL TRANSMISSION OIL PIPE)

main90430-09004i199404-200008

33129DPIPE, TRANSMISSION OIL, NO.3

main33129-20040i199404-200008

33129EBUSH(FOR MANUAL TRANSMISSION OIL PIPE)

main90389-05012i199404-200008

33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)

main33139-20020i199404-200008

33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90119-06199i199404-200008

33139CBOLT(FOR TRANSMISSION OIL PUMP COVER)

main90119-06268i199404-200008

33139DSCREW(FOR TRANSMISSION OIL PUMP COVER)

main90149-60064i199404-200008

33172ABY-PASS, TRANSMISSION OIL PUMP

main33172-20020i199404-200008

33405AROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP

main33405-20020i199404-200008

33407GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE

main33407-42010i199404-200008

33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL

main33408-20020i199404-200006

sub33408-20021

main33408-20021i200006-200008

33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19012i199404-200008

33470PUMP ASSY, MANUAL TRANSMISSION OIL

main33470-20030i199404-200006

sub33470-20031

main33470-20031i200006-200008

33470ABALL (FOR MANUAL TRANSMISSION OIL PUMP)

main90360-09001i199404-200008

33470BSPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)

main90501-07062i199404-200008

NO.2

main90501-08094i199404-200008

NO.1

33470DGASKET (FOR MANUAL TRANSMISSION OIL PUMP)

main90430-09004i199404-200008

33593BHOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)

main33593-20020i199404-200008

NO.1

main33593-20030i199404-200008

NO.2

9011908649

main90119-08649

9015940156

main90159-40156

9161160830

main91611-60830

22 parts on this diagram · 2 diagrams in section
