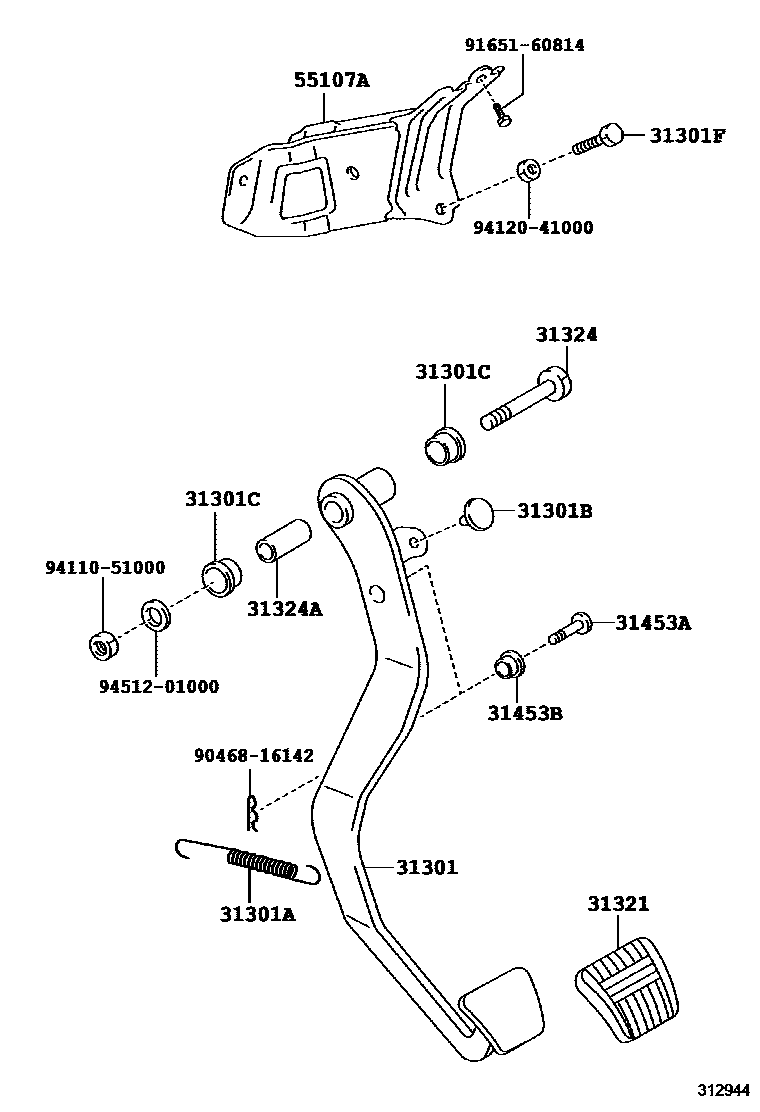

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-42010iSXA1#..RHD..MTM199404

main31301-42020iSXA1#..LHD..MTM199404

sub31301-42030

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14020iSXA1#..LHD..MTM199404

main90507-14024iSXA1#..RHD..MTM199404

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iSXA1#..MTM199404

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iSXA1#..MTM199404

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iSXA1#..MTM199404

31321PAD, CLUTCH PEDAL

main31321-14020iSXA1#..MTM199404

31324SHAFT, CLUTCH PEDAL

main90101-10015iSXA1#..MTM199404

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iSXA1#..MTM199404

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iSXA1#..MTM199404

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iSXA1#..MTM199404

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-42010iSXA1#..RHD..MTM199404

main55107-42020iSXA1#..LHD..MTM199404

sub55107-42030

9046816142

main90468-16142

9165160814

main91651-60814

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

16 parts on this diagram · 3 diagrams in section
