ENGINE OVERHAUL GASKET KIT

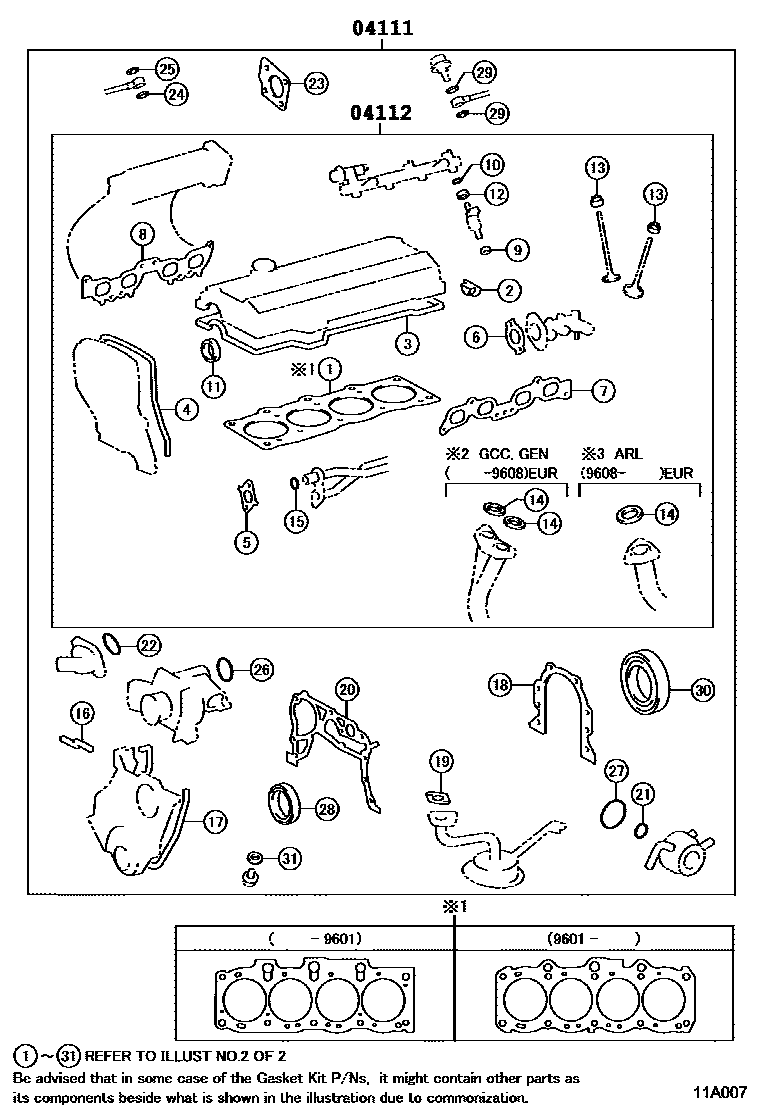

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-74490i199404-199508
main04111-74491i199508-199601
main04111-74492i199601-199608
main04111-74590i199608-199610
main04111-74591i199610-199612
sub04111-74592
main04111-74592i199612
04112GASKET KIT, ENGINE VALVE GRIND
main04112-74490i199404-199601
main04112-74491i199601-199608
main04112-74560i199608-199610
main04112-74561i199610-199612
sub04112-74562
main04112-74562i199612

2 parts on this diagram · 2 diagrams in section
