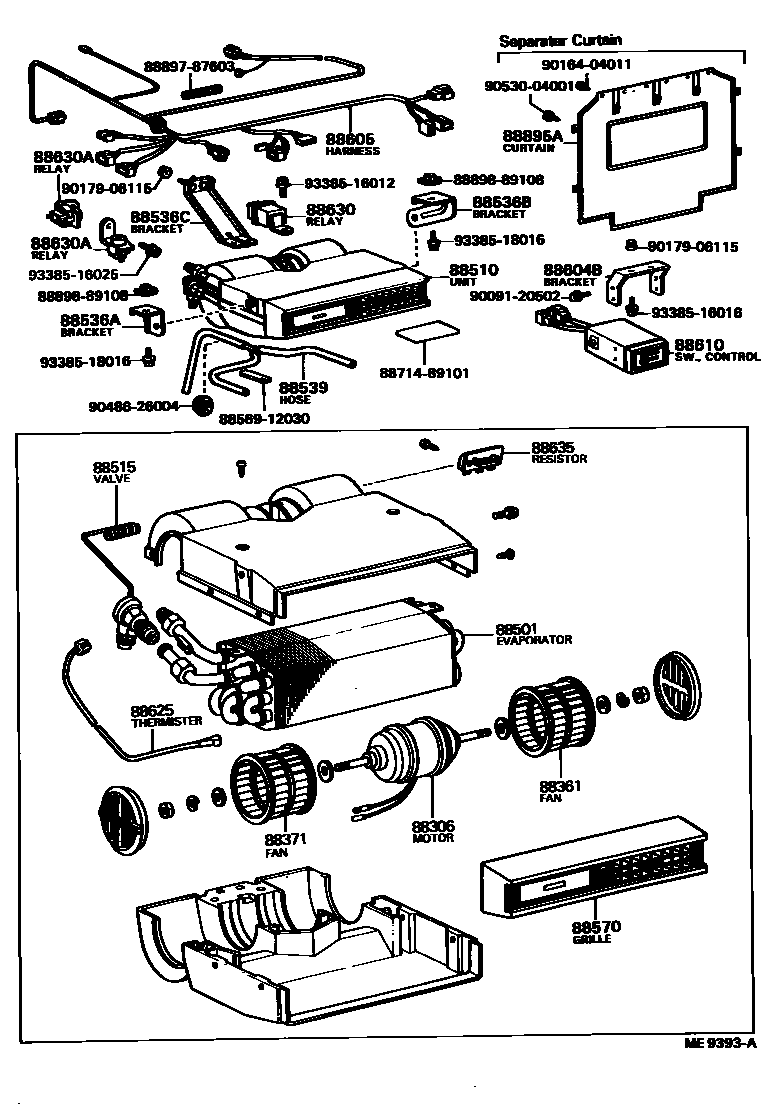

HEATING & AIR CONDITIONING - COOLER UNIT

88306MOTOR SUB-ASSY, COOLER BLOWER, NO.1

main88550-30300iLD10198201-198404

88361FAN, COOLER BLOWER, NO.1

main88541-10010iLD10198201-198404

88371FAN, COOLER BLOWER, NO.2

main88541-10020iLD10198201-198404

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30531iLD10198201-198404

88510UNIT ASSY, COOLER

main88510-30671iLD10198201-198210

main88510-87602iLD10198210-198404

88515VALVE, COOLER EXPANSION

main88515-12051iLD10198201-198404

88536ABRACKET, COOLING UNIT, NO.2

main88536-87603iLD10198201-198404

88536BBRACKET, COOLING UNIT, NO.3

main88536-87601iLD10198201-198404

88536CBRACKET, COOLING UNIT, NO.4

main88536-87604iLD10198201-198404

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-87603iLD10198201-198404

88570GRILLE SUB-ASSY, COOLER AIR OUTLET

main88570-30600iLD10198201-198404

88604BBRACKET, SWITCH, NO.1

main88649-87607iLD10198201-198404

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-87608iLD10198201-198404

88610SWITCH ASSY, COOLER CONTROL

main88610-87601iLD10198201-198404

88625THERMISTOR, COOLER, NO.1

main88625-12040iLD10198201-198404

sub88625-30480

88630RELAY ASSY, COOLER

main85913-14010iLD10198201-198404

88630ARELAY ASSY, COOLER

main88630-60020iLD10198201-198404

88635RESISTOR, COOLER UNIT BLOWER

main88635-30370iLD10198201-198404

sub88635-0B010

88895ACURTAIN ASSY, SEPARATE

main88895-87605iLD10198201-198404

8856912030CLAMP (FOR COOLER RELAY)

main88569-12030

8871489101HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-89101

8889787603VALVE, COOLER MAGNET

main88897-87603

8889889108TUBE SUB-ASSY, EQUALIZER

main88898-89108

9009120502

main90091-20502

9016404011

main90164-04011

9017906115

main90179-06115

9048626004

main90486-26004

9053004001

main90530-04001

9338516012

main93385-16012

9338516016

main93385-16016

9338516025

main93385-16025

9338518016

main93385-18016

32 parts on this diagram · 1 diagram in section
