TOOL BOX & LICENSE PLATE BRACKET

58771CLAMP, JACK, NO.1

main74713-87001iLD10198201-198404

75135BRACKET, COMBINATION REAR LAMP, RH

main65161-87602iLD10198201-198210

main65161-87605iLD10198210-198404

75136BRACKET, COMBINATION REAR LAMP, LH

main65161-87602iLD10198201-198210

main65161-87605iLD10198210-198404

75137BRACKET, LICENSE PLATE LAMP

main75102-87602iLD10198201-198404

75217BAND, TOOL BAG

main74701-87601iLD10198201-198404

9012208011

main90122-08011

9165140614

main91651-40614

9461310800

main94613-10800

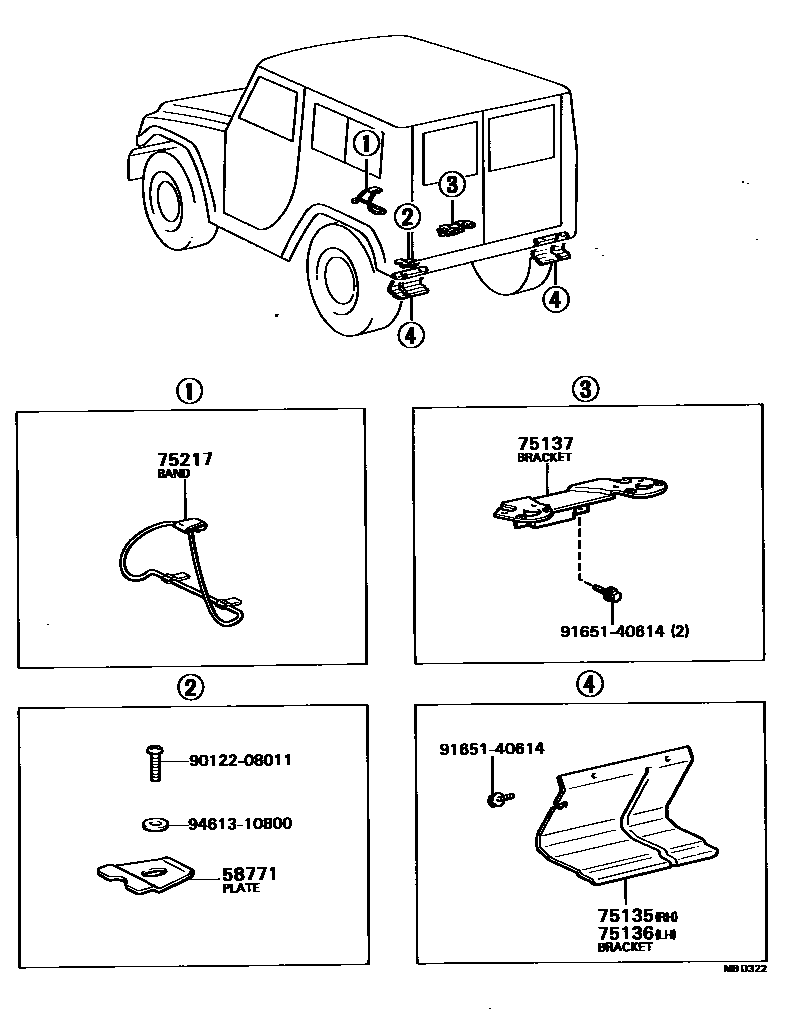

8 parts on this diagram · 1 diagram in section
