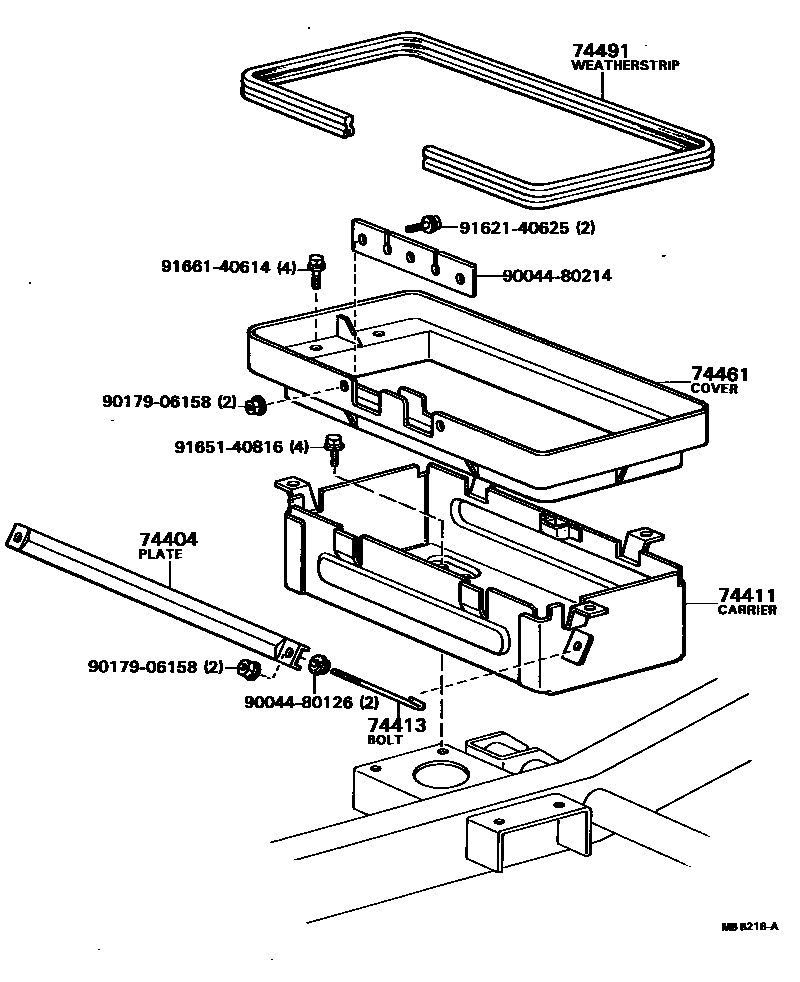

BATTERY CARRIER

74404PLATE SUB-ASSY, BATTERY SET

main74453-87309iLD10198201-198404

74411CARRIER, BATTERY

main74403-87602iLD10198201-198404

74413BOLT, BATTERY CLAMP

main74451-87603iLD10198201-198404

74461COVER, BATTERY

main74464-87601iLD10198201-198404

74491WEATHERSTRIP, BATTERY CARRIER

main55791-87603iLD10198201-198404

9004480126

main90044-80126

9004480214

main90044-80214

9017906158

main90179-06158

9162140625

main91621-40625

9165140816

main91651-40816

9166140614

main91661-40614

11 parts on this diagram · 1 diagram in section
