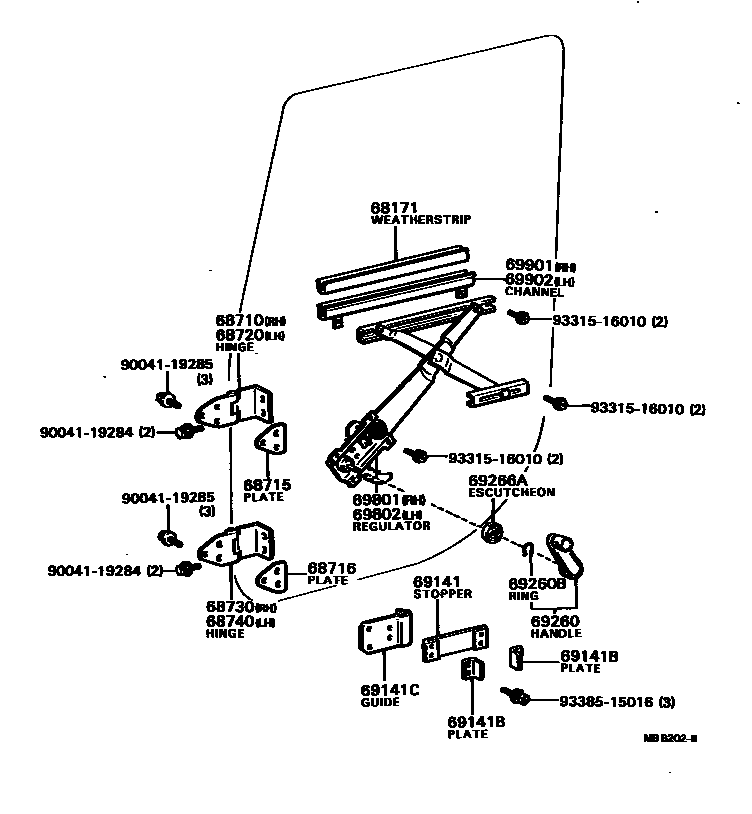

FRONT DOOR WINDOW REGULATOR & HINGE
68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
sub68171-87605
68710HINGE ASSY, FRONT DOOR, UPPER RH
68715PLATE, FRONT DOOR HINGE, UPPER
68716PLATE, FRONT DOOR HINGE, LOWER
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69141STOPPER, FRONT DOOR OPEN
69141BPLATE, DOOR CHECK OPEN STOPPER
69141CGUIDE, FRONT DOOR OPEN STOPPER
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
sub69260-16010
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
sub90520-01274
69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
9004119284
main90041-19284
9004119285
main90041-19285
9331516010
main93315-16010
9338515016
main93385-15016
21 parts on this diagram · 1 diagram in section
