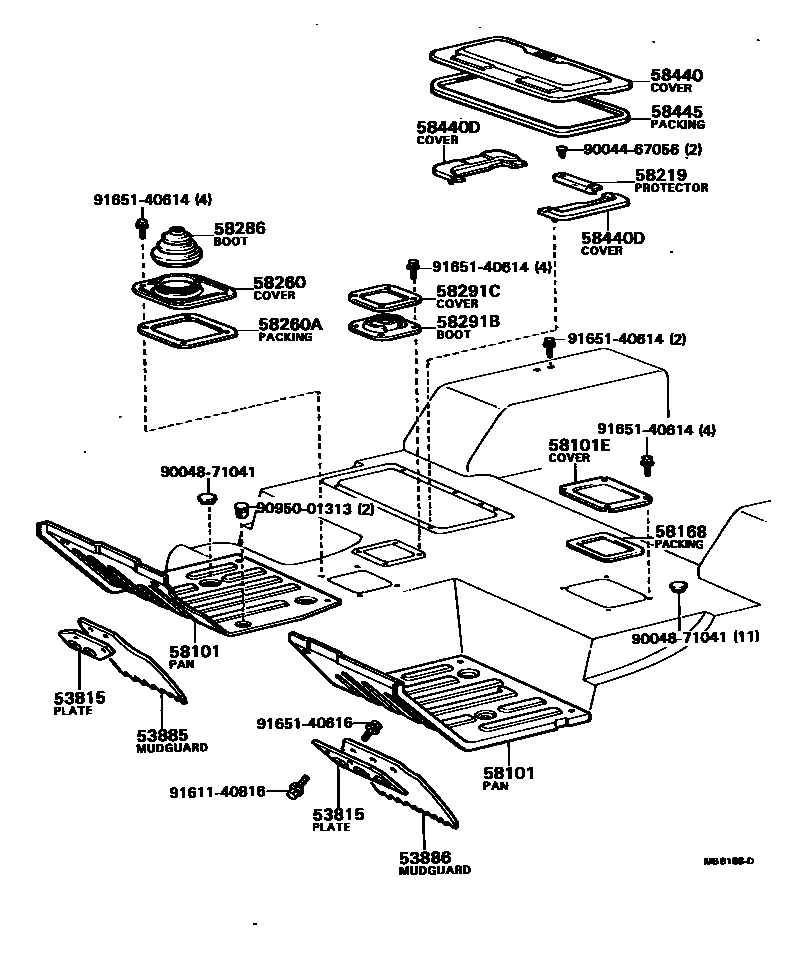

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
53815PLATE, MUDGUARD RUBBER SET, FRONT
RH
LH
53885MUDGUARD, FRONT RH
53886MUDGUARD, FRONT LH
58101PAN SUB-ASSY, FRONT FLOOR
RH
LH
58168PACKING, FUEL TANK SERVICE HOLE COVER
58219PROTECTOR, FRONT FLOOR
W/BATTERY HOLE
58260COVER ASSY, TRANSMISSION, FRONT
58260APACKING, FRONT TRANSMISSION SERVICE HOLE COVER
58286BOOT, SHIFT & SELECT LEVER, NO.1
58291BBOOT, TRANSFER SHIFT LEVER
58291CCOVER, TRANSFER SHIFT LEVER BOOT
58440COVER ASSY, BATTERY SERVICE HOLE
58440DCOVER, BATTERY HOLE, NO.2
RH
LH
58445PACKING, BATTERY SERVICE HOLE COVER
9004467056
main90044-67056
9004871041
9095001313
9161140816
9165140614
9165140616
21 parts on this diagram · 1 diagram in section
