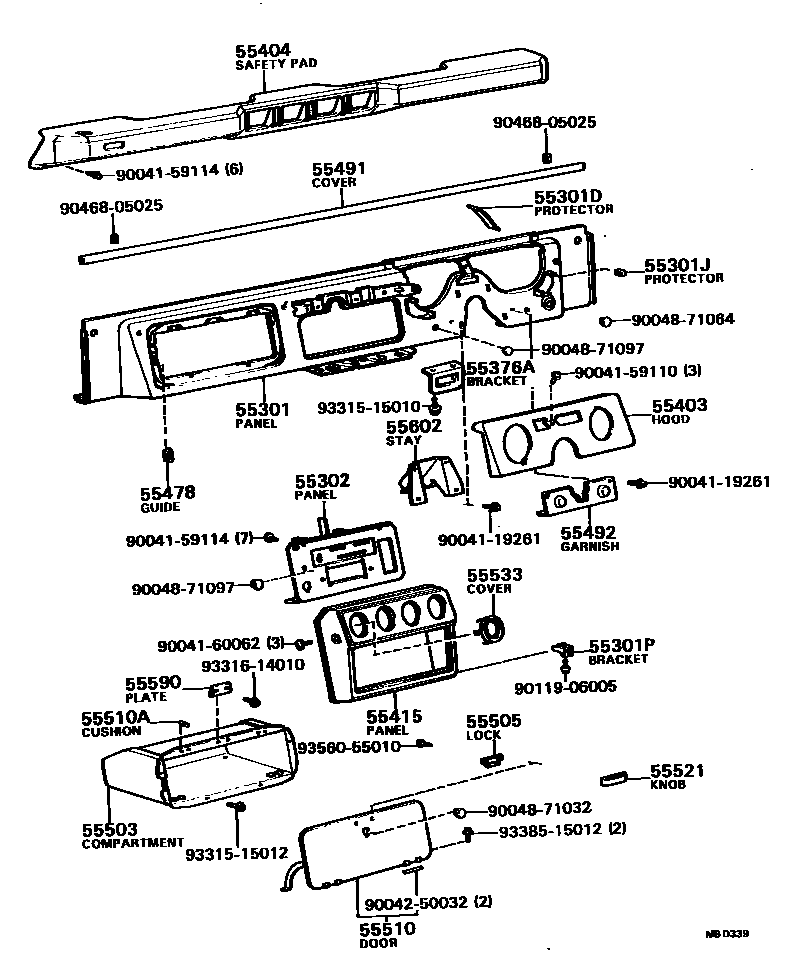

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
55301DPROTECTOR, WIRE HARNESS
55301JPROTECTOR, METER PANEL
55301PBRACKET, WIPER SWITCH
55302PANEL SUB-ASSY, CENTER CONTROL
55376ABRACKET,WARNING LAMP SET
55403HOOD SUB-ASSY, METER
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55478GUIDE, GLOVE COMPARTMENT DOOR CHECK ARM HOLE
55491COVER, INSTRUMENT PANEL, UPPER
55492GARNISH OR SAFETY PAD, LOWER, RH
55503COMPARTMENT SUB-ASSY, GLOVE
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55510DOOR ASSY, GLOVE COMPARTMENT
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55521KNOB, GLOVE COMPARTMENT DOOR
55533COVER, AUTO CLOCK HOLE
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55602STAY SUB-ASSY, STEERING COLUMN, UPPER
9004119261
main90041-19261
9004159110
main90041-59110
9004159114
main90041-59114
9004160062
main90041-60062
9004250032
main90042-50032
9004871032
main90048-71032
9004871064
main90048-71064
9004871097
main90048-71097
9011906005
main90119-06005
9046805025
main90468-05025
9331515010
main93315-15010
9331515012
main93315-15012
9331614010
main93316-14010
9338515012
main93385-15012
9356055010
main93560-55010
35 parts on this diagram · 1 diagram in section
