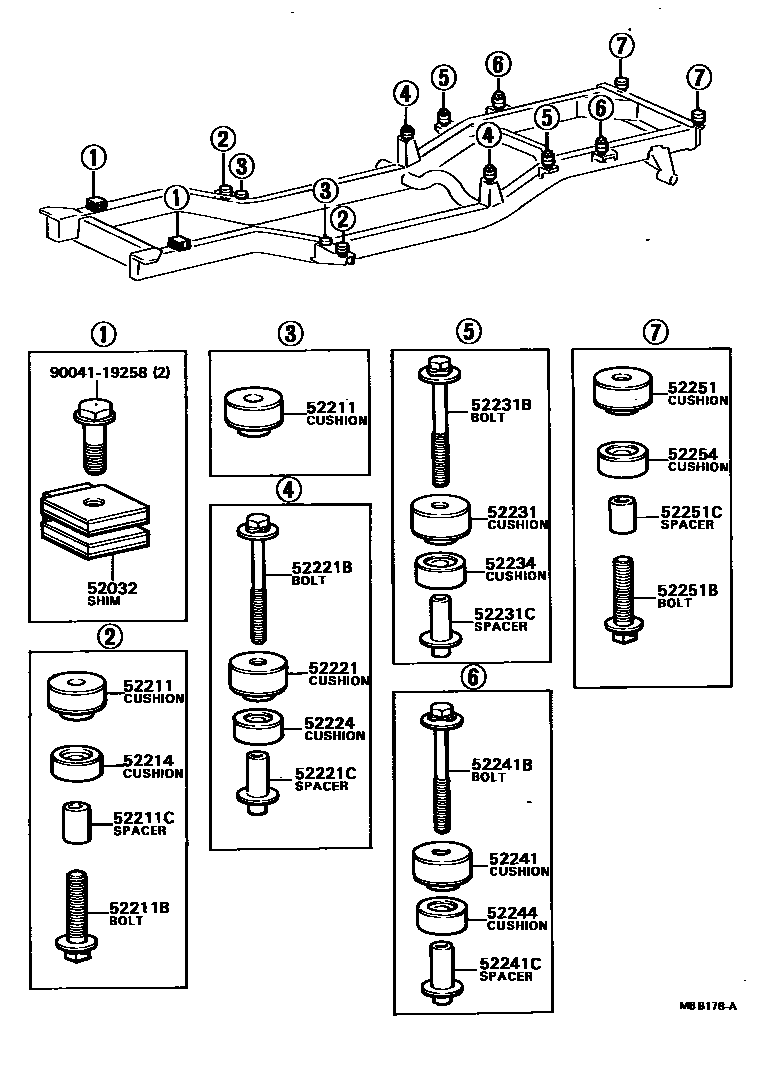

CAB MOUNTING & BODY MOUNTING
52032SHIM SUB-ASSY, COWL BODY MOUNTING
52211CUSHION, BODY MOUNTING, NO.1 UPPER
52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)
52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)
52214CUSHION, BODY MOUNT, NO.1 LOWER
52221CUSHION, BODY MOUNT, NO.2 UPPER
52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)
52221CSPACER(FOR BODY MOUNT NO.2 CUSHION)
52224CUSHION, BODY MOUNT, NO.2 LOWER
52231CUSHION, BODY MOUNT, NO.3 UPPER
52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)
52231CSPACER(FOR BODY MOUNT NO.3 CUSHION)
52234CUSHION, BODY MOUNT, NO.3 LOWER
52241CUSHION, BODY MOUNT, NO.4 UPPER
52241BBOLT(FOR BODY MOUNT NO.4 CUSHION)
52241CSPACER(FOR BODY MOUNT NO.4 CUSHION)
52244CUSHION, BODY MOUNT, NO.4 LOWER
52251CUSHION, BODY MOUNT, NO.5 UPPER
52251BBOLT(FOR BODY MOUNT NO.5 CUSHION)
52251CSPACER(FOR BODY MOUNT NO.5 CUSHION)
52254CUSHION, BODY MOUNT, NO.5 LOWER
9004119258
main90041-19258
22 parts on this diagram · 1 diagram in section
