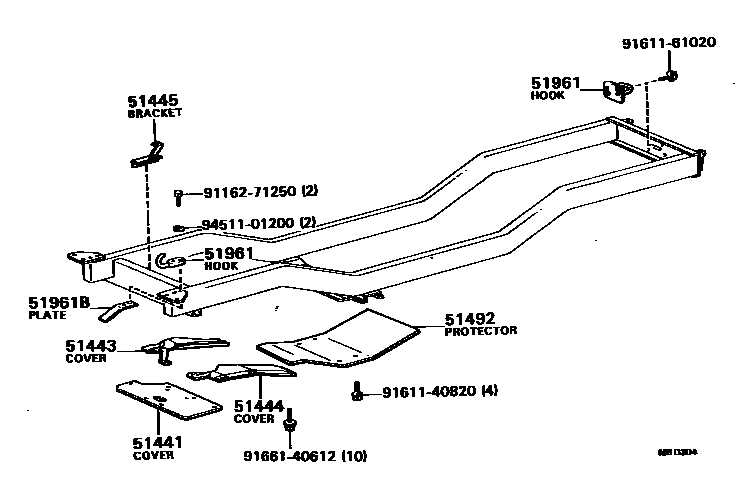

SUSPENSION CROSSMEMBER & UNDER COVER

51441COVER, ENGINE UNDER, NO.1

main51441-87607iLD10198201-198404

51443COVER, ENGINE UNDER, REAR RH

main51442-87610iLD10198201-198404

51444COVER, ENGINE UNDER, REAR LH

main51444-87617iLD10198201-198404

51445BRACKET, ENGINE UNDER COVER

main51445-87601iLD10198201-198404

51492PROTECTOR, PARKING BRAKE

main51492-87602iLD10198201-198404

51961HOOK, NO.1

main51961-60010iLD10198201-198404

FR

main51962-87601iLD10198201-198210

RR

main51965-87601iLD10198210-198404

RR

sub51965-87602

51961BPLATE, FRONT HOOK SET

main51968-87601iLD10198201-198404

9116271250

main91162-71250

9161140820

main91611-40820

9161161020

main91611-61020

9166140612

main91661-40612

9451101200

main94511-01200

12 parts on this diagram · 1 diagram in section
