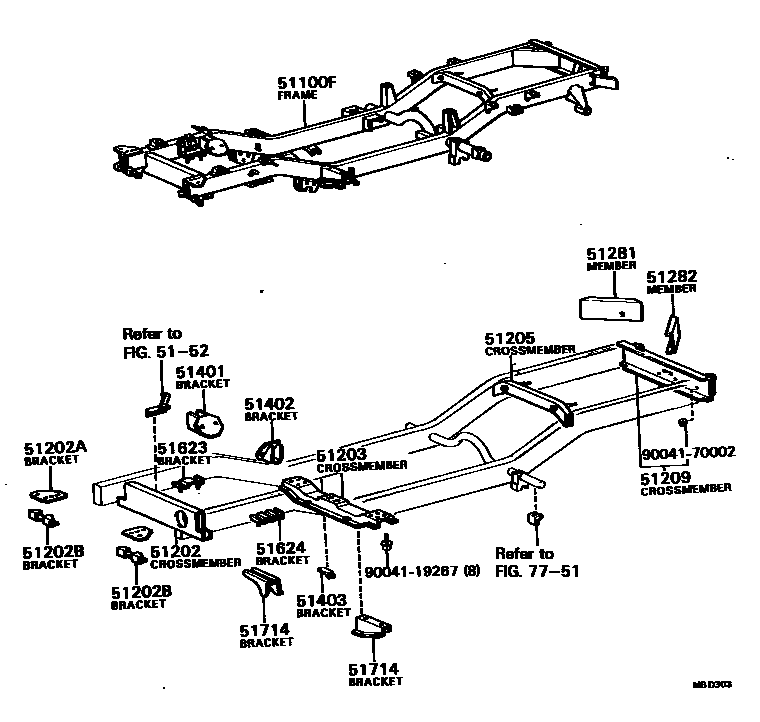

FRAME

51100FFRAME SUB-ASSY

main51002-87638iLD10198201-198210

main51002-87640iLD10198210-198404

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51211-87602iLD10198201-198404

51202ABRACKET, FRONT BUMPER, UPPER

main52114-87601iLD10198201-198404

RH

main52115-87601iLD10198201-198404

LH

51202BBRACKET, FRONT BUMPER, LOWER

main52117-87602iLD10198201-198404

RH

main52118-87602iLD10198201-198404

LH

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51221-87602iLD10198201-198404

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-87602iLD10198201-198404

51209CROSSMEMBER SUB-ASSY, FRAME, NO.8

main51209-87603iLD10198201-198404

51281MEMBER, REAR DIAGONAL, RH

main51281-87601iLD10198201-198404

51282MEMBER, REAR DIAGONAL, LH

main51282-87601iLD10198201-198404

sub51281-87601

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-87604iLD10198201-198404

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-87604iLD10198201-198404

51403BRACKET SUB-ASSY, ENGINE REAR MOUNTING

main51431-87601iLD10198201-198404

5152

51623BRACKET, FRONT SPRING BOUND STOPPER, RH

main51611-87602iLD10198201-198404

51624BRACKET, FRONT SPRING BOUND STOPPER, LH

main51612-87601iLD10198201-198404

51714BRACKET, BODY MOUNTING, NO.2

main51715-87603iLD10198201-198404

RH

main51716-87602iLD10198201-198404

LH

7751

9004119267

main90041-19267

9004170002

main90041-70002

19 parts on this diagram · 1 diagram in section
